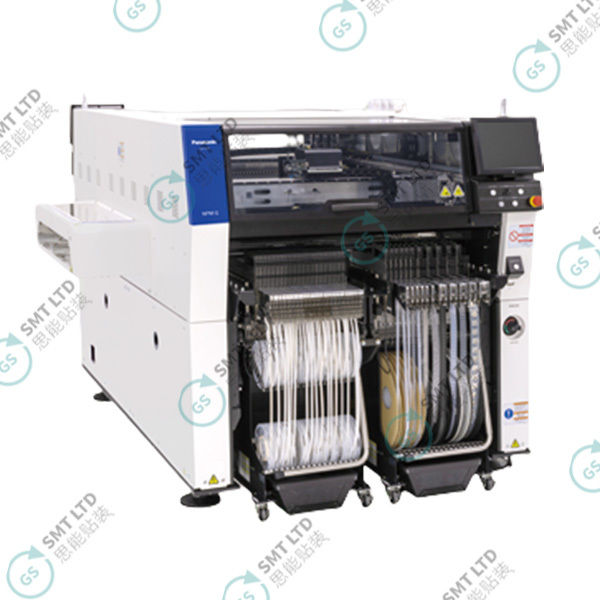

Name: Panasonic NPM-GW SMT Pick And Place Machine with ±25μm/chip Accuracy, 52000 cph Speed, and L760×W687mm PCB Compatibility
Brand: Global Soul Limited
SKU: NPM-GW
Availability: InStock

Home > Products > SMT Placement Machine >

Panasonic NPM-GW SMT Pick And Place Machine with ±25μm/chip Accuracy, 52000 cph Speed, and L760×W687mm PCB Compatibility

±25μm/chip Placement Accuracy SMT Pick And Place Machine

52000 cph Max Speed Modular Placement Machine

L760×W687mm PCB Compatibility SMT Placement Machine

Place of Origin:

Japan

Brand Name:

Panasonic

Model Number:

NPM-GW

Document:

Product Brochure PDF

Request A Quote

Product Details

Placement Accuracy (Cpk≥1):

±25μm/chip

Max.speed (per 1 Head):

52000 Cph(0.070s/chip)

Maximum PCB Dimensions(For Single Conveyor):

L760×W 687 Mm※Slide Mounting:1,050 Mm/1,260 Mm

Component Dimensions(mm):

0201chip～L120×W90×T40/T45 Or L150×W25×T40/T 45

PCB Transfer Lane:

Single/Dual

Component Supply:

Taping/Stick/Tray

Maximum Number Of Components Supply(Tape Width:4 Mm,8 Mm Calculation):

136

Number Of Heads:

Placement Heads:

16/8/3

Condition:

Used Original

Highlight:

±25μm/chip Placement Accuracy SMT Pick And Place Machine

52000 cph Max Speed Modular Placement Machine

L760×W687mm PCB Compatibility SMT Placement Machine

Payment & Shipping Terms

Minimum Order Quantity

1 PCS

Price

USD+negotiable+pcs

Packaging Details

2000*800*1200mm

Delivery Time

1-7 days

Payment Terms

T/T

Supply Ability

1+pcs+per days

Panasonic BM123 SMT Pick And Place Machine with 0.12s/chip Max Speed 50μm Placement Accuracy and 160 Double Tape Feeder

Get Best Price

Electric Steel Mesh Cleaning Machine with 25KW Power Double Liquid Tank and High Pressure Spray for SMT Cleaning

Get Best Price

SMT Cooling Temporary Storage Machine with 130℃ to 30℃/60s Cooling Range and 100011001300mm Size for 5050-550350mm PCB Boards

Get Best Price

Panasonic NPM-D3A SMT Pick And Place Machine with Dual-Lane Capability High-Speed Performance and Advanced Vision System

Get Best Price

Contact Now

Product Description

SMT Pick And Place Machines NPM-GW Modular Placement Machine

Key Features and Capabilities

Support for large components and oversized PCBs to meet growing Electric Vehicle (EV) and Digital Transformation (DX) market demands
Advanced 5M process control "APC-5M" ensuring optimal production quality and operational stability
Comprehensive automation features including Auto Setting Feeder for reduced manual intervention and labor savings

5M Process Control: Comprehensive management of production variables: huMan, Machine, Material, Method, and Measurement

Panasonic NPM-GW Modular Placement Machine Features

This modular mounter delivers enhanced performance through upgraded core components including placement heads and recognition cameras. The system offers extensive compatibility with diverse component types and supply configurations, while accommodating larger PCB sizes. Advanced automation features like the Auto Setting Feeder (ASF) streamline component supply operations, providing flexible solutions tailored to specific mounting requirements.

Technical Specifications

Supported Components Range

Maximum Speed and Placement Accuracy

Supported PCB Size Specifications

System Configuration

Configuration Layout Example

Example System Configuration

Component Supply Units

Component Supply Units Overview

Compatible with LTF Cart and ASF Cart Feeder Systems
