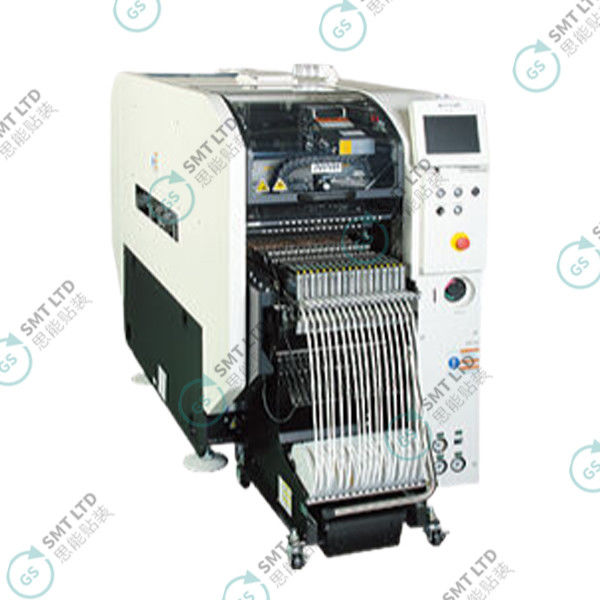

Name: Panasonic NPM-D3A SMT Pick And Place Machine with Dual-Lane Capability High-Speed Performance and Advanced Vision System
Brand: Global Soul Limited
SKU: NPM-D3A/NM-EJM6E
Availability: InStock

Home > Products > SMT Placement Machine >

Panasonic NPM-D3A SMT Pick And Place Machine with Dual-Lane Capability High-Speed Performance and Advanced Vision System

NM-EJM6E SMT Pick And Place Machines

SMT Pick And Place Machines NPM-D3A

Place of Origin:

Japan

Brand Name:

Panasonic

Model Number:

NPM-D3A/NM-EJM6E

Document:

Product Brochure PDF

Request A Quote

Panasonic NPM-D3A SMT Pick And Place Machine with Dual-Lane Capability High-Speed Performance and Advanced Vision System

Product Details

Model ID:

NPM-D3A

Model No.:

NM-EJM6E

Dual-Lane Mode:

0s* *No 0s When Cycle Time Is 3.6 S Or Less

Single-Lane Mode:

3.6s* *When Selecting Short Conveyors

Electric Source:

3-phase AC 200, 220, 380, 400, 420, 480 V 2.7 KVA

Pneumatic Source:

0.5 MPa, 100 L /min (A.N.R.)

Dimensions (mm):

W 832 × D 2,652 [*3] × H 1,444 [*4]

Mass:

1 680 Kg (Only For Main Body : This Differs Depending On The Option Configuration.)

Highlight:

NM-EJM6E SMT Pick And Place Machines

SMT Pick And Place Machines NPM-D3A

Payment & Shipping Terms

Minimum Order Quantity

1 pcs

Price

USD+negotiable+pcs

Packaging Details

1200*3000*1800mm

Delivery Time

1-7 days

Payment Terms

T/T

Supply Ability

1+pcs+per days

Panasonic BM123 SMT Pick And Place Machine with 0.12s/chip Max Speed 50μm Placement Accuracy and 160 Double Tape Feeder

Get Best Price

Electric Steel Mesh Cleaning Machine with 25KW Power Double Liquid Tank and High Pressure Spray for SMT Cleaning

Get Best Price

SMT Cooling Temporary Storage Machine with 130℃ to 30℃/60s Cooling Range and 100011001300mm Size for 5050-550350mm PCB Boards

Get Best Price

Panasonic NPM-D3A SMT Pick And Place Machine with Dual-Lane Capability High-Speed Performance and Advanced Vision System

Get Best Price

Contact Now

Product Description

NM-EJM6E SMT Pick And Place Machines Used original Panasonic NPM-D3A Machine

The Panasonic NPM-D3A (NM-EJM6E) is an advanced SMT (Surface Mount Technology) mounting machine engineered for high-volume production with exceptional speed, precision, and versatility in electronic component placement.

Key Features

High-Speed Performance: Rapid component placement for enhanced production throughput
Dual-Lane Capability: Simultaneous processing of different PCBs for increased flexibility
Advanced Vision System: Cutting-edge vision technology for precise alignment and accurate placement
Versatile Component Handling: Accommodates wide range of component sizes from tiny chips to large integrated circuits
User-Friendly Interface: Simplified controls and intuitive software for easy operation

Operational Benefits

Increased Productivity: Maximizes output with fast and reliable placement operations
Adaptability: Easily configurable for various production requirements in high-mix manufacturing
Improved Quality: Minimizes errors and defects, ensuring high-quality assembly with reduced rework

Industry Applications

The Panasonic NPM-D3A (NM-EJM6E) is ideal for consumer electronics, automotive electronics, telecommunications, and other industries where precision and speed are essential for manufacturing excellence.

Performance Summary

Combining high-speed capabilities with exceptional precision, the Panasonic NPM-D3A Mounting Machine optimizes SMT assembly processes, making it a vital asset for modern production lines seeking robust performance and adaptability.
