Name: SONY SI-F130 SMT Pick And Place Machine
Brand: Global Soul Limited
SKU: SI-F130
Availability: InStock

Home > products > SMT Placement Machine >

SONY SI-F130 SMT Pick And Place Machine

Place of Origin:

Japan

Brand Name:

SONY

Model Number:

SI-F130

Request A Quote

Product Details

Equipment Model:

SI-F130

Soldering Head:

1 Head & 12 Nozzles

Feeder Quantity:

Vision System:

Optical Recognition System

Component Size:

Max: 6mm

Soldering Accuracy:

50um (CPK 1.0 Or Above)

PCB Size:

50mm*50mm - 360mm*1200mm

Component Thickness:

0402 (01005) - 12mm IC (mobile Camera) 6mm - 25mm IC (fixed Camera)

PCB Thickness:

0.5mm To 2.6mm

Operating Environment:

Ambient Temperature 15℃~30℃, Environmental Humidity 30%~70% (no Condensation Allowed)

Working Noise:

35-65 Decibels

Correction Method:

Machine Vision System, Multi-point MARK Vision Correction

Drive System:

AC Servo, AC Motor

Data Transmission:

USB Interface Input (EXCEL Document Format)

Operating System:

Chinese, English, Japanese Interface (WINDOWS System Control Platform)

Control Mode:

Fully Automatic

Soldering Speed:

0.139 Seconds (25900 CPH)

Equipment Dimensions (W*D*H):

1220mm X 1400mm X 1545mm

Equipment Weight:

1560KG

Payment & Shipping Terms

Minimum Order Quantity

1 PCS

Price

USD+negotiable+pcs

Packaging Details

1500mm*1600mm*1750mm

Delivery Time

1-7 days

Payment Terms

T/T

Supply Ability

1+pcs+per days

SMT Pick And Place Machines Sony SI-F209

Get Best Price

Video

SMT Pick And Place Machines NPM-GW Modular Placement Machine

Get Best Price

Video

3 Phase AC 200V SMT Pick And Place Machines Panasonic RG131 NM-EJR3A NM-EJR4A

Get Best Price

Video

Chip Capacitor Resistor X-ray Counter Machine DS3000 with 800W Aggregate Capacity

Get Best Price

86-0755-27678283

Contact Now

Product Description

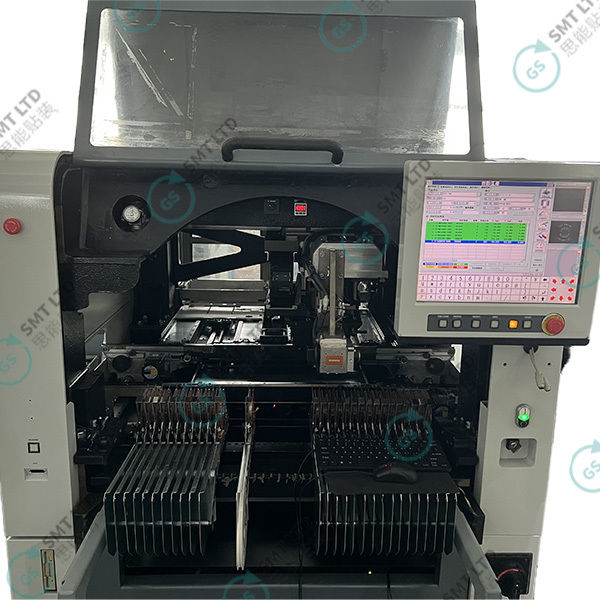

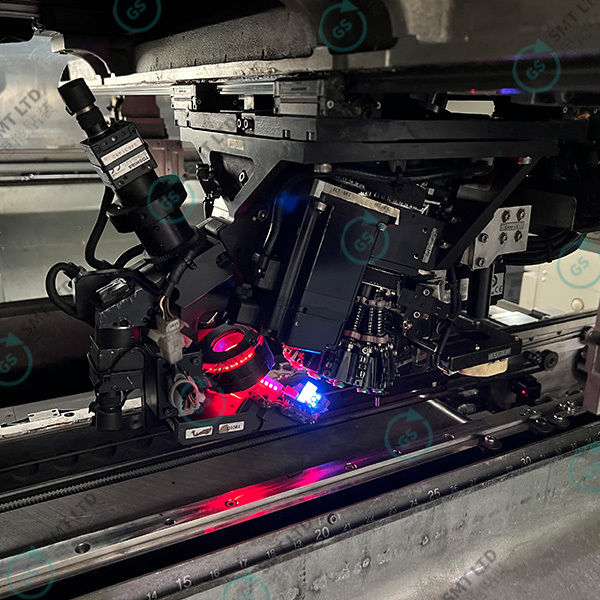

Equipment Introduction: The SONY 130 series surface mounters come in three models: F130, F130AI, and F130WK, the classic models, which are of high quality. The speed can reach: 25,900 CPH (0.139S/chip) (SI-F130), using a CCD camera to identify components, with a unique image recognition system. SONY surface mounters, the globally unique planetary type mounting head, is fast and has high accuracy, improving the actual production efficiency. The globally unique rotating planetary type mounting head, with 12 suction nozzles, is fast and can achieve an actual output of up to 25,900 CPH/h. It is suitable for high-speed surface mounting of 1.2-meter LED light beads, the LED light bead surface mounting tool. F130 has a small footprint, low power consumption and air consumption, and low noise. The CCD camera identifies components, with a unique image recognition system, accurate positioning and high mounting accuracy.
