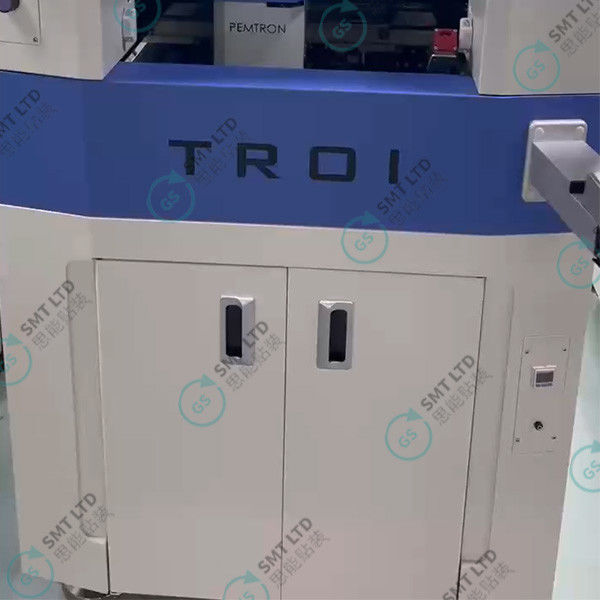

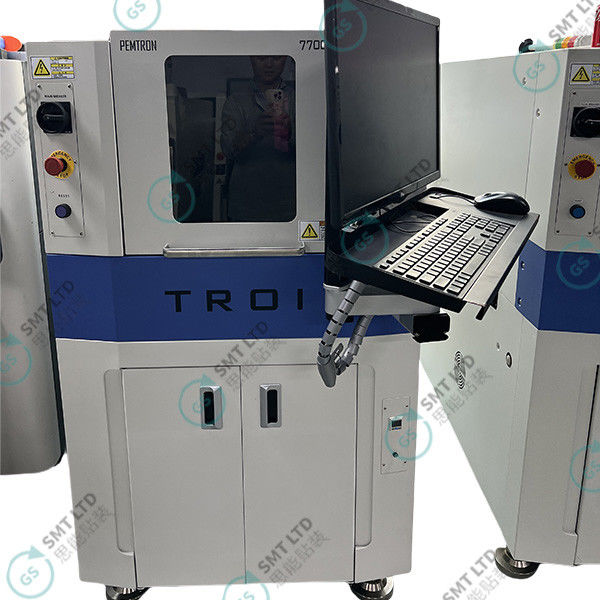

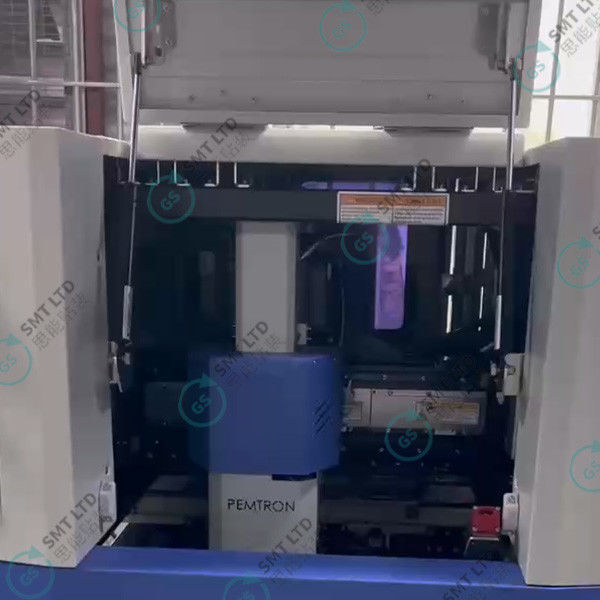

Name: TRO1-7000HL Conformal Coating Inspection System with True Color 3D Image Self-Developed Gerber Editor and Patented Colorxy Technology
Brand: Global Soul Limited
SKU: TRO1-7000HL
Availability: InStock

Home > Products > SMT Placement Machine >

TRO1-7000HL Conformal Coating Inspection System with True Color 3D Image Self-Developed Gerber Editor and Patented Colorxy Technology

True Color 3D Image Conformal Coating Inspection System

Self-Developed Gerber Editor SMT Inspection System

Patented Colorxy Technology Coating Inspection Machine

Place of Origin:

Korea

Brand Name:

Pentron

Model Number:

TRO1-7000HL

Document:

Product Brochure PDF

Request A Quote

TRO1-7000HL Conformal Coating Inspection System with True Color 3D Image Self-Developed Gerber Editor and Patented Colorxy Technology

Product Details

Product Name:

Conformal Coating Inspection System

Model Name:

TRO1-7000HL

Serial Number:

P7HL17-057

Power Consumption:

2.4kW

Full Load Current:

11Amp

Voltage:

220~240Vac,1Phase,50/60Hz

Pneumatic Pressure:

0.4~0.5Mpa

Machine Size(mm):

1170x1895x1550

Weight:

820Kg

Manufactured Date:

2018.03.22

Highlight:

True Color 3D Image Conformal Coating Inspection System

Self-Developed Gerber Editor SMT Inspection System

Patented Colorxy Technology Coating Inspection Machine

Payment & Shipping Terms

Minimum Order Quantity

1 PCS

Price

USD+negotiable+pcs

Packaging Details

1200*2000*1650mm

Delivery Time

1-7 days

Payment Terms

T/T

Supply Ability

1+pcs+per days

Panasonic BM123 SMT Pick And Place Machine with 0.12s/chip Max Speed 50μm Placement Accuracy and 160 Double Tape Feeder

Get Best Price

Electric Steel Mesh Cleaning Machine with 25KW Power Double Liquid Tank and High Pressure Spray for SMT Cleaning

Get Best Price

SMT Cooling Temporary Storage Machine with 130℃ to 30℃/60s Cooling Range and 100011001300mm Size for 5050-550350mm PCB Boards

Get Best Price

Panasonic NPM-D3A SMT Pick And Place Machine with Dual-Lane Capability High-Speed Performance and Advanced Vision System

Get Best Price

Contact Now

Product Description

TRO1-7000HL Conformal Coating Inspection System

System Overview

Advanced inspection system featuring intuitive operation and cutting-edge imaging technology for precise conformal coating analysis.

Key Features

Simple and clear user interface designed for ease of use
Self-developed gerber editor with straightforward programming
Unified interface displaying all common functions
Eliminates multiple interface switching for streamlined workflow
Suitable for operators of any skill level

Advanced Imaging Technology

True Color Three-Dimensional Imaging

While conventional SPI systems typically calculate height above screen print, Pemtron's patented Colorxy technology enables easy distinction of copper foil, ensuring accurate zero datum identification. The true color 3D image can be viewed from any angle, providing users with clear, vivid visualization of solder paste patterns and eliminating the need for repeated microscope confirmation.
