High Speed Compact SMT Pick And Place Machine RX-7R with Dual Lane Conveyor for PCB Assembly

High Speed Compact SMT Pick And Place Machine RX-7R with Dual Lane Conveyor for PCB Assembly

Pick And Place Machine RX-7R

3 Phase SMT Placement Equipment

SMT Pick And Place Machine AC200V

Place of Origin:

Japan

Brand Name:

JUKI

Model Number:

RX-7R

Document:

Product Brochure PDF

Contact Us
Request A Quote
High Speed Compact SMT Pick And Place Machine RX-7R with Dual Lane Conveyor for PCB Assembly
High Speed Compact SMT Pick And Place Machine RX-7R with Dual Lane Conveyor for PCB Assembly High Speed Compact SMT Pick And Place Machine RX-7R with Dual Lane Conveyor for PCB Assembly High Speed Compact SMT Pick And Place Machine RX-7R with Dual Lane Conveyor for PCB Assembly High Speed Compact SMT Pick And Place Machine RX-7R with Dual Lane Conveyor for PCB Assembly High Speed Compact SMT Pick And Place Machine RX-7R with Dual Lane Conveyor for PCB Assembly
Product Details
Model Number:
RX-7R
Feeder Capacity:
Up To 56
Power Supply:
3 Phase AC200V,220V-430V
Apparent Power:
2.3kVA
Operating Air Pressure:
0.5±0.05MPa
Air Consumption (standard):
20L/ANR(during Normal Operation)
Machine Dimensions (W X D X H):
998×1,895×1,530mm
Mass (approximately):
About 1,820kg
Highlight:

Pick And Place Machine RX-7R

,

3 Phase SMT Placement Equipment

,

SMT Pick And Place Machine AC200V

Payment & Shipping Terms
Minimum Order Quantity
1 PCS
Price
USD+negotiable+pcs
Packaging Details
1100*2000*1600mm
Delivery Time
1-7 days
Payment Terms
T/T
Supply Ability
1+pcs+per days
RELATED PRODUCTS
Good price Panasonic BM123 SMT Pick And Place Machine with 0.12s/chip Max Speed 50μm Placement Accuracy and 160 Double Tape Feeder online

Panasonic BM123 SMT Pick And Place Machine with 0.12s/chip Max Speed 50μm Placement Accuracy and 160 Double Tape Feeder

Get Best Price
Good price Electric Steel Mesh Cleaning Machine with 25KW Power Double Liquid Tank and High Pressure Spray for SMT Cleaning online

Electric Steel Mesh Cleaning Machine with 25KW Power Double Liquid Tank and High Pressure Spray for SMT Cleaning

Get Best Price
Good price SMT Cooling Temporary Storage Machine with 130℃ to 30℃/60s Cooling Range and 1000*1100*1300mm Size for 50*50-550*350mm PCB Boards online

SMT Cooling Temporary Storage Machine with 130℃ to 30℃/60s Cooling Range and 1000*1100*1300mm Size for 50*50-550*350mm PCB Boards

Get Best Price
Good price Panasonic NPM-D3A SMT Pick And Place Machine with Dual-Lane Capability High-Speed Performance and Advanced Vision System online

Panasonic NPM-D3A SMT Pick And Place Machine with Dual-Lane Capability High-Speed Performance and Advanced Vision System

Get Best Price
CONTACT US
Contact Now
Product Description

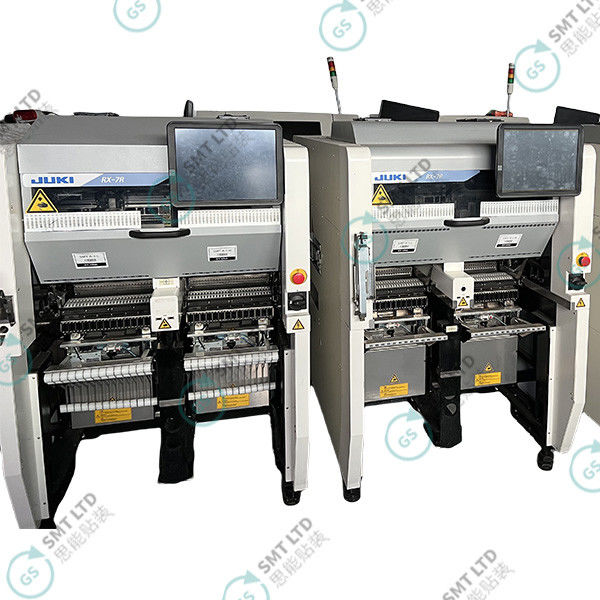

High Speed SMT Pick And Place Machine RX-7R Compact 3 Phase AC200V
Advanced SMT Pick and Place System
The RX-7R Compact High-Speed Mounter represents the latest evolution in Juki's SMT mounting technology, featuring significant upgrades to PCB handling flexibility and placement accuracy through an innovative placement head design.
Key System Features
  • Enhanced dual lane conveyor system supporting larger PCB sizes

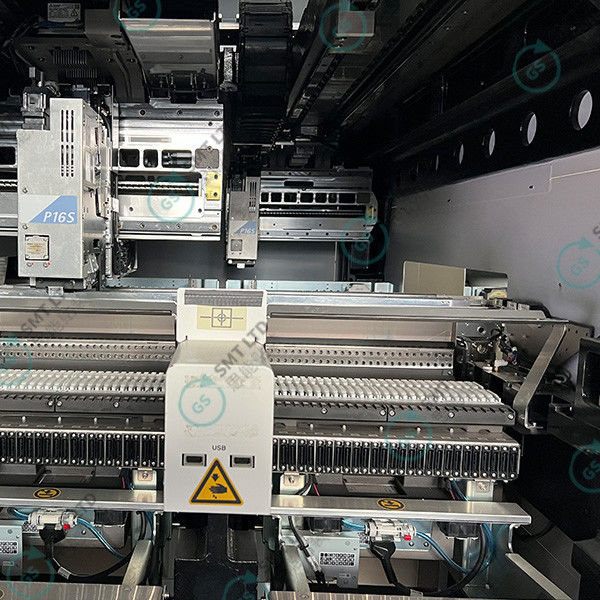

  • New P16S placement head with improved axial design for superior angular accuracy
  • Compact footprint maintaining production line efficiency
  • Compatible with Juki RS-1 flexible mounter for complete production line integration
Enhanced PCB Handling Capability
The upgraded dual lane conveyor system now accommodates two L-size PCBs (420 x 450mm), a significant improvement over previous models that supported only two M-sized boards (250mm x 330mm). This expanded capability is achieved while maintaining the same compact machine dimensions, allowing for shorter production lines when combined with the Juki RS-1 flexible mounter.
Precision Placement Technology

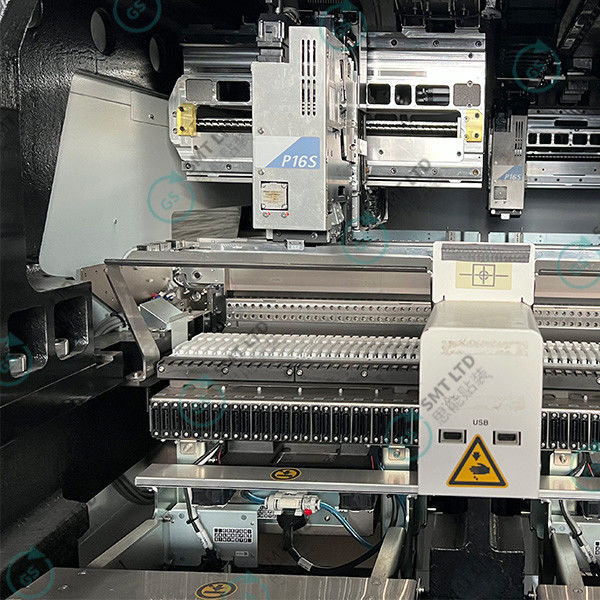

The innovative P16S placement head features a new axial design that dramatically increases angular placement accuracy. This advancement is particularly beneficial for LED board applications, which are experiencing substantial growth in modern electronics manufacturing.
Configuration Options
The RX-7R offers flexible configuration options including fixed feeder banks or feeder trolleys, with conveyor choices for dual or single lane operation to match specific production requirements.
Juki Smart Solutions Integration
Continuing Juki's commitment to innovation, the RX-7R embodies the evolution of Smart Solutions technology, delivering improved flexibility and capability while providing comprehensive Total Line Solutions for today's demanding SMT production environments.
