Name: MIRTEC MV-6E OMNI 3D AOI Machine with High Precision 3D Detection and 8-Segment Color Lighting for SMT Placement
Brand: Global Soul Limited
SKU: MV-6E (OMNI)
Availability: InStock

Home > Products > SMT Placement Machine >

MIRTEC MV-6E OMNI 3D AOI Machine with High Precision 3D Detection and 8-Segment Color Lighting for SMT Placement

OMNI SMT Placement Machine

MIRTEC SMT Placement Machine

MV-6E SMT Placement Machine

Place of Origin:

Korea

Brand Name:

MIRTEC

Model Number:

MV-6E (OMNI)

Document:

Product Brochure PDF

Request A Quote

MIRTEC MV-6E OMNI 3D AOI Machine with High Precision 3D Detection and 8-Segment Color Lighting for SMT Placement

Product Details

Model:

MV-6E (OMNI)

PCB Size:

50mm×50mm~480mm×460mm

Height Accuracy:

±3um

Maximum Component Height:

5mm

2D Detection Items:

Missing Piece, Offset, Skew, Stellation, Side Stand, Turn Over Piece, Polar Reverse, Wrong Piece, Damage, Tin, Virtual Welding, Cavity, OCR

3D Detection Items:

Missing Parts, Height, Position, More Tin, Less Tin, Missing Welding, Double Chip, Size, IC Foot Virtual Welding, Foreign Matter, Parts Cocking, BGA Cocking, Climbing Tin Detection, Etc

FOV Field Of View:

58.56mm×58.56mm

3D Detection Speed:

0.80 Seconds /FOV/4.260mm²/ Second

2D Detection Speed:

0.30 Seconds /FOV/ 10,716 Mm²/ Second

Lens:

Accurate Telecentric Composite Lens

Lighting System:

8-segment Color Lighting System

SPC:

Complete Statistical Software

PCB Clearance:

45mm

PCB Thickness:

0.5~5mm

Minimum Measurement Size:

03015

Positioning System:

Servo Motor

Repeatability:

±10um

3D Detection Technology:

DVLP 8-group Moorfringe Technology

Appearance Size:

1080 (W) ×1470 (D) 1560 (H)

Weight:

950KG

Air Source:

5KGf/cm² (0.5Mpa)

Power Supply:

200-240VAC 50Hz/60Hz

Highlight:

OMNI SMT Placement Machine

MIRTEC SMT Placement Machine

MV-6E SMT Placement Machine

Payment & Shipping Terms

Minimum Order Quantity

1 PCS

Price

USD+negotiable+pcs

Packaging Details

1180mm*1570mm*1660mm

Delivery Time

1-7 days

Payment Terms

T/T

Supply Ability

1+pcs+per days

Panasonic BM123 SMT Pick And Place Machine with 0.12s/chip Max Speed 50μm Placement Accuracy and 160 Double Tape Feeder

Get Best Price

Electric Steel Mesh Cleaning Machine with 25KW Power Double Liquid Tank and High Pressure Spray for SMT Cleaning

Get Best Price

SMT Cooling Temporary Storage Machine with 130℃ to 30℃/60s Cooling Range and 100011001300mm Size for 5050-550350mm PCB Boards

Get Best Price

Panasonic NPM-D3A SMT Pick And Place Machine with Dual-Lane Capability High-Speed Performance and Advanced Vision System

Get Best Price

Contact Now

Product Description

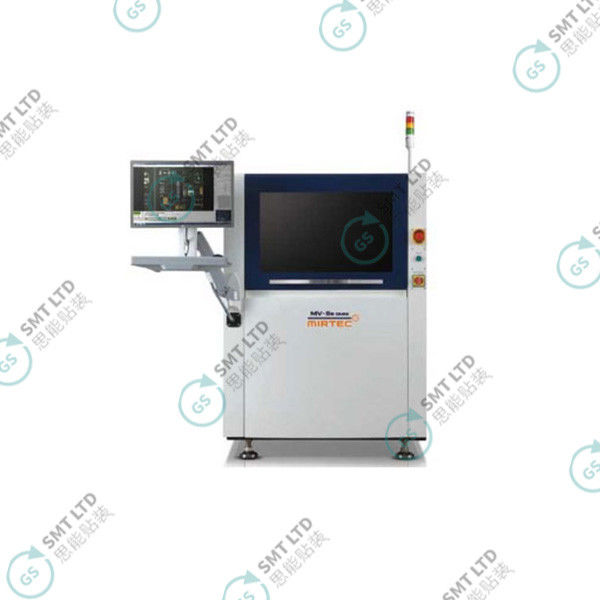

MIRTEC 3D AOI MV-6E OMNI SMT Placement Machine

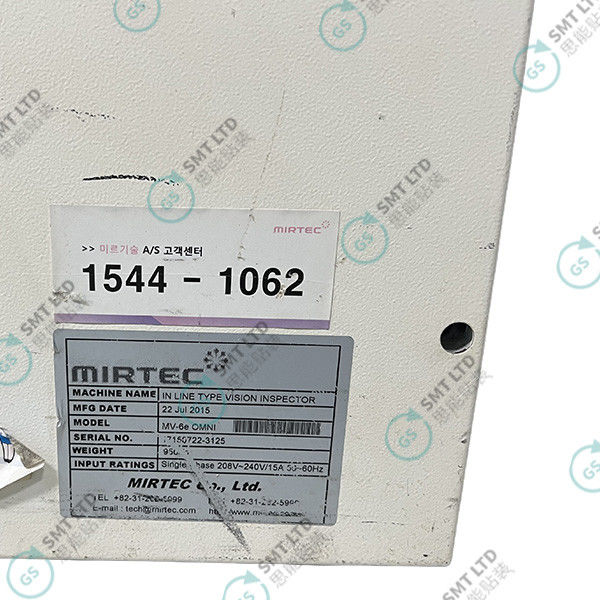

The MIRTEC MV-6E OMNI is a high-performance 3D automated optical inspection system designed for comprehensive PCB assembly verification with 50Hz/60Hz operation capability.

Powerful Inspection Capabilities

100% testing of all materials on the PCB
Complete detection of characters or screen prints on mobile phone glass chips
Full inspection of PCBA coated with three anti-coating paint

Advanced Defect Detection

Missing components
Component offset and misalignment
Standing tablets and side standing
Solder issues (excess or insufficient)
Height measurement
IC pin welding verification
Component warping detection
BGA warping analysis

Technical Specifications

Appearance Dimensions	1080mm * 1470mm * 1560mm (WDH)
Camera Resolution	15-megapixel high-resolution camera
Lighting System	8 sets of moiré stripe light
Operation Frequency	50Hz/60Hz

The Korean MIRTEC MV-6E (OMNI) represents a complete 3D online optical inspection solution with advanced imaging technology for superior manufacturing quality control.
