Name: SJ INNO TECH HP-520S - SCREEN PRINTER WITH 2D SPI
Brand: Global Soul Limited
SKU: HP-520S
Availability: InStock

Home > products > SMT Placement Machine >

SJ INNO TECH HP-520S - SCREEN PRINTER WITH 2D SPI

Place of Origin:

KOREA

Brand Name:

SJ INNO TECH

Model Number:

HP-520S

Request A Quote

Product Details

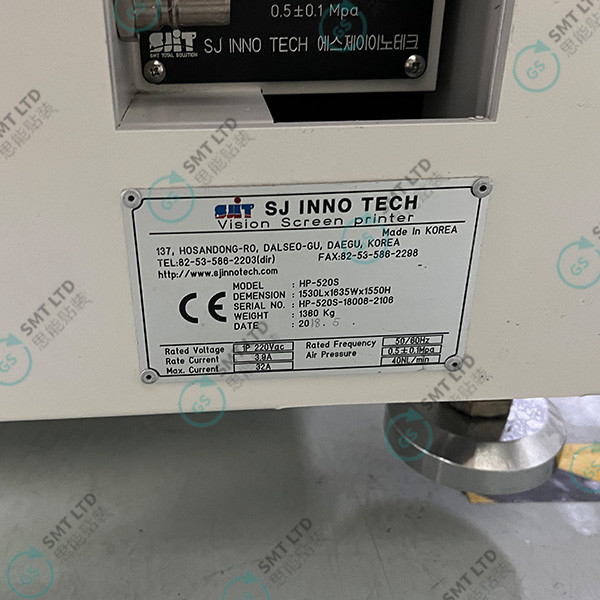

MODEL:

HP-520S

DEMENSI0N:

1530Lx1635W×1550H

SERIAL N0.:

HP-520S-18006-2106

WEIGHT:

1360 Kg

DATE:

2018.5

Rated Voltage:

1P 220Vac

Rated Frequency:

50/60Hz

Rate Current:

3.9A

Air Pressure:

0.5±0.1Mpa, 40NL/min

Max. Current:

32A

Payment & Shipping Terms

Minimum Order Quantity

1 PCS

Price

USD+negotiable+pcs

Packaging Details

1600*1700*1650

Delivery Time

1-7 days

Payment Terms

T/T

Supply Ability

1+pcs+per days

High Speed YAMAHA SMT Pick And Place Machines Used Original YSM20R

Get Best Price

YS12F Used Origianl YAMAHA SMT Pick And Place Machines KKJ-000

Get Best Price

Used Original Yamaha YCP10 SMT Electronics Pick And Place Machine

Get Best Price

NM-EJM6E SMT Pick And Place Machines Used original Panasonic NPM-D3A Machine

Get Best Price

86-0755-27678283

Contact Now

Product Description

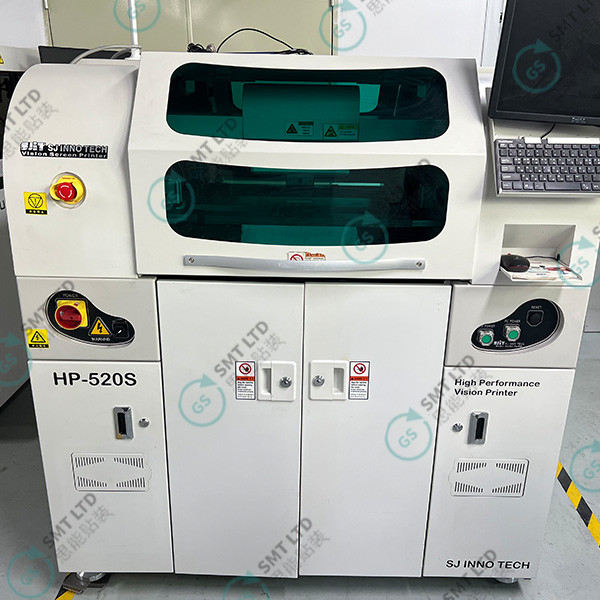

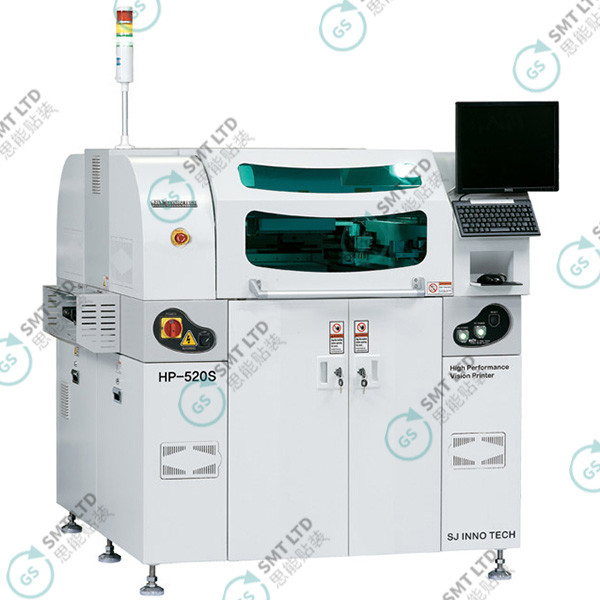

SJ INNO TECH HP-520S - SCREEN PRINTER WITH 2D SPI DESCRIPTION:
Advanced Solder Paste Printer with 2D SPI On-Board.
AUTO SCREEN PRINTERS WITH ADVANCED VISION SYSTEM FOR ALL PCB TYPES.
1. Standard Features Include:
2. 2D Solder Paste Inspection
3. 3 Stage Automatic Conveyor
4. Under Stencil Cleaning
5. Full Process Control
6. Programmable Squeegee Pressure (5 front, 5 back)
The Advanced Vision System (standard) inspects all shaped fiducials and incorporates multi-color lighting for all PCB types and colors. This system also includes 2D Solder Paste Inspection for built-in quality assurance.

A unique PCB Top Link Edge Clamping System provides a completely smooth surface between the PCB and stencil.

The Cleaning System has blow, two vacuum ports, cleaning dispense, and is programmable to advance paper during cleaning.
