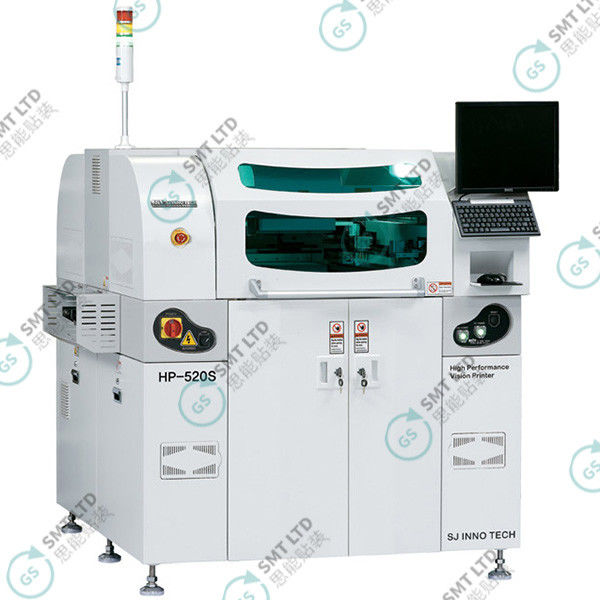

Name: SJ INNO TECH HP-520S Screen Printer with 2D SPI and Advanced Vision System Featuring Programmable Squeegee Pressure
Brand: Global Soul Limited
SKU: HP-520S
Availability: InStock

Home > Products > SMT Placement Machine >

SJ INNO TECH HP-520S Screen Printer with 2D SPI and Advanced Vision System Featuring Programmable Squeegee Pressure

2D SPI Screen Printer

Advanced Vision System Solder Paste Printer

Programmable Squeegee Pressure SMT Printer

Place of Origin:

KOREA

Brand Name:

SJ INNO TECH

Model Number:

HP-520S

Document:

Product Brochure PDF

Request A Quote

SJ INNO TECH HP-520S Screen Printer with 2D SPI and Advanced Vision System Featuring Programmable Squeegee Pressure

Product Details

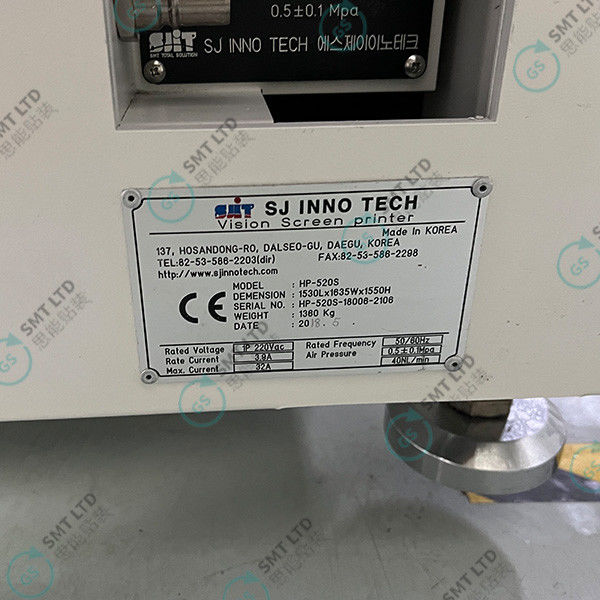

MODEL:

HP-520S

DEMENSI0N:

1530Lx1635W×1550H

SERIAL N0.:

HP-520S-18006-2106

WEIGHT:

1360 Kg

DATE:

2018.5

Rated Voltage:

1P 220Vac

Rated Frequency:

50/60Hz

Rate Current:

3.9A

Air Pressure:

0.5±0.1Mpa, 40NL/min

Max. Current:

32A

Highlight:

2D SPI Screen Printer

Advanced Vision System Solder Paste Printer

Programmable Squeegee Pressure SMT Printer

Payment & Shipping Terms

Minimum Order Quantity

1 PCS

Price

USD+negotiable+pcs

Packaging Details

1600*1700*1650

Delivery Time

1-7 days

Payment Terms

T/T

Supply Ability

1+pcs+per days

Panasonic BM123 SMT Pick And Place Machine with 0.12s/chip Max Speed 50μm Placement Accuracy and 160 Double Tape Feeder

Get Best Price

Electric Steel Mesh Cleaning Machine with 25KW Power Double Liquid Tank and High Pressure Spray for SMT Cleaning

Get Best Price

SMT Cooling Temporary Storage Machine with 130℃ to 30℃/60s Cooling Range and 100011001300mm Size for 5050-550350mm PCB Boards

Get Best Price

Panasonic NPM-D3A SMT Pick And Place Machine with Dual-Lane Capability High-Speed Performance and Advanced Vision System

Get Best Price

Contact Now

Product Description

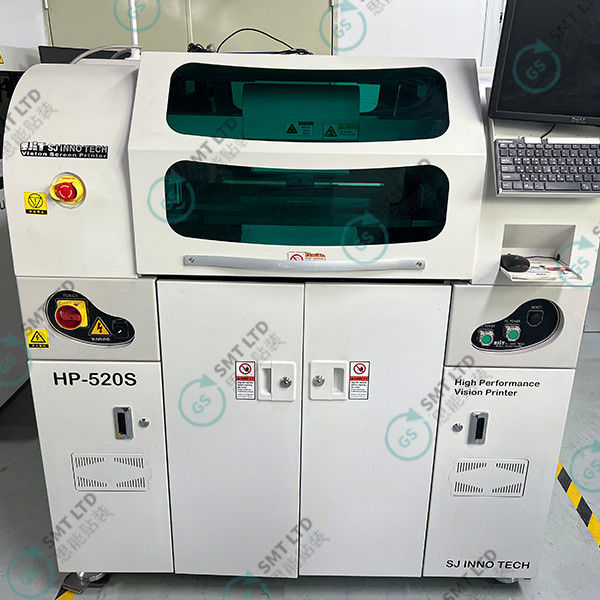

SJ INNO TECH HP-520S - Screen Printer with 2D SPI

Advanced Solder Paste Printer with integrated 2D Solder Paste Inspection system for comprehensive PCB assembly quality control.

Key Features

2D Solder Paste Inspection (SPI) system
3-stage automatic conveyor system
Automatic under stencil cleaning
Complete process control capabilities
Programmable squeegee pressure (5 front, 5 back settings)

Advanced Vision System

The standard advanced vision system inspects all shaped fiducials and incorporates multi-color lighting technology suitable for all PCB types and colors. This integrated system includes 2D Solder Paste Inspection for built-in quality assurance throughout the printing process.

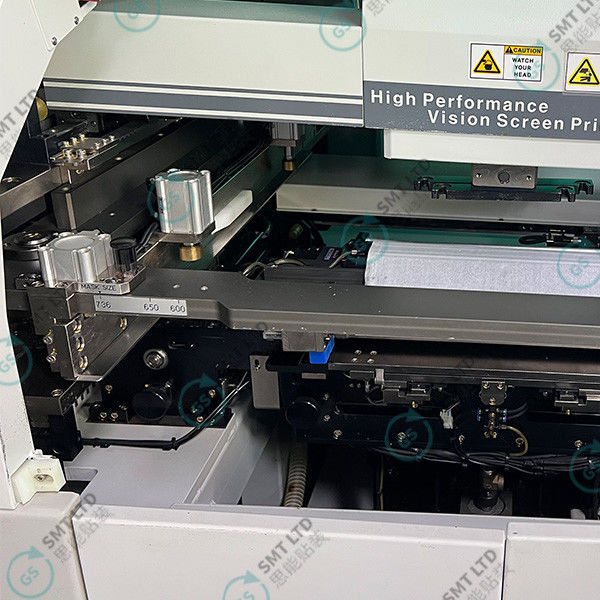

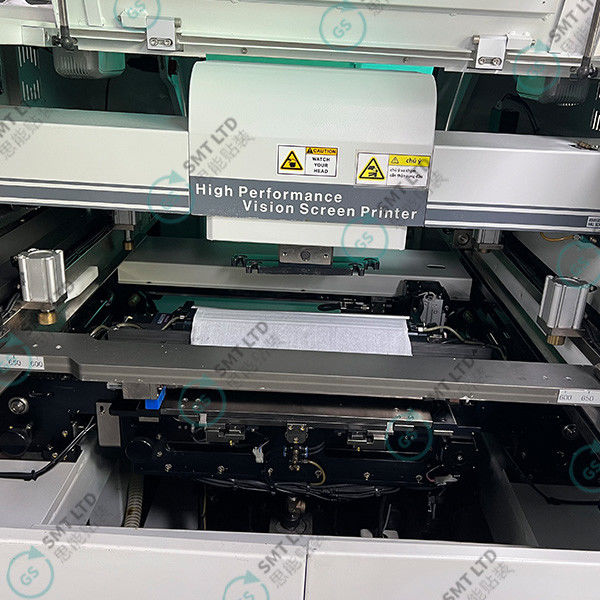

PCB Clamping Technology

Unique PCB Top Link Edge Clamping System ensures a completely smooth surface between the PCB and stencil, providing superior printing accuracy and consistency.

Cleaning System

Comprehensive cleaning system features blow function, dual vacuum ports, cleaning dispense mechanism, and programmable paper advance during cleaning cycles for optimal stencil maintenance.

Application: Designed for automated screen printing applications across all PCB types with integrated quality inspection capabilities.
