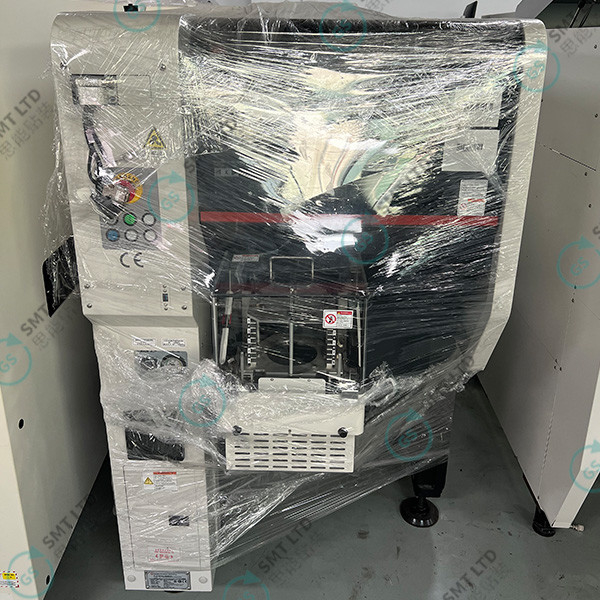

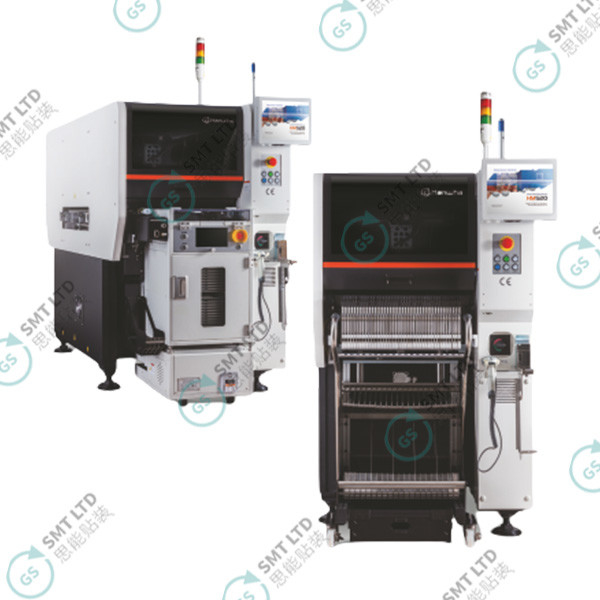

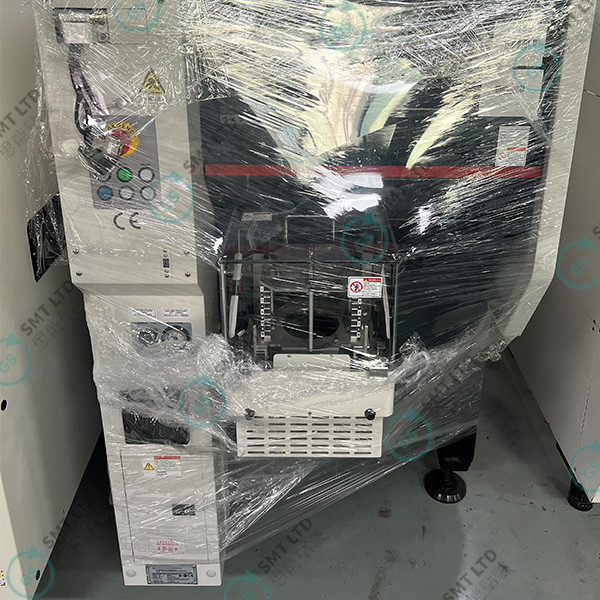

Hanwha Pick And Place Machine HM520h High Speed Mini LED Placement Machine

Hanwha Pick And Place Machine HM520h High Speed Mini LED Machine

High productivity
一, Optimization of Mini LED Production
This is a highly precise equipment that uses 20 Spindle Rotary Head and can produce Mini LEDs with a size of 0.2x0.1mm. The Wafer Handling Unit is utilized to achieve a maximum production capacity of 65,000 CPH.

二, High-speed and High-precision LED Ejecting
The ejector is precisely controlled by a lightweight and high-precision motor along the X/Y/Z axes. When the suction nozzle at the head sucks the LED, the ejector moves along the X/Y/Z axes and supports the LED bottom surface of the Wafer.

三, Optimizing the Supply of Mini LED (Hoof Ring + Reel Feeder)
This is a device that can use both Hoof Ring WaferType and Reel Feeder simultaneously. There are 4 Feeder Slots in the Reel Feeder.
It is equipped with a Reel Cutter, making it easy to manage the discarded round material discs.

※ Reel Feeder: Option
