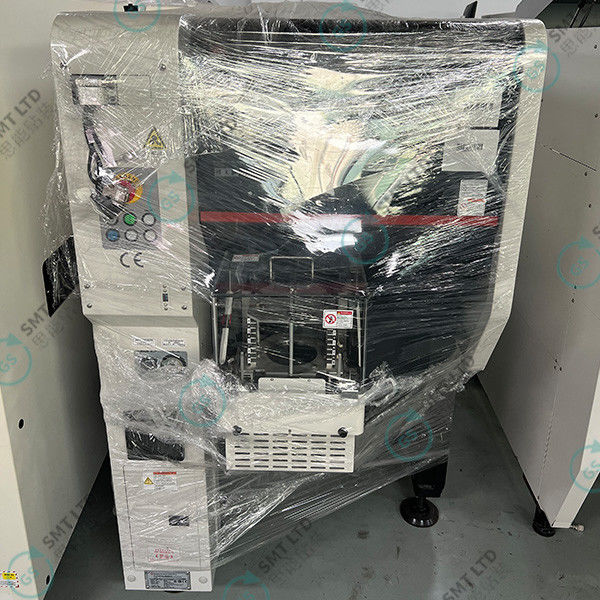

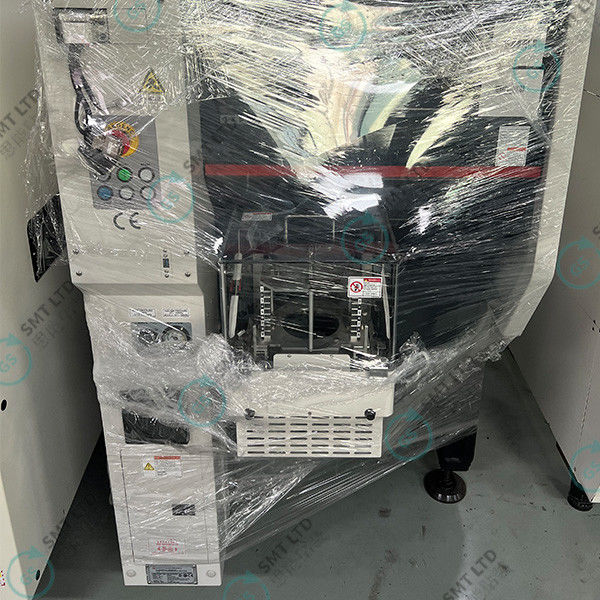

Hanwha Pick And Place Machine HM520h High Speed Mini LED Placement Machine
High Productivity Mini LED Production Optimization
The HM520h is a highly precise equipment featuring a 20 Spindle Rotary Head capable of handling Mini LEDs as small as 0.2x0.1mm. Utilizing the Wafer Handling Unit, this machine achieves maximum production capacity of 65,000 CPH.
High-Speed and High-Precision LED Ejecting System
The ejector is precisely controlled by a lightweight, high-precision motor along the X/Y/Z axes. When the suction nozzle at the head picks up the LED, the ejector moves along these axes to support the LED bottom surface of the Wafer.
Optimized Mini LED Supply System
This versatile device supports both Hoof Ring WaferType and Reel Feeder simultaneously. The Reel Feeder includes 4 Feeder Slots and is equipped with a Reel Cutter for easy management of discarded round material discs.
※ Reel Feeder: Optional accessory
