Name: Panasonic AM100 SMT Placement Machine with 35,800 CPH Speed and ±40 µm Accuracy for Versatile Component Handling
Brand: Global Soul Limited
SKU: NM-EJM4D
Availability: InStock

Home > Products > SMT Placement Machine >

Panasonic AM100 SMT Placement Machine with 35,800 CPH Speed and ±40 µm Accuracy for Versatile Component Handling

NM-EJM4D SMT Placement Machine

AM100 Panasonic SMT Machine

200 Cph SMT Placement Machine

Place of Origin:

Japan

Brand Name:

Panasonic

Model Number:

NM-EJM4D

Document:

Product Brochure PDF

Request A Quote

Product Details

Model ID:

AM100

Model No:

NM-EJM4D

PCB Dimensions (mm):

L 50 × W 50 To L 510 × W 460

Placement Speed:

35,800 Cph (0.1006 S/chip); 12,200 Cph (0.295 S/QFP 12 Mm Or Less)

Placement Accuracy (Cpk1):

±40 µm/chip; ±50 µm/QFP 12 Mm Or Less; ±30 µm/QFP 12 Mm Over To 32 Mm Or Less

Component Supply: Taping:

(Tape : 4 / 8 Mm Tape (small Reel) ); Tape Feeder Specification : Max. 160; Tray Feeder Specification : Max. 120

Component Supply: Stick:

Tape Feeder Specification : Max. 40; Tray Feeder Specification : Max. 30

Component Supply: Tray:

Tray Feeder Specification: Max. 20 ; Manually Setting Tray Specification: Max. 20 (Option For The Fixed Feeder Base)

Component Dimensions (mm):

0402 Chip [*3] To L 120 × W 90 Or L 150 × W 25 (T=28 [*4])

PCB Exchange Time:

4.0 S (where There Is No Placement Component On The Rear Side)

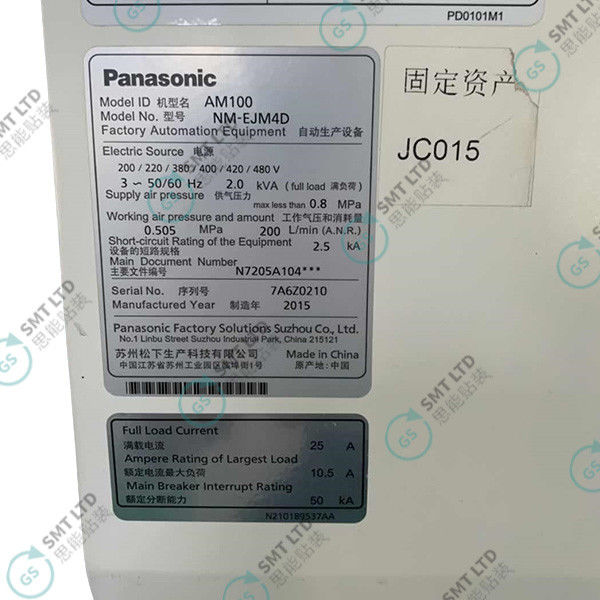

Electric Source:

3-phase AC 200 / 220 V ±10 V, AC 380 / 400 / 420 / 480 V ±20 V 2.0 KVA

Pneumatic Source:

Min.0.5 MPa To Max.0.8 MPa, 200 L /min (A.N.R.)

Dimensions (mm):

W 1,970 × D 2,019 [*5] × H 1,500 [*6]

Mass:

2,650 Kg

Highlight:

NM-EJM4D SMT Placement Machine

AM100 Panasonic SMT Machine

200 Cph SMT Placement Machine

Payment & Shipping Terms

Minimum Order Quantity

1 PCS

Price

USD+negotiable+pcs

Packaging Details

2000*2100*1600mm

Delivery Time

1-7 days

Payment Terms

T/T

Supply Ability

1+pcs+per days

Panasonic BM123 SMT Pick And Place Machine with 0.12s/chip Max Speed 50μm Placement Accuracy and 160 Double Tape Feeder

Get Best Price

Electric Steel Mesh Cleaning Machine with 25KW Power Double Liquid Tank and High Pressure Spray for SMT Cleaning

Get Best Price

SMT Cooling Temporary Storage Machine with 130℃ to 30℃/60s Cooling Range and 100011001300mm Size for 5050-550350mm PCB Boards

Get Best Price

Panasonic NPM-D3A SMT Pick And Place Machine with Dual-Lane Capability High-Speed Performance and Advanced Vision System

Get Best Price

Contact Now

Product Description

NM-EJM4D SMT Placement Machine Panasonic AM100

The PANASONIC AM100 is a high-performance SMT (Surface Mount Technology) pick-and-place machine engineered for precision and efficiency in electronics manufacturing environments.

Key Features & Specifications

High-Speed Precision Placement

Placement capability up to 48,000 components per hour (CPH)
Exceptional placement accuracy of ±0.03 mm for superior assembly quality

Versatile Component Compatibility

Handles diverse component sizes from small 0201 chips to larger components
Supports both passive and active components with various shapes and types

Flexible Feeder Configuration

Optimized feeder arrangements for space efficiency and production speed
Compatible with multiple feeder types including tape, tray, and specialized feeders

Advanced Vision System

Real-time component alignment and orientation verification
Automatic placement error compensation to minimize defects

User-Friendly Operation

Intuitive interface for straightforward programming and operation
Graphical user interface (GUI) simplifies setup and maintenance procedures

Production Flexibility

Ideal for low to medium volume production runs and prototyping
Quick setup and changeover capabilities reduce production downtime

Integrated Software Solutions

Panasonic proprietary software for enhanced process monitoring
Real-time quality control and production optimization features

Energy Efficient Design

Energy-efficient components reduce operational costs
Environmentally conscious manufacturing solution

The Panasonic AM100 combines high performance, adaptability, and operational ease, making it an excellent choice for electronics manufacturers seeking reliable SMT placement solutions.
