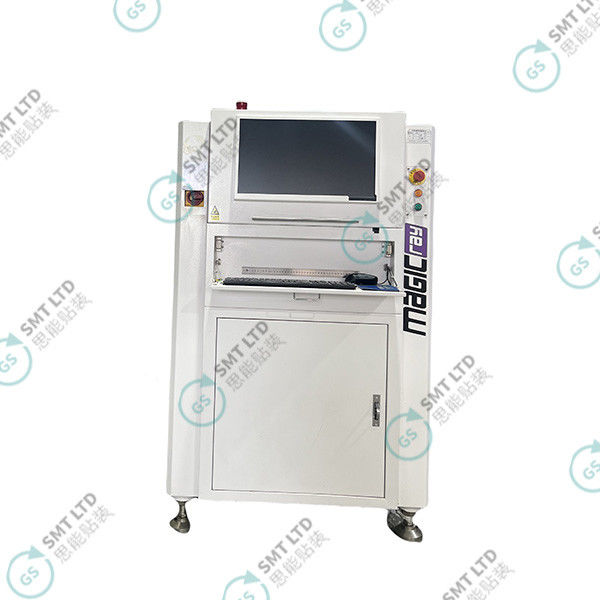

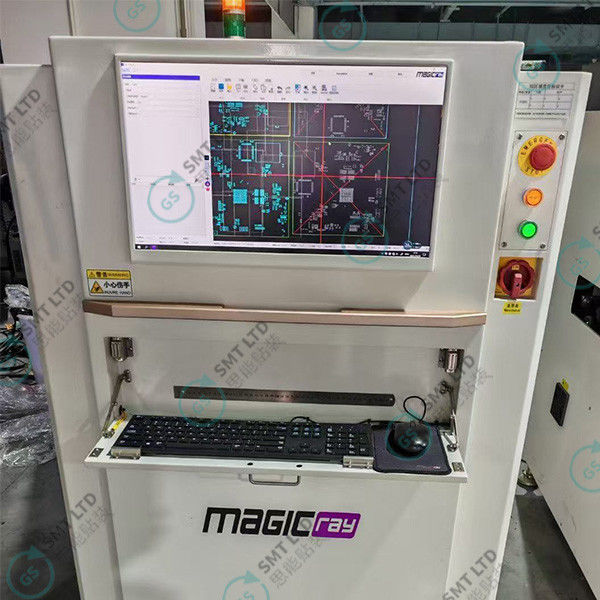

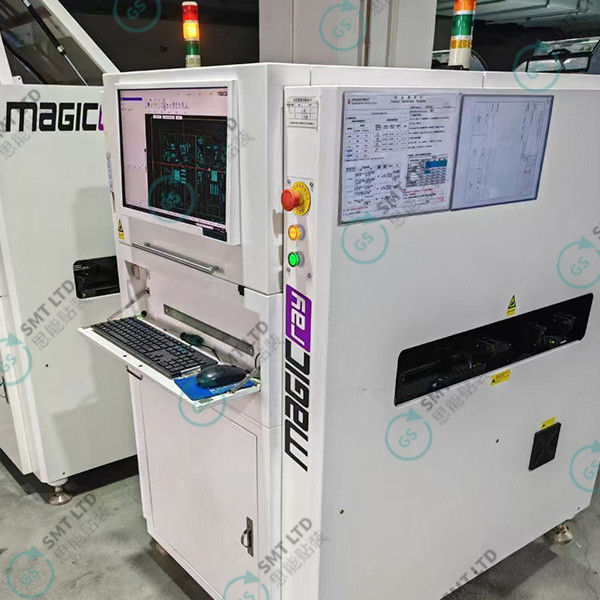

Name: MagicRay 3D SPI-VSP3000 SMT Screen Printer with 12MP Industrial Camera Granite Platform and Automatic Width Adjustment for 3D Solder Paste Inspection
Brand: Global Soul Limited
SKU: VSP3000
Availability: InStock

Home > Products > SMT Placement Machine >

MagicRay 3D SPI-VSP3000 SMT Screen Printer with 12MP Industrial Camera Granite Platform and Automatic Width Adjustment for 3D Solder Paste Inspection

SPI-VSP3000 SMT Screen Printer

Paste Inspection SMT Screen Printer

3D SMT Screen Printer

Brand Name:

MagicRay

Model Number:

VSP3000

Document:

Product Brochure PDF

Request A Quote

Product Details

Equipment Model:

VSP3000

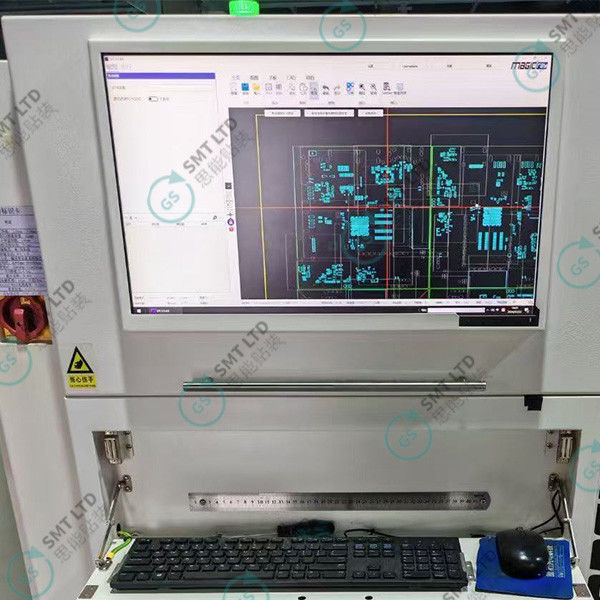

Image System Camera:

12MP Industrialcamera

Resolution:

15μm,12μm,10μm

FOV:

60*45mm(12MP,15μm)

Height Resolution:

0.37μm

Lighting:

3color Ring ShapeLED(RGB)

Height Measurement Method:

Projectors

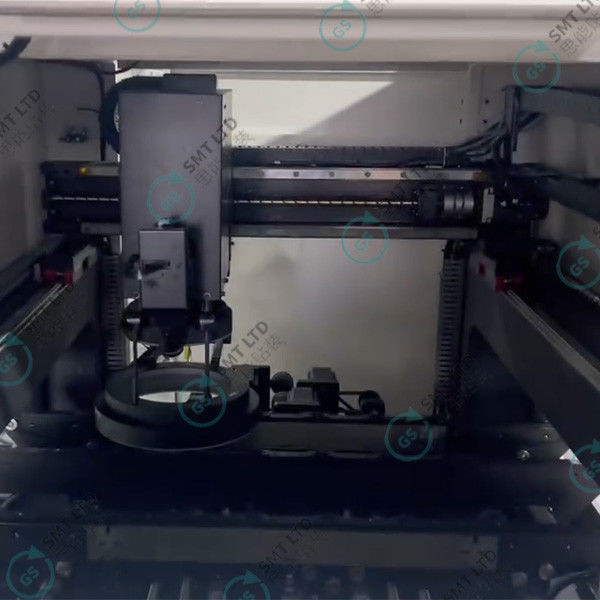

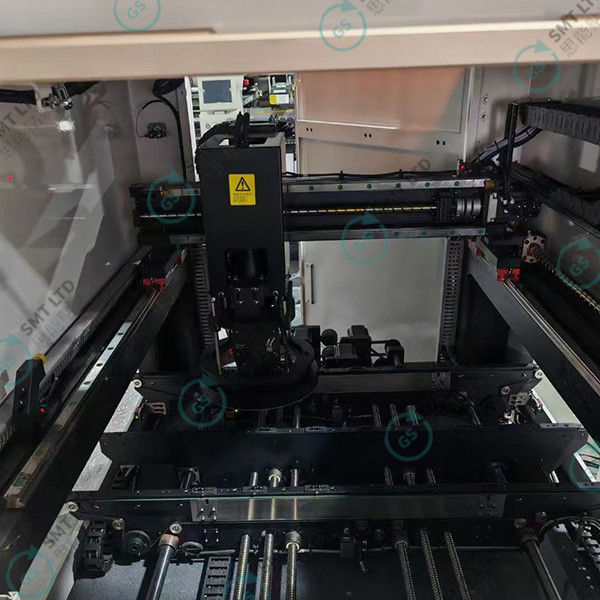

Movement Structure:

X/Y Movement

Platform:

Granite

Width Adjustment:

Automatic

Transport Type:

Belt

Board Loading Direction:

Lefttoright Or Right To Left(Select At Point Of Order)

Fixed Rail:

Front Rail

Highlight:

SPI-VSP3000 SMT Screen Printer

Paste Inspection SMT Screen Printer

3D SMT Screen Printer

Payment & Shipping Terms

Minimum Order Quantity

1 PCS

Price

USD+negotiable+pcs

Packaging Details

1000*1500*1700mm

Delivery Time

1-7 days

Payment Terms

T/T

Supply Ability

1+pcs+per days

Panasonic BM123 SMT Pick And Place Machine with 0.12s/chip Max Speed 50μm Placement Accuracy and 160 Double Tape Feeder

Get Best Price

Electric Steel Mesh Cleaning Machine with 25KW Power Double Liquid Tank and High Pressure Spray for SMT Cleaning

Get Best Price

SMT Cooling Temporary Storage Machine with 130℃ to 30℃/60s Cooling Range and 100011001300mm Size for 5050-550350mm PCB Boards

Get Best Price

Panasonic NPM-D3A SMT Pick And Place Machine with Dual-Lane Capability High-Speed Performance and Advanced Vision System

Get Best Price

Contact Now

Product Description

MagicRay 3D SPI-VSP3000 Series SMT Screen Printer

The MagicRay 3D SPI-VSP3000 series is specifically designed for 3D solder paste inspection following SMT screen printing processes, ensuring superior quality control in electronics manufacturing.

Key Features & Capabilities

Intelligent zero reference point technology ensures precise height measurement accuracy
Advanced detection of solder bridging, solder breakage, icicle formation, and other common defects
Effective performance across PCBs with varying color variations and surface finishes
Automatic solder pad compensation enhances measurement precision for both height and volume
Comprehensive SPC data analysis for continuous process quality improvement
Three Point Checks software enables rapid root cause analysis for excess solder, insufficient paste, and smearing issues
