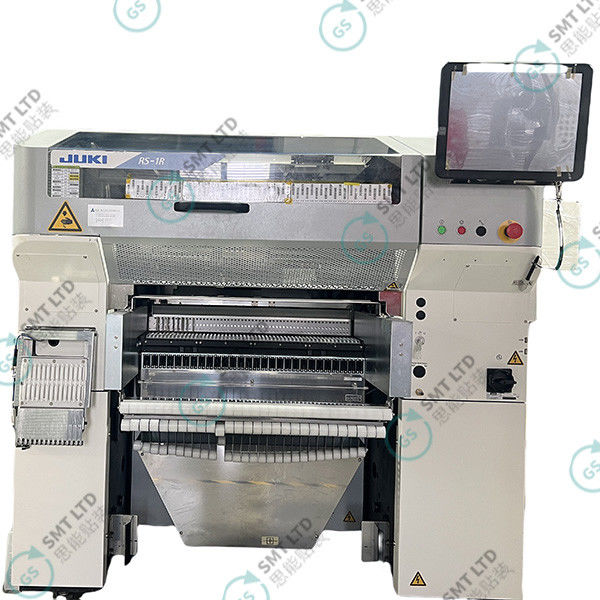

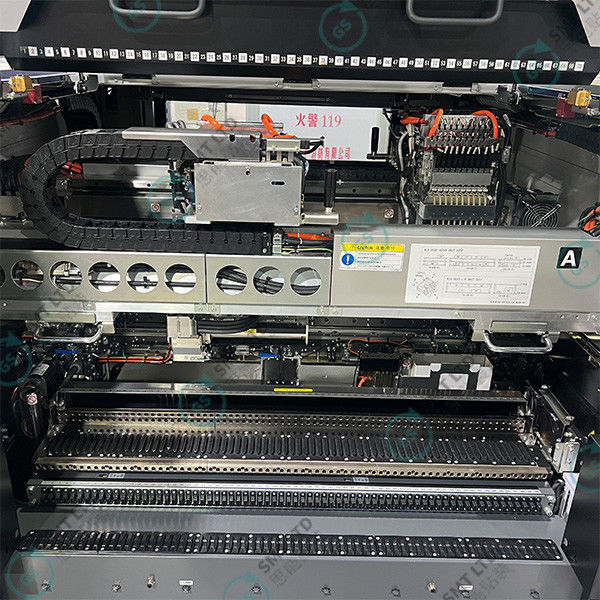

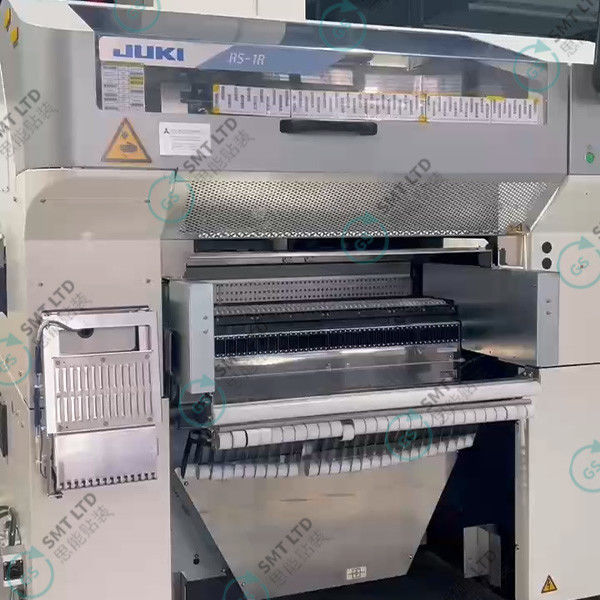

Name: JUKI RS-1R High Speed SMT Placement Machine with 47,000CPH, ±35μm Accuracy and 0201 Component Support
Brand: Global Soul Limited
SKU: RS-1R
Availability: InStock

Home > Products > SMT Placement Machine >

JUKI RS-1R High Speed SMT Placement Machine with 47,000CPH, ±35μm Accuracy and 0201 Component Support

Intelligent SMT Placement Machine

JUKI RS-1R SMT Placement Machine

High Speed SMT Placement Machine

Place of Origin:

Japan

Brand Name:

JUKI

Model Number:

RS-1R

Document:

Product Brochure PDF

Request A Quote

Product Details

Machine Name:

RS-1R

Transfer Pattern Standard:

Import And Export 150mm Extension

Substrate Size Min:

50×50mm

Component Hight:

25mm

Component Size:

0201*1(British System：008004）～74mm /50×150mm

Component Mounting Speed:

47,000CPH

Component Mounting Accuracy:

±35μm（Cpk≧1）

Image Recognition:

±30μm

Type Of Component Mounting:

112 Kinds *2

Machine Size(W*D*H):

1,500×1,810×1,440mm

Machine Weight:

About1,700Kg

Condition:

Used Origianl

Highlight:

Intelligent SMT Placement Machine

JUKI RS-1R SMT Placement Machine

High Speed SMT Placement Machine

Payment & Shipping Terms

Minimum Order Quantity

1 PCS

Price

USD+negotiable+pcs

Packaging Details

1600*2000*1600mm

Delivery Time

1-7 days

Payment Terms

T/T

Supply Ability

1+pcs+per days

Panasonic BM123 SMT Pick And Place Machine with 0.12s/chip Max Speed 50μm Placement Accuracy and 160 Double Tape Feeder

Get Best Price

Electric Steel Mesh Cleaning Machine with 25KW Power Double Liquid Tank and High Pressure Spray for SMT Cleaning

Get Best Price

SMT Cooling Temporary Storage Machine with 130℃ to 30℃/60s Cooling Range and 100011001300mm Size for 5050-550350mm PCB Boards

Get Best Price

Panasonic NPM-D3A SMT Pick And Place Machine with Dual-Lane Capability High-Speed Performance and Advanced Vision System

Get Best Price

Contact Now

Product Description

JUKI RS-1R High Speed Modular SMT Placement Machine

The JUKI RS-1R represents a significant advancement in surface mount technology, offering high-speed, intelligent modular placement for demanding electronics manufacturing environments.

Advanced SMT Placement Technology

The JUKI RS-1R series is engineered for high-mix, high-volume production with flexible modular configuration. This intelligent chip mounter supports components ranging from ultra-small chip parts to large odd-form components, providing exceptional versatility for diverse manufacturing applications.

Key Features & Performance Specifications

High-Speed Placement: Maximum throughput up to 47,000 CPH (chips per hour)
Enhanced Accuracy: Placement accuracy of ±35μm (Cpk≥1) for precision assembly
Small Component Support: Handles ultra-small 0201 metric (008004") components
Versatile Component Range: Supports components up to 74mm square and 50mm x 150mm rectangular parts
Takumi Head Technology: Features changing recognition sensor height for optimized line balance
Intelligent Scan System: Automatically detects component size and height, reducing manual calibration
Dual Lane Conveyor: Processes two PCBs simultaneously to reduce cycle time
Non-Stop Optimization: Continuous monitoring and adjustment for maximum efficiency

Industry Applications

The JUKI RS-1R is ideal for precision manufacturing across multiple industries:

Mobile Devices: Smartphones, tablets, and high-density electronics
Wearable Technology: Smartwatches, fitness trackers, and miniaturized devices
Automotive Electronics: ADAS systems, infotainment, and automotive controls
Industrial Automation: Control systems and automation equipment
Medical Devices: Diagnostic, monitoring, and sensitive medical electronics

Technical Specifications

Specification	Value
Placement Speed	Up to 47,000 CPH
Placement Accuracy	±35μm (Cpk≥1)
Smallest Component	0201 metric (008004")
Maximum Component Size	74mm square / 50mm x 150mm rectangular

Frequently Asked Questions

What is the placement speed of the JUKI RS-1R?

The JUKI RS-1R achieves optimum placement speeds up to 47,000 chips per hour.

What level of accuracy does the RS-1R provide?

The machine delivers exceptional placement accuracy of ±35μm (Cpk≥1).

What is the smallest component size supported?

The RS-1R handles ultra-small components including 0201 metric (008004") parts.

What industries benefit from this machine?

Ideal for mobile devices, wearable technology, automotive electronics, industrial automation, and medical devices.

Cost-Effective Manufacturing Solution

The JUKI RS-1R offers superior Total Cost of Ownership through high-speed operation, precision accuracy, and versatile component handling. Its modular design and intelligent features reduce the need for additional equipment, providing comprehensive manufacturing capabilities in a single platform.
