Siemens DX4 SMT Pick and Place Machine with 102,000 comp./h IPC Speed, 01005-6 mm x6 mm Component Range and 3.45kw Rated Power

Product Details

Model:

SIPLACE DX4

IPC Speed:

102,000 Comp./h

Component Range:

01005-6 Mm X6 Mm

Mounting Accuracy:

+41 Um,±0.5%(3sigma),±55 Um,± 0.7% (4sigma)

Standing Position:

148

PCB Range:

550 Mm X 560 Mm

PCB Thickness:

0.3 -4.5 Mm

Patch Head:

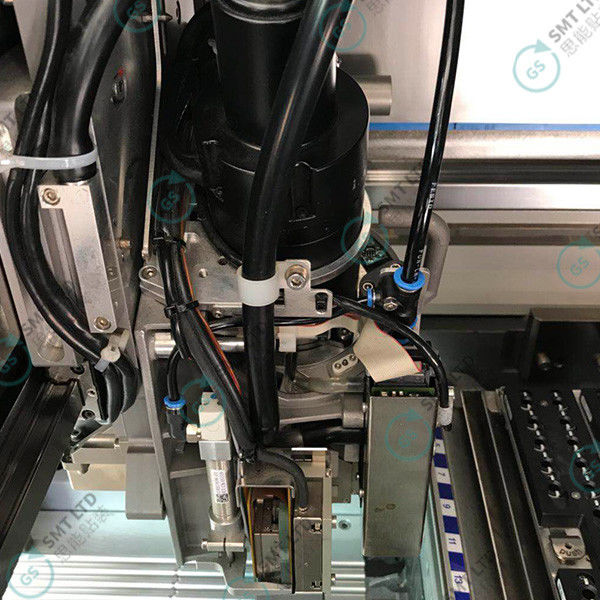

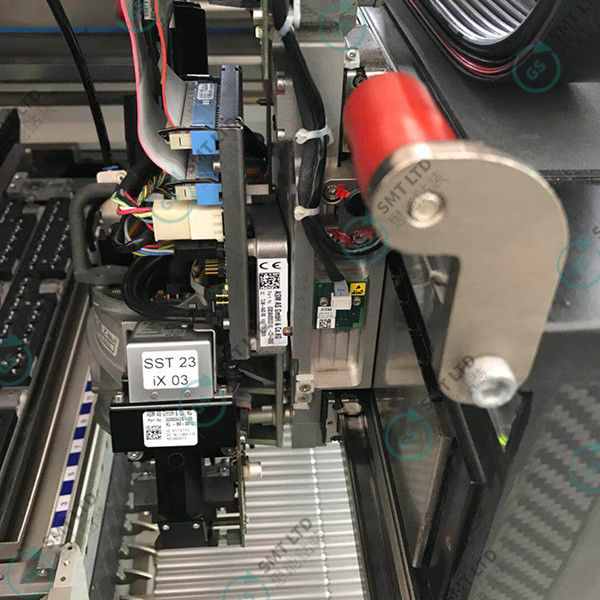

SlPLACE SpeedStar Component Camera Type 23 (C&P20)

Track Mode:

Automatic Widening Mulberry Double Track (can Be Used As Single Track)

Rated Power:

3.45kw

Highest Component:

4mm

Equipment Size(W*D*H):

1900x2735x1630mm

Equipment Weight:

3460kg

Power Requirement:

3×380 V~±10 % 50/60 Hz

Gas Requirement:

0.5-1 MPa

Condition:

Original New/Used Original

Highlight:

DX4 Pick And Place Machines

Pick And Place Machines 3.45kw

Payment & Shipping Terms

Minimum Order Quantity

1 PCS

Price

USD+negotiable+pcs

Packaging Details

2100*3000*1800mm

Delivery Time

5-15 days

Payment Terms

T/T

Supply Ability

1+pcs+per days

Panasonic BM123 SMT Pick And Place Machine with 0.12s/chip Max Speed 50μm Placement Accuracy and 160 Double Tape Feeder

Get Best Price

Electric Steel Mesh Cleaning Machine with 25KW Power Double Liquid Tank and High Pressure Spray for SMT Cleaning

Get Best Price

SMT Cooling Temporary Storage Machine with 130℃ to 30℃/60s Cooling Range and 100011001300mm Size for 5050-550350mm PCB Boards

Get Best Price

Panasonic NPM-D3A SMT Pick And Place Machine with Dual-Lane Capability High-Speed Performance and Advanced Vision System

Get Best Price

Contact Now

Product Description

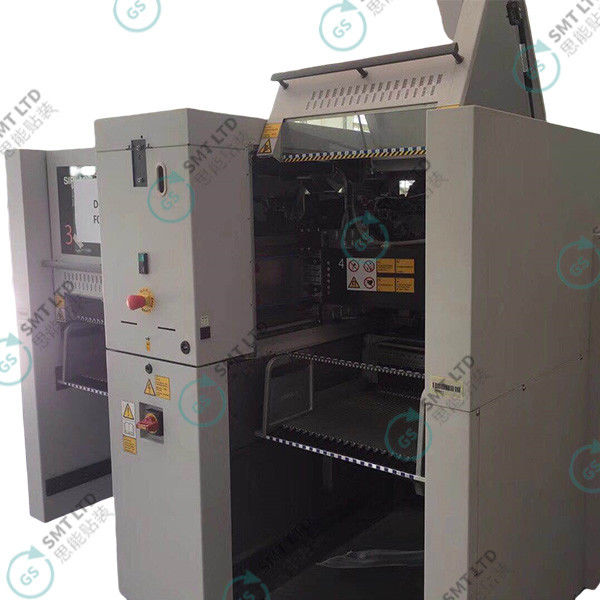

SMT Siemens DX4 Pick and Place Machine 3.45kw 01005-6 mm x6 mm

The Siemens DX4 is a high-speed chip mounting machine engineered for exceptional precision in SMT placement. This advanced system serves as the cornerstone of PCB assembly, offering robust capabilities in surface mounting technology.

Key Features

High-speed precision placement for SMT applications
Designed for modern PCB component placement complexities
Seamlessly combines speed with accuracy for optimal performance
Ideal solution for LED SMT production and diverse SMT applications
User-friendly interface enhancing operational efficiency
3.45kw power rating for robust performance
Component range: 01005 to 6mm x 6mm

Technical Specifications

Power Rating	3.45kw
Component Range	01005 - 6mm x 6mm
Application	SMT Placement, PCB Assembly
Technology	Surface Mount Technology

Applications

This precision placement system is specifically designed for LED SMT production and a wide range of surface mount technology applications, empowering your production with efficiency and reliability.
