Siemens D1i SMT Pick and Place Machine with 20,000 cph Speed, ±52.5μm/3σ Accuracy, and Digital Imaging System

D1i Pick And Place Machine

Siemens Pick And Place Machine

SMT Siemens Pick And Place Machine

Place of Origin:

Germany

Brand Name:

ASM/SIEMENS

Model Number:

D1i

Document:

Product Brochure PDF

Request A Quote

Siemens D1i SMT Pick and Place Machine with 20,000 cph Speed, ±52.5μm/3σ Accuracy, and Digital Imaging System

Product Details

Number Of Arms:

Number Of Placement Heads:

2 Or 1

IPC Speed:

13.000cph

SIPLACE Benchmark Evaluation:

15.000cph

Theoretical Speed:

20.000cph

Component Range (mm²):

01005 To 200x125

Placement Head Features:

6 Nozzle Collect & Placehead

Mounting Accuracy:

±52,5μm/3σ

Angular Accuracy:

±0,225μm/3σ

Conveyor Belt Type:

SIPLACE Single Track, Flexible Double Track

Conveyor Mode:

Asynchronous, Synchronous

PCB Size:

50x50mm²－610x508mm²

PCB Thickness:

0,3－4,5mm² (other Sizes Can Be Customized Upon Request)

PCB Weight:

Up To 3kg

Feeder Capacity:

90 3x8mmS Feeders

Feeder Module Type:

SIPLACE Waffle Tray (WPW), SIPLACE Feeding Cart

Pickup Rate:

≥99,95%1

DPM Rate:

≤5dpm2

Highlight:

D1i Pick And Place Machine

Siemens Pick And Place Machine

SMT Siemens Pick And Place Machine

Payment & Shipping Terms

Minimum Order Quantity

1 PCS

Price

USD+negotiable+pcs

Packaging Details

2100*2800*1800mm

Delivery Time

1-7 days

Payment Terms

T/T

Supply Ability

1+pcs+per days

Panasonic BM123 SMT Pick And Place Machine with 0.12s/chip Max Speed 50μm Placement Accuracy and 160 Double Tape Feeder

Get Best Price

Electric Steel Mesh Cleaning Machine with 25KW Power Double Liquid Tank and High Pressure Spray for SMT Cleaning

Get Best Price

SMT Cooling Temporary Storage Machine with 130℃ to 30℃/60s Cooling Range and 100011001300mm Size for 5050-550350mm PCB Boards

Get Best Price

Panasonic NPM-D3A SMT Pick And Place Machine with Dual-Lane Capability High-Speed Performance and Advanced Vision System

Get Best Price

Contact Now

Product Description

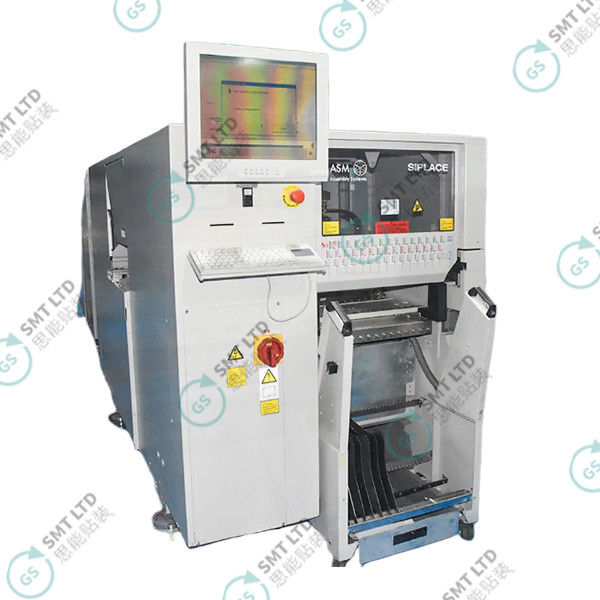

SMT Siemens Pick And Place Machine D1i With Digital Imaging System

Revolutionizing SMT Assembly: The Siemens D1i Precision Pick and Place Machine

The Siemens D1i Precision Pick and Place Machine represents a significant advancement in surface mount technology (SMT). This high-precision equipment delivers cutting-edge features, benefits, and applications that enhance productivity and precision in electronics manufacturing, setting new industry standards.

Introduction to Siemens D1i Machine

The Siemens D1i Machine is a high-precision SMT pick-and-place system engineered to meet the dynamic requirements of modern production environments. Its advanced capabilities make it ideal for handling diverse component types while maintaining exceptional speed and accuracy, serving applications from small-scale PCB assembly to large-scale industrial manufacturing.

Key Features of Siemens D1i Precision Pick and Place Machine

High-Speed Component Placement: Theoretical speed up to 20,000 components per hour (cph) with IPC-standard performance of 13,000 cph for real-world conditions
Superior Accuracy: Placement accuracy of ±52.5μm/3σ with angular accuracy of ±0.225μm/3σ for optimal component alignment
Wide Component Range: Handles components from 01005 to 200x125 mm² for diverse application requirements
Flexible PCB Handling: Supports PCB sizes from 50x50 mm² to 610x508 mm² with thicknesses from 0.3 mm to 4.5 mm and accommodates PCBs up to 3 kg

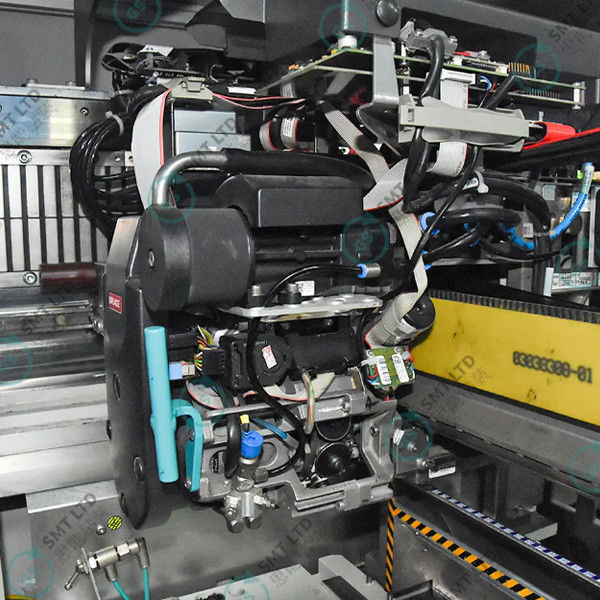

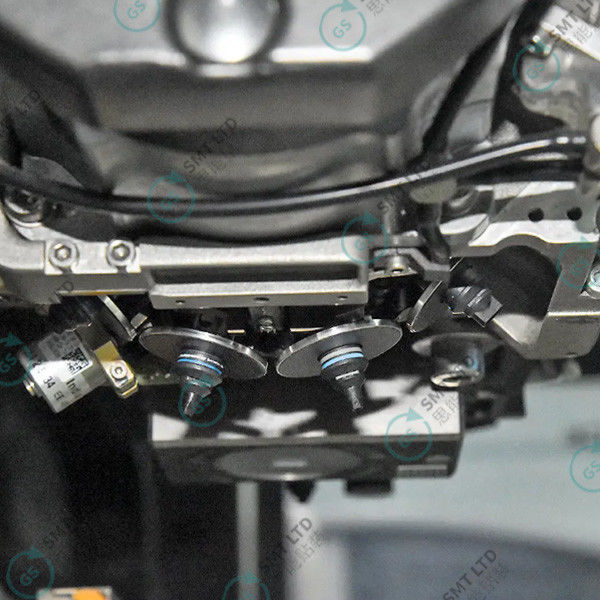

Advanced Placement Heads: Equipped with six-nozzle Collect&Place heads for efficient multi-component handling
Digital Imaging System: Integrated digital imaging ensures real-time quality control during component placement
Feeder Capacity: Supports up to 90 feeders with SIPLACE Waffle Tray and Feeding Cart options for streamlined operations

Benefits of Using Siemens D1i Machine

Enhanced Productivity: Reduces cycle times while maintaining high precision, enabling manufacturers to meet tight deadlines without quality compromise
Cost Efficiency: Reliable performance minimizes errors and rework, leading to significant production cost savings
Flexibility: Capable of handling diverse components and PCB sizes, suitable for both small-batch and large-scale production
User-Friendly Operation: Intuitive interface and powerful SIPLACE software simplify machine setup and operation, reducing operator training time

Applications of Siemens D1i Precision Pick and Place Machine

Electronics Manufacturing: Widely used in assembling consumer electronics including smartphones, tablets, and wearable devices

Automotive Industry: Essential for producing circuit boards for automotive electronics, including sensors, control units, and infotainment systems

Telecommunications: Critical for manufacturing high-density PCBs used in communication devices such as routers, modems, and base stations

Technical Specifications

Specification	Value
Theoretical Speed	Up to 20,000 cph
IPC Speed	13,000 cph
Placement Accuracy	±52.5μm/3σ
Angular Accuracy	±0.225μm/3σ
Component Range	01005 to 200x125 mm²
PCB Size Range	50x50 mm² to 610x508 mm²
PCB Thickness	0.3 mm to 4.5 mm
Maximum PCB Weight	3 kg
Feeder Capacity	Up to 90 feeders

Frequently Asked Questions

What is the theoretical speed of the Siemens D1i Machine?

The theoretical speed is up to 20,000 components per hour (cph).

What types of PCBs can the D1i handle?

It supports PCB sizes ranging from 50x50 mm² to 610x508 mm² with thicknesses between 0.3 mm and 4.5 mm.

How accurate is the component placement?

The placement accuracy is ±52.5μm/3σ with angular accuracy at ±0.225μm/3σ.

Can the D1i handle small components like 01005?

Yes, it can handle components as small as 01005 up to larger sizes like 200x125 mm².

What industries benefit most from using the Siemens D1i?

The machine is widely used in electronics manufacturing, automotive industry, and telecommunications.
