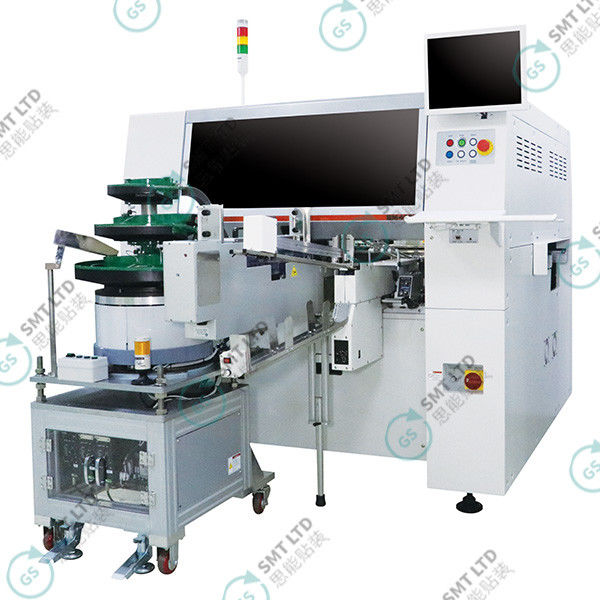

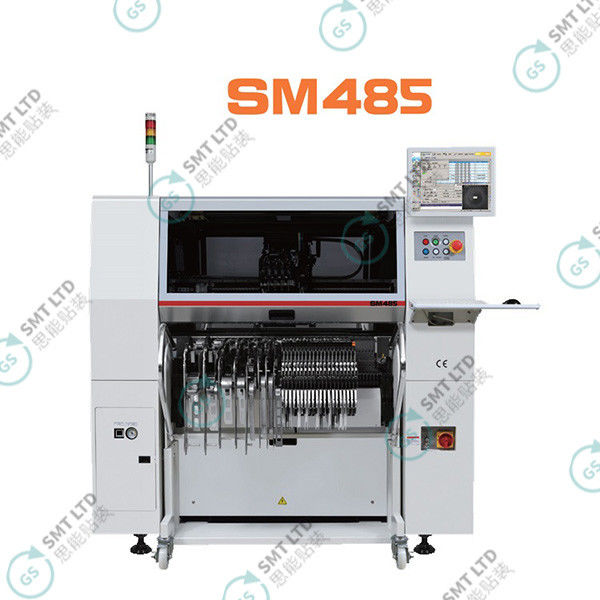

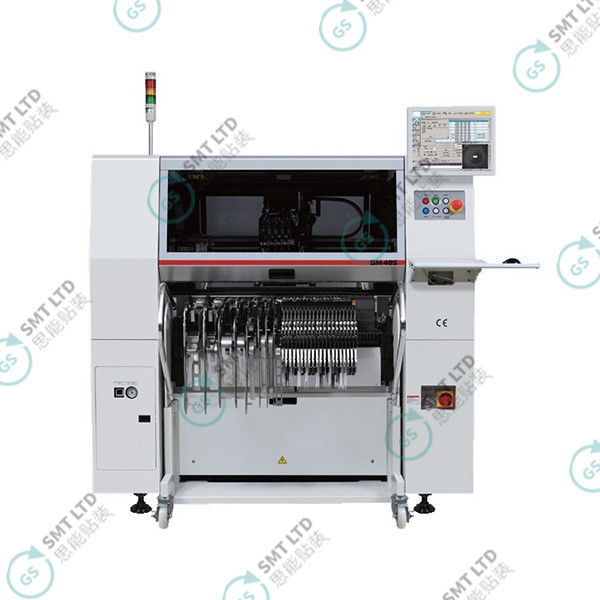

Samsung Pick And Place Machine Smart Hybrid SMT Mounter HANWHA SM485P
Building on the success of the SM451 model, the Hanwha SM485P represents the next generation in high-precision multi-functional placement systems. Equipped with four Force Control Precision Heads, this advanced machine handles virtually any component type with exceptional accuracy and reliability.
Advanced Component Handling Capabilities
The SM485P demonstrates remarkable versatility in component placement, accommodating radial through-hole components, flip chips, COB (Chip-on-Board), POP (Package-on-Package), through-hole connectors, shield cans, and even unconventional items. For components that challenge traditional vacuum nozzles, the system employs specialized gripper nozzles to ensure secure handling.
Technical Specifications
| Standard Component Height |
Up to 32mm |
| Optional Height Capacity |
Up to 44mm |
| Maximum Component Length |
150mm |
| Placement Accuracy |
±30µ@3σ/QFP, ±40µ@3σ/Chip |
| Feeder Capacity |
120 x 8mm |
| Machine Footprint |
1650mm x 1690mm x 1485mm |
| Maximum Power Consumption |
4.7KVA |
Key Features
Gripper Nozzles for Connectors
Laser Alignment for Pin and Shield Components
Force Control Z-Axis Precision Head
Through-Hole Component Placement
Connector Placement Capability
0201 Component Recognition (Standard)
Advanced Vision System with 4 Small Cameras
Stage Camera for Large Component Alignment
Available Options
Lifted Lead Check Sensor
Board Height Sensor
Component Value Verifier (LCR Checker)
Intelligent Feeders
Multi Tray Feeders
SMART Feeders (Cut Strips)
Radial Feeder
Bowl Feeder
Designed specifically for odd-form capability and operational flexibility rather than maximum speed, the Hanwha SM485P provides manufacturers with a comprehensive solution for complex assembly requirements across diverse production environments.
