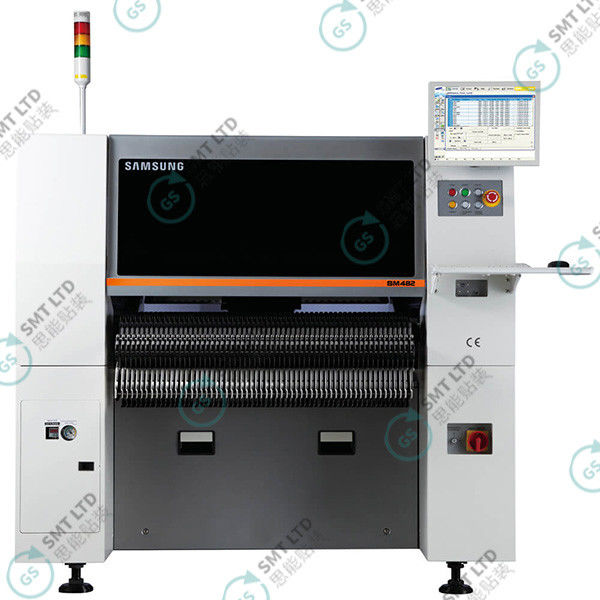

Name: Samsung SM482 Pick And Place Machine with 28,000 CPH Placement Speed, 6 Shafts Cantilever, and Electric Feeders
Brand: Global Soul Limited
SKU: SM482
Availability: InStock

Home > Products > SMT Placement Machine >

Samsung SM482 Pick And Place Machine with 28,000 CPH Placement Speed, 6 Shafts Cantilever, and Electric Feeders

Pick And Place Machine SM482

Samsung Pick And Place Machine

28000 CPH Pick And Place Machine

Place of Origin:

China

Brand Name:

Samsung

Model Number:

SM482

Document:

Product Brochure PDF

Request A Quote

Samsung SM482 Pick And Place Machine with 28,000 CPH Placement Speed, 6 Shafts Cantilever, and Electric Feeders

Product Details

Model Number:

SM482

Positioning:

Flight Camera + Fixed Camera

Mounting Shafts:

6 Shafts X 1 Cantilever

Placement Speed:

28,000 CPH (optimal Conditions)

Corresponding Components:

0603 ~ □ 55mm (H 15mm), 0402 (Option)

PCB Size (mm) 1:

460 (L) X 400 (W) 510 (L) X 460 (W) (optional)

PCB Size (mm) 2:

610 (L) X 510 (W) (option) 740 (L) X 460 (W) (option)

PCB Thickness:

0.38-4.2mm

Number Of Feeders (8mm Benchmark):

120ea / 112ea

Energy Consumption:

Power Supply AC200 / 208/220/240/380 / 415V (50 / 60HZ, 3Phase)

Dimensions:

1,650 (L) X 1,680 (D) X 1,530 (H)

Weight:

About 1600kg

Highlight:

Pick And Place Machine SM482

Samsung Pick And Place Machine

28000 CPH Pick And Place Machine

Payment & Shipping Terms

Minimum Order Quantity

1 PCS

Price

USD+negotiable+pcs

Packaging Details

1750*1750*1600mm

Delivery Time

1-7 days

Payment Terms

T/T

Supply Ability

1+pcs+per days

Panasonic BM123 SMT Pick And Place Machine with 0.12s/chip Max Speed 50μm Placement Accuracy and 160 Double Tape Feeder

Get Best Price

Electric Steel Mesh Cleaning Machine with 25KW Power Double Liquid Tank and High Pressure Spray for SMT Cleaning

Get Best Price

SMT Cooling Temporary Storage Machine with 130℃ to 30℃/60s Cooling Range and 100011001300mm Size for 5050-550350mm PCB Boards

Get Best Price

Panasonic NPM-D3A SMT Pick And Place Machine with Dual-Lane Capability High-Speed Performance and Advanced Vision System

Get Best Price

Contact Now

Product Description

Samsung Pick And Place Machine SM482 With 28000 CPH Placement Speed

Samsung SM482 Pick And Place Machine

The Samsung SM482 is an enhanced pick and place machine built upon the high-speed SM471 platform, specifically designed to handle special-shaped components with superior capability. This universal machine features a cantilever design with 6 shafts, capable of mounting components up to 55mm IC size while supporting Polygon identification technology.

The SM482 provides optimal solutions for complex-shaped components and challenging assembly requirements. The integration of electric feeders significantly improves both actual productivity and placement quality, while maintaining compatibility with SM pneumatic feeders to maximize customer convenience and operational flexibility.

Key Features & Capabilities

High-speed placement capability up to 28,000 CPH
Enhanced platform based on SM471 for special-shaped components
Cantilever design with 6 shafts for universal application
Maximum component size: 55mm IC
Advanced Polygon identification technology
Electric feeder system for improved productivity and quality
Compatible with SM pneumatic feeders
Optimal solutions for complex-shaped components

Technical Specifications

Placement Speed: 28,000 CPH

Placement Accuracy: ±40μm

Component Range: 0402 to 14mm

Maximum Component Size: 55mm IC

Machine Type: Cantilever with 6 shafts

Identification Technology: Polygon recognition

Samsung SM482 specifications Hanwha SM482 pick and place machine SMT assembly solutions PCB assembly automation Placement speed 30,000 CPH Multi-functional SMT machine SMT production efficiency Automated PCB placement Hanwha Precision Machinery Feeder systems for SM482 High-speed mounter technology Samsung SM482 parts compatibility Industrial pick and place machines SMT line equipment
