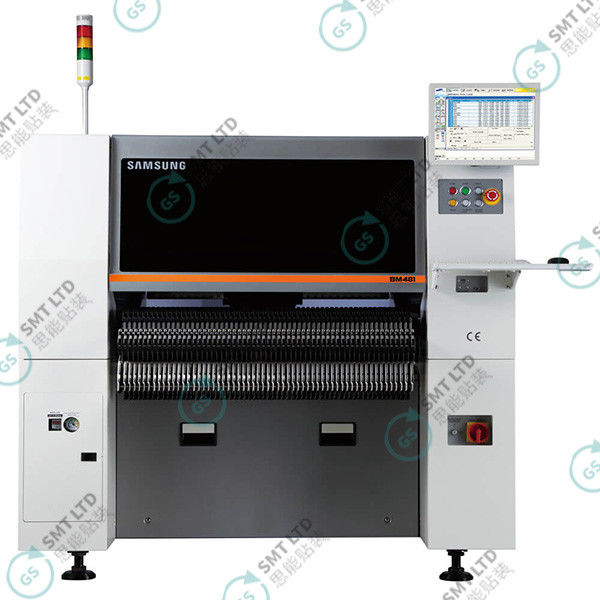

Name: High Speed Flexible SMT Mounter Machine SM481 with 38,000 CPH Placement Speed
Brand: Global Soul Limited
SKU: SM481
Availability: InStock

Home > Products > SMT Placement Machine >

High Speed Flexible SMT Mounter Machine SM481 with 38,000 CPH Placement Speed

High Speed SMT Mounter Machine

SMT Mounter Machine SM481

38000 CPH SMT Mounter Machine

Place of Origin:

Japan

Brand Name:

Samsung

Model Number:

SM481

Document:

Product Brochure PDF

Request A Quote

High Speed Flexible SMT Mounter Machine SM481 with 38,000 CPH Placement Speed

Product Details

Model:

SM481

Positioning Speed:

38,000 CPH(Optimum)

Applicable Part:

0402 ~ □42mm(H 15mm)

Applicable PCB:

460(L) X 400(W)(Standard)

Highlight:

High Speed SMT Mounter Machine

SMT Mounter Machine SM481

38000 CPH SMT Mounter Machine

Payment & Shipping Terms

Minimum Order Quantity

1 PCS

Price

USD+negotiable+pcs

Packaging Details

1500*1800*1600cm

Delivery Time

1-7 days

Payment Terms

T/T

Supply Ability

1+pcs+per days

Panasonic BM123 SMT Pick And Place Machine with 0.12s/chip Max Speed 50μm Placement Accuracy and 160 Double Tape Feeder

Get Best Price

Electric Steel Mesh Cleaning Machine with 25KW Power Double Liquid Tank and High Pressure Spray for SMT Cleaning

Get Best Price

SMT Cooling Temporary Storage Machine with 130℃ to 30℃/60s Cooling Range and 100011001300mm Size for 5050-550350mm PCB Boards

Get Best Price

Panasonic NPM-D3A SMT Pick And Place Machine with Dual-Lane Capability High-Speed Performance and Advanced Vision System

Get Best Price

Contact Now

Product Description

High Speed Flexible SMT Mounter Machine SM481 - 38,000 CPH

Advanced High-Speed Flexible Mounter

The SM481 represents the pinnacle of high-speed component placement technology, delivering exceptional performance with a placement speed of 38,000 components per hour—the highest in its class. Built on the robust platform of the SM471 high-speed chip shooter, this advanced mounter features enhanced vision systems and optimized motion control for maximum efficiency.

Key Performance Features

Single gantry design with ten spindles for superior placement speed
Advanced flying vision technology for real-time component verification
Optimized pickup and placement motion algorithms
High-speed, high-precision electrically driven feeders
Compatible with SM series pneumatic feeders for operational flexibility

Technical Specifications

Placement Speed: 38,000 CPH (maximum)
Component Range: 0402 chips to 42mm ICs
Placement Accuracy: Industry-leading precision
Feeder Compatibility: SM series pneumatic and electric feeders
Vision System: Enhanced flying vision technology

Operational Benefits

The SM481 significantly improves actual productivity and placement quality while maintaining operational convenience. Its modular design and feeder compatibility ensure seamless integration into existing SMT assembly lines, making it an ideal solution for high-volume PCB manufacturing environments.
