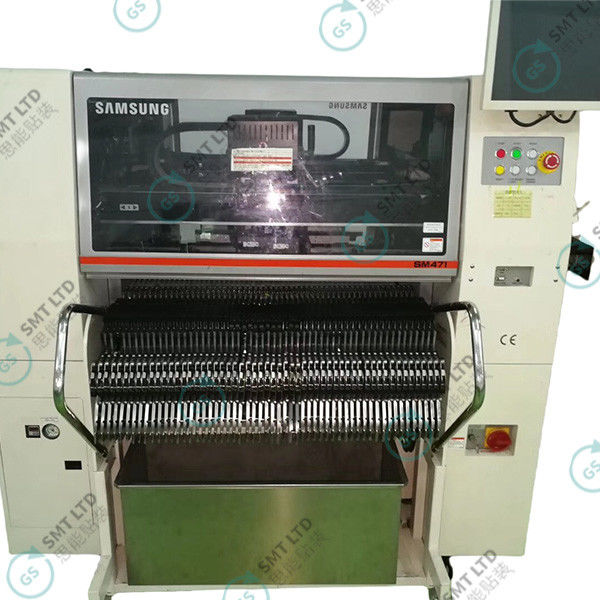

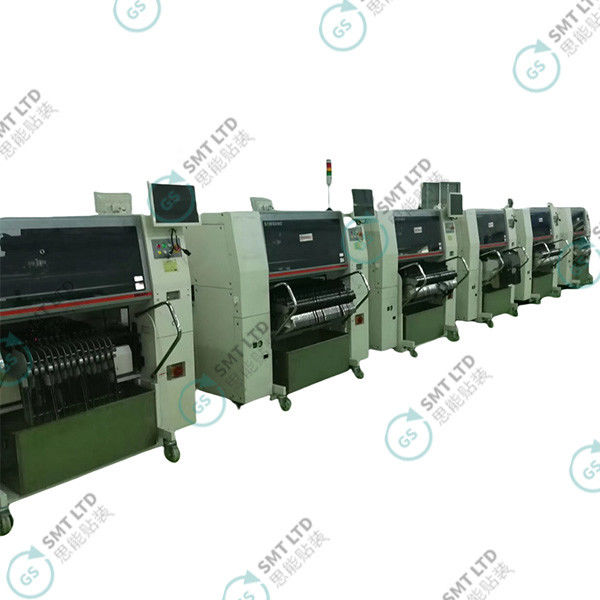

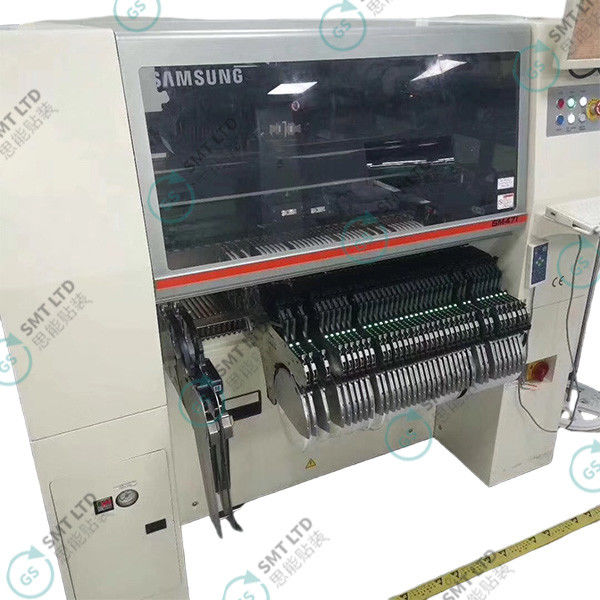

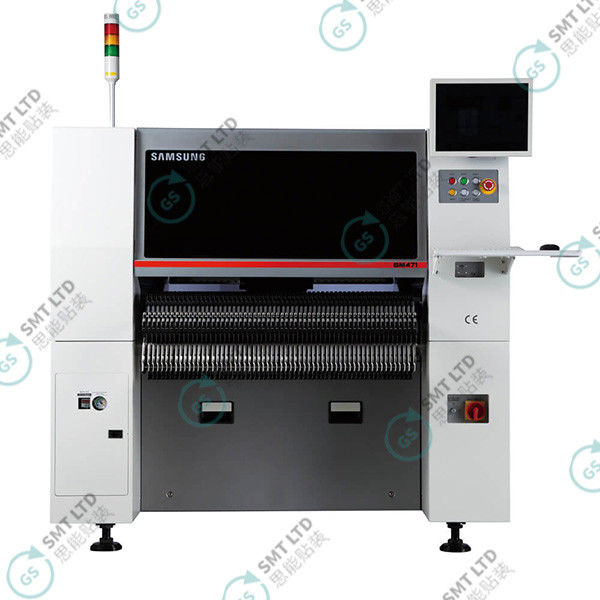

Name: Samsung SM471 SMT Placement Machine with 75,000 CPH Speed and Flying Vision Dual Gantry Chip Shooter
Brand: Global Soul Limited
SKU: SM471
Availability: InStock

Home > Products > SMT Placement Machine >

Samsung SM471 SMT Placement Machine with 75,000 CPH Speed and Flying Vision Dual Gantry Chip Shooter

Samsung SMT Placement Machine

SMT Placement Machine SM471

Flexible High Speed Chip Shooter

Place of Origin:

Japan

Brand Name:

Samsung

Model Number:

SM471

Document:

Product Brochure PDF

Request A Quote

Product Details

Alignment:

Flying Vision

Number Of Spindles:

2 Gantry X 10 Spindles/Head

Gantry Placement Speed:

75,000 CPH (Optimum)

Placement Accuracy:

Chip ± 50μm (Cpk ≥1.0) (Based On The Standard Chips)

Component Range 1:

Chip 0402( 01005)- £14mm (H12mm)

Component Range 2:

IC, Connector (Lead Pitch 0.4mm)

Component Range 3:

BGA, CSP (Ball Pitch 0.4mm)

Board Dimension (mm) 1:

Minimum Order: 50(L) X 40(W)

Board Dimension (mm) 2:

Single Tool: 510(L) X 460(W)

Board Dimension (mm) 3:

Dual Tool: 460(L) X250(W)

PCB Thickness:

0.38 – 4.2mm

Utility-Power:

AC200/ 208 / 220 / 240 / 380 / 415V (50/60Hz, 3Phase) Max. 5.0kVA

Air Consumption:

0.5 -0.7MPa (5-7kgf/cm2) 50Nl /min50Nl /min

Mass:

Approx. 1,820kg

Highlight:

Samsung SMT Placement Machine

SMT Placement Machine SM471

Flexible High Speed Chip Shooter

Payment & Shipping Terms

Minimum Order Quantity

1 PCS

Price

USD+negotiable+pcs

Packaging Details

1750*1800*1550mm

Delivery Time

1-7 days

Payment Terms

T/T

Supply Ability

1+pcs+per days

Panasonic BM123 SMT Pick And Place Machine with 0.12s/chip Max Speed 50μm Placement Accuracy and 160 Double Tape Feeder

Get Best Price

Electric Steel Mesh Cleaning Machine with 25KW Power Double Liquid Tank and High Pressure Spray for SMT Cleaning

Get Best Price

SMT Cooling Temporary Storage Machine with 130℃ to 30℃/60s Cooling Range and 100011001300mm Size for 5050-550350mm PCB Boards

Get Best Price

Panasonic NPM-D3A SMT Pick And Place Machine with Dual-Lane Capability High-Speed Performance and Advanced Vision System

Get Best Price

Contact Now

Product Description

Samsung SMT Placement Machine SM471 Flexible High Speed Chip Shooter

The Samsung SM471 Flexible High Speed Chip Shooter represents the pinnacle of chip mounting technology, delivering world-class performance and operational efficiency for modern PCB assembly lines.

Advanced Performance Features

Dual gantry design with 10 spindles per head for maximum throughput
Revolutionary flying vision technology for continuous operation
World-leading chip mounting speed of 75,000 components per hour (CPH)
On-the-Fly image recognition eliminates stopping during part pickup
Minimized movement time between pickup and placement positions
Near-zero recognition time for optimal cycle efficiency

Enhanced Operational Capabilities

The SM471 features automatic pickup position alignment between feeders to improve simultaneous pickup rates. Its electrically driven Samsung SM Feeder (SME) supports integrated use of 0603/2P/4P components with configurable supply speeds for enhanced stability.

Designed for maximum operational flexibility, the system allows mixed use with pneumatically driven SMN feeders, providing customers with versatile configuration options to meet diverse production requirements.

Technical Specifications

Placement Speed

75,000 CPH

Component Range

0402 to 14mm

Placement Accuracy

±50μm

Head Configuration

Dual gantry, 10 spindles per head

Vision System

On-the-Fly flying vision technology

Feeder Compatibility

SME electric & SMN pneumatic feeders
