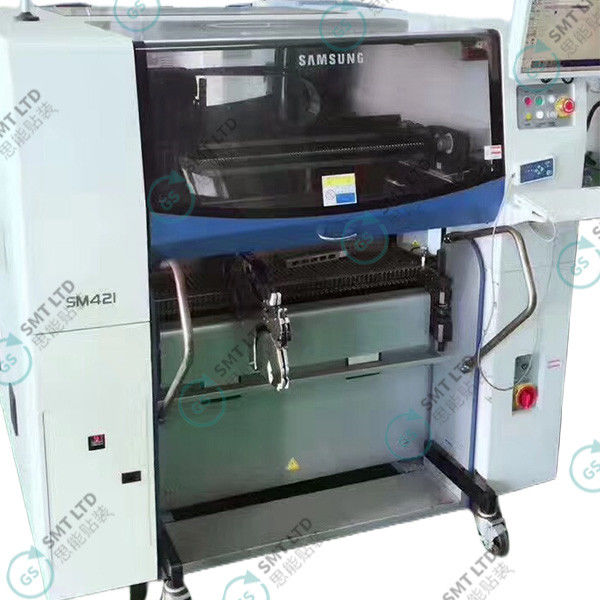

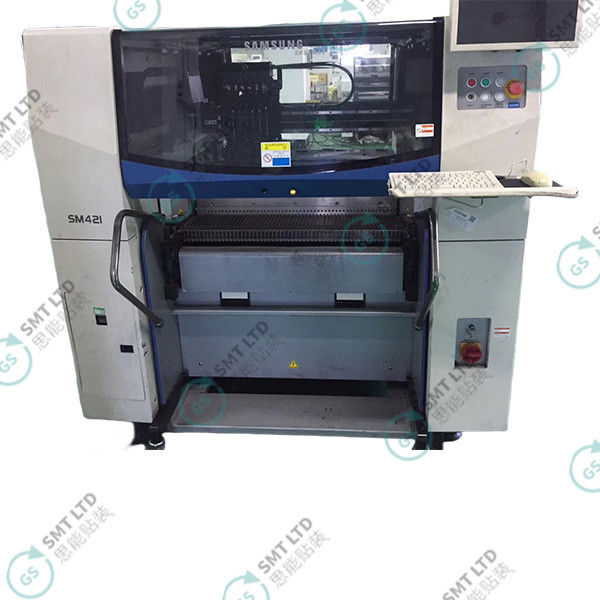

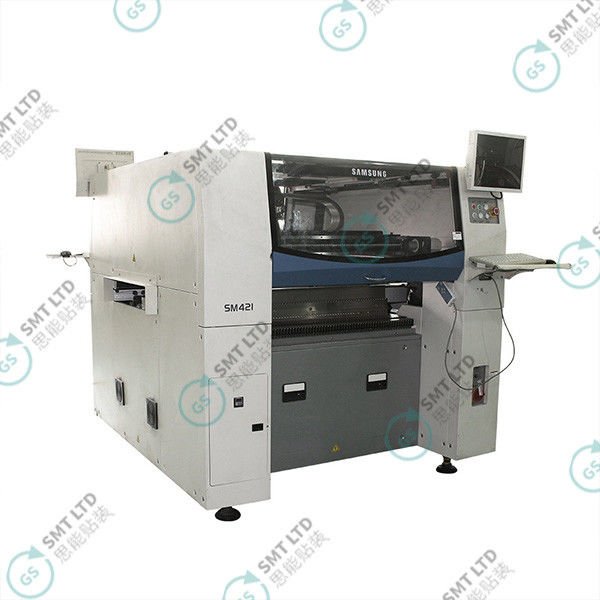

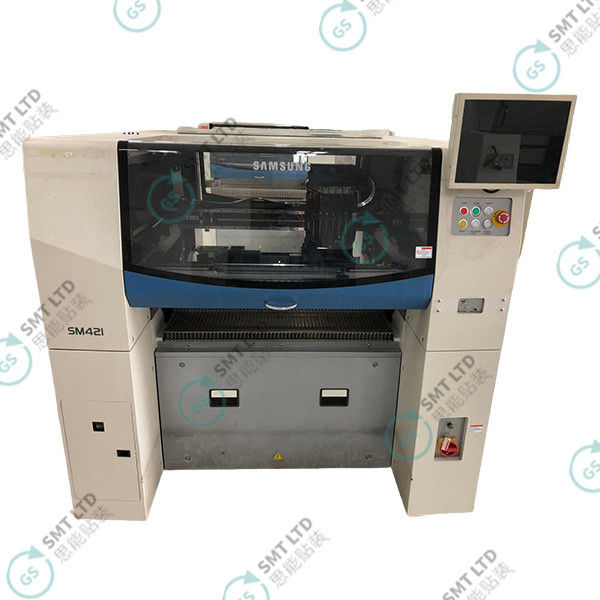

Name: Samsung SM421 SMT Pick And Place Machine with 21000 CPH Speed, High-Pixel Vision, and 0402-55mm IC Support
Brand: Global Soul Limited
SKU: SM421
Availability: InStock

Home > Products > SMT Placement Machine >

Samsung SM421 SMT Pick And Place Machine with 21000 CPH Speed, High-Pixel Vision, and 0402-55mm IC Support

Pick And Place Machine SM421

Samsung SMT Pick And Place Machine

21000CPH Pick And Place Machine

Place of Origin:

China

Brand Name:

Samsung

Model Number:

SM421

Document:

Product Brochure PDF

Request A Quote

Samsung SM421 SMT Pick And Place Machine with 21000 CPH Speed, High-Pixel Vision, and 0402-55mm IC Support

Product Details

Placement Speed 1:

21,000 CPH / Chip (IPC9850 Benchmark)

Placement Speed 2:

5,500 CPH / QFP (IPC9850 Benchmark)

Mounting Degree:

± 50μm @ 3σ / Chip, ± 30μm @ 3σ / QFP

Component Range 1:

Max, 0402 (01005) Chip ~ □ 55mm

Component Range 2:

0603 (0201) Chip ~ □ 55mm (standard)

PCB 1:

460 (L) X 400 (W) Mm

PCB 2:

510 (L) X 460 (W) Mm (option)

PCB 3:

610 (L) X 510 (W) Mm (option)

Highlight:

Pick And Place Machine SM421

Samsung SMT Pick And Place Machine

21000CPH Pick And Place Machine

Payment & Shipping Terms

Minimum Order Quantity

1 PCS

Price

USD+negotiable+pcs

Packaging Details

170*170*155cm

Delivery Time

1-7 days

Payment Terms

T/T

Supply Ability

1+PCSl+per days

Panasonic BM123 SMT Pick And Place Machine with 0.12s/chip Max Speed 50μm Placement Accuracy and 160 Double Tape Feeder

Get Best Price

Electric Steel Mesh Cleaning Machine with 25KW Power Double Liquid Tank and High Pressure Spray for SMT Cleaning

Get Best Price

SMT Cooling Temporary Storage Machine with 130℃ to 30℃/60s Cooling Range and 100011001300mm Size for 5050-550350mm PCB Boards

Get Best Price

Panasonic NPM-D3A SMT Pick And Place Machine with Dual-Lane Capability High-Speed Performance and Advanced Vision System

Get Best Price

Contact Now

Product Description

Samsung SMT Pick And Place Machine SM421

High-speed placement machine delivering 21,000 components per hour with exceptional precision and cost-efficiency for SMT assembly operations.

Advanced Vision Technology

Features Samsung's patented On The Fly identification system for rapid component placement and high-pixel stage camera technology capable of recognizing micro-pitch components down to 0.4mm with 42mm recognition capability.

Key Features

High-speed placement: 21,000 CPH
Cost-effective operation and maintenance
Wide component range: 0402 microchips to 22mm IC components
Advanced flying vision technology for precision placement
Non-stop refueling feeder system for continuous operation

Technical Specifications

Placement Speed	21,000 CPH
Component Range	0402 to 55mm IC
Maximum PCB Size	460mm (L) * 400mm (W)
Placement Accuracy	±50μm
Vision System	45mm stage camera with On The Fly identification

Application Benefits

Ideal for high-volume PCB assembly lines requiring reliable, automated placement of diverse component sizes with minimal downtime and maximum production efficiency.
