Name: Real Z 3000A Solder Paste Thickness Tester with 0201 Minimum Measurable Element and Multiple Line Sharing for High Precision SMT Inspection
Brand: Global Soul Limited
SKU: Real Z 3000A
Availability: InStock

Home > Products > SMT Placement Machine >

Real Z 3000A Solder Paste Thickness Tester with 0201 Minimum Measurable Element and Multiple Line Sharing for High Precision SMT Inspection

SMT Solder Paste Thickness Tester

Solder Paste Thickness Tester SMT Equipment

Place of Origin:

Germany

Brand Name:

Real

Model Number:

Real Z 3000A

Document:

Product Brochure PDF

Request A Quote

Real Z 3000A Solder Paste Thickness Tester with 0201 Minimum Measurable Element and Multiple Line Sharing for High Precision SMT Inspection

Product Details

Measurement Principle:

Relative Method, Grating Ruler As The Benchmark

Resolution:

0.001 Mm

Absolute Accuracy:

≤0.003％

Repeatability Accuracy:

≤0.01％

Green Copper And Copper Foil Of Error Compensation:

Yes

Eliminate Deformation Error Of PCB:

Yes

Range:

30 Mm

Optical Magnification:

50 - 360X Continuous Stepless Zoom

Field:

10 X 7.5 - 1.2 X 0.8 Mm Adjust According To Demand

Maximum Size Of PCB:

400 X 600 Mm

Minimum Measurable Element:

0201, 01005, 0.2mm, Fine Pitch IC, BGA/CSP

Light Color:

White, Green, Blue And Turn Off Can Be Switched

Lighting Life:

More Than 1 Million Hours (LED Power)

Laser Wavelength And Power:

650nm, Micropower <5mW

Laser Lifetime:

5-10 Times Longer Than A Laser Without A Standby Function

Video Output InterfaceL:

USB

Video Resolution:

640 X 480 (can Choose 1280x960)

Video Total Pixel:

1 Million 300 Thousand Pixels

Video Type:

Color Image

Multiple Line Sharing:

Yes

SPC Statistical Function:

Bad Judgment, Average Value, Standard Deviation, Cpk, Bad Rate, Distribution Chart, Trend Chart, X, Bar-R Control Chart, Etc

Power And Power Dissipation:

Through USB Interface Power Supply, 2.5W Small Power Consumption

Hot Swap:

Yes (Power Failure Without Loss Of Measurement Data)

Weight And Size:

60kg, W600 X D550 X H650 Mm

Highlight:

SMT Solder Paste Thickness Tester

Solder Paste Thickness Tester SMT Equipment

Payment & Shipping Terms

Minimum Order Quantity

1 PCS

Price

USD+negotiable+pcs

Packaging Details

700*600*800 mm

Delivery Time

5-15 days

Payment Terms

T/T

Supply Ability

1+pcs+per days

Panasonic BM123 SMT Pick And Place Machine with 0.12s/chip Max Speed 50μm Placement Accuracy and 160 Double Tape Feeder

Get Best Price

Electric Steel Mesh Cleaning Machine with 25KW Power Double Liquid Tank and High Pressure Spray for SMT Cleaning

Get Best Price

SMT Cooling Temporary Storage Machine with 130℃ to 30℃/60s Cooling Range and 100011001300mm Size for 5050-550350mm PCB Boards

Get Best Price

Panasonic NPM-D3A SMT Pick And Place Machine with Dual-Lane Capability High-Speed Performance and Advanced Vision System

Get Best Price

Contact Now

Product Description

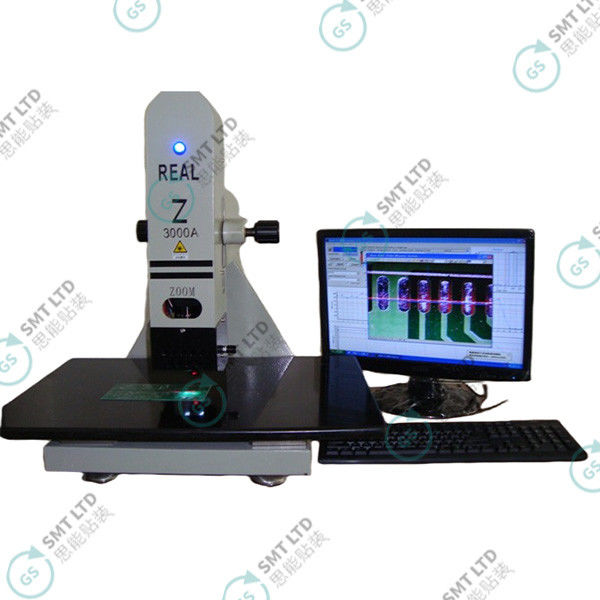

Real Z 3000A SMT Solder Paste Thickness Tester

Advanced automated inspection system for SMT production with multiple line sharing capability and 0201 minimum measurable element precision.

Key Features

Fully enclosed precision grating ruler for real-time calibration and closed-loop feedback
Relative measurement method eliminates PCB deformation errors and compensates for green oil/copper foil thickness variations
Large measurement range capable of handling double-sided panels, V-Cut groove depth, components, and BGA tin ball height
Granite measuring platform for wear resistance, stability, and electrostatic-free operation
Integrated solid base with adjustable level damping foot for optimal rigidity
Stepless magnification optical lens suitable for large pads down to 0201, 01005, and 0.2mm fine pitch components
Automatic laser focusing with consistent focal length maintenance
Long-life laser generator with automatic standby protection and adjustable brightness
Color camera for clear PCB feature identification with photo/video capability
Multi-color LED lighting adaptable for various PCB board colors
Multi-line simultaneous monitoring with group management and product switching
Real-time statistical analysis including mean, standard deviation, Cpk, defect rates, and control charts
Optional measurement functions for length, width, angle, proportion, area, coverage, volume, and weight
Excel/text data export capabilities with automatic storage and power failure protection
Universal computer compatibility with simple operation and fast measurement speed

Technical Specifications

Minimum Measurable Element	0201
Measurement Technology	2D SPI (Solder Paste Inspection)
Platform Material	Granite
Measurement Range	Double-sided panels, V-Cut grooves, BGA components
Data Export	Excel, Text format
Multi-line Support	Yes, with separate statistics and criteria

Applications

Ideal for SMT assembly line automation, PCB quality control, stencil printing accuracy verification, and high-speed inspection requirements in modern electronics manufacturing.

SMT Equipment, 2D SPI Technology, Solder Paste Height Measurement, Automated Inspection Systems, PCB Quality Control, SMT Assembly Line Automation, PCB Inspection Equipment, Stencil Printing Accuracy, High-Speed Inspection Machines, SMT Production Efficiency
