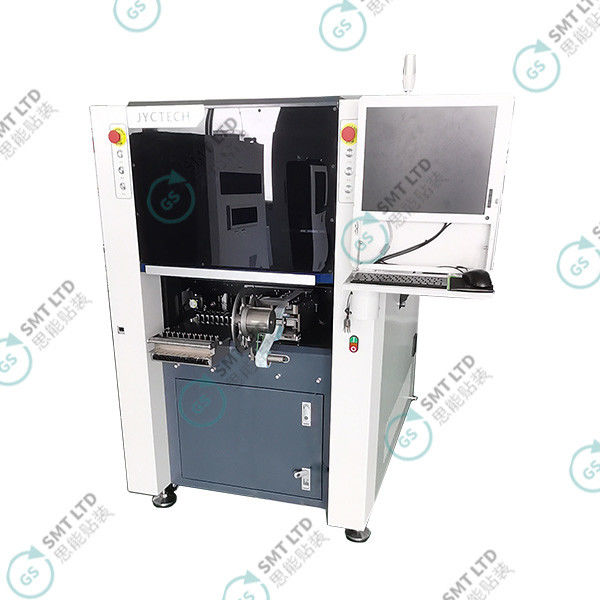

Name: Multi-functional Shielding Cover Attachment Machine with Intelligent Feeder Divider and Marble Material Workbench JYCT-4000
Brand: Global Soul Limited
SKU: JYCT-4000
Availability: InStock

Home > Products > SMT Placement Machine >

Multi-functional Shielding Cover Attachment Machine with Intelligent Feeder Divider and Marble Material Workbench JYCT-4000

Multi Functional Shielding Cover Attachment Machine

Auxiliary Shielding Cover Attachment Machine

Place of Origin:

China

Brand Name:

Model Number:

JYCT-4000

Document:

Product Brochure PDF

Request A Quote

Multi-functional Shielding Cover Attachment Machine with Intelligent Feeder Divider and Marble Material Workbench JYCT-4000

Product Details

Equipment Model:

JYCT-4000

Equipment Size:

1000(L)*1300(W)*1500(H)mm

PCB Size:

Min.50mm X 50mm Max.400 Mm X450 Mm

PCB Transmission:

L→R,L→L,R→L,R→R

Label Size:

Min.3*3mm Max.30*50mm

Placing Speed:

0.8-1.5sec/pcs

Placing Accuracy:

±0.05mm

Label Stripping Method:

Intelligent Feeder Divider

Material Rack Placement:

4PCS

Label Output Specification:

1-15PCS/row

Width Adjustment:

Adjustable Track Rear Movement

Equipment Interface:

SEMI Input/output 4-core International Standard Interface

Highlight:

Multi Functional Shielding Cover Attachment Machine

Auxiliary Shielding Cover Attachment Machine

Payment & Shipping Terms

Minimum Order Quantity

1 PCS

Price

USD+negotiable+pcs

Packaging Details

1100*1400*1600mm

Delivery Time

1-7 days

Payment Terms

T/T

Supply Ability

1+pcs+per days

Panasonic BM123 SMT Pick And Place Machine with 0.12s/chip Max Speed 50μm Placement Accuracy and 160 Double Tape Feeder

Get Best Price

Electric Steel Mesh Cleaning Machine with 25KW Power Double Liquid Tank and High Pressure Spray for SMT Cleaning

Get Best Price

SMT Cooling Temporary Storage Machine with 130℃ to 30℃/60s Cooling Range and 100011001300mm Size for 5050-550350mm PCB Boards

Get Best Price

Panasonic NPM-D3A SMT Pick And Place Machine with Dual-Lane Capability High-Speed Performance and Advanced Vision System

Get Best Price

Contact Now

Product Description

Multi Functional Auxiliary Material Shielding Cover Attachment Machine JYCT-4000

The JYCT-4000 is a multifunctional auxiliary material shielding cover installation machine designed for precision manufacturing applications. Built on the Windows operating system with self-developed software, it features an intuitive interface and intelligent operation modes for enhanced productivity.

Advanced Machine Design

The equipment utilizes a gantry structure for X and Y axes, providing superior expansibility and flexibility. Both the workbench and gantry are constructed from marble material, ensuring exceptional accuracy and long-term stability. The feeder system offers multiple feeding methods including push forward and pull back configurations, accommodating various material types with easy switching capabilities.

Primary Applications

Designed for SMT production lines, this machine handles PCB (printed circuit board) applications including QR code labels, adhesive paper, pot pieces, thermal silicone, shielding covers, and other auxiliary materials.

Application Scope

PCB Board Applications: Two-dimensional codes, adhesive paper, pot pieces, thermal silicone, shielding covers
FPC Adhesive Applications: Pressure sensitive adhesive, PI, conductive adhesive, foam, QR codes, pot pieces, double-sided adhesive
Display Module Applications: Heat dissipation graphite sheets, conductive adhesive, QR codes, double-sided adhesive
Camera Module Applications: Foam, conductive adhesive, high-temperature adhesive, double-sided adhesive, QR codes
Fingerprint Module Applications: Foam, conductive adhesive, high temperature adhesive, PI, double-sided adhesive
TWS Bluetooth Module Applications: Myra, QR codes, air filters
Wireless Charging Module Applications: Double-sided tape, high-temperature glue, QR codes

Target Industries

Mobile Phone Industry

TWS Industry

TP Industry

Laptop Industry

Wireless Charging Industry

FPC Industry

Quality Assurance

The main moving components are manufactured using imported parts to ensure operational stability, reliability, and consistent performance in demanding production environments.
