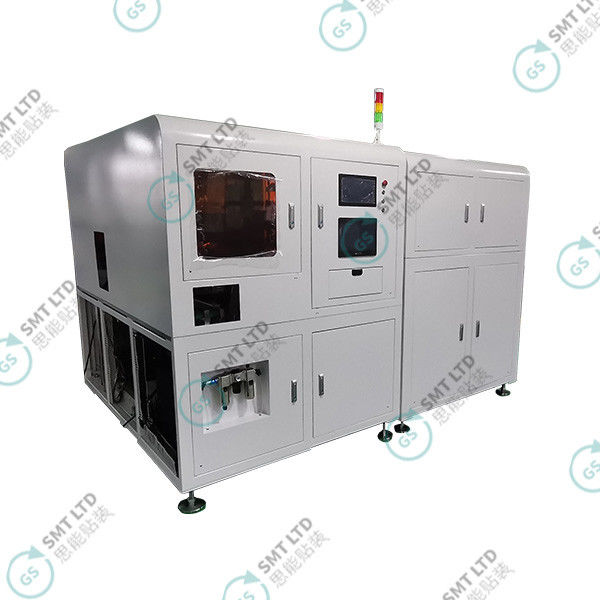

SMT Setting Machine with Multi-axis Servo System and Electrostatic Removal Device for Tray Automatic Feeding System (2800*2000*1800mm)

SMT Setting Machine with Multi-axis Servo System and Electrostatic Removal Device for Tray Automatic Feeding System (280020001800mm)

SMT Setting machine

Place of Origin:

China

Brand Name:

Document:

Product Brochure PDF

Request A Quote

SMT Setting Machine with Multi-axis Servo System and Electrostatic Removal Device for Tray Automatic Feeding System (2800*2000*1800mm)

Product Details

Overall Size:

2800*2000*1800mm

Suitable For PCB Board Size:

114*80*8MM (size Is Not Limited, Other Sizes According To Customer Requirements)

Suitable For Tray Size:

402*353*24 (length * Width * Height) (size Is Not Limited, Other Sizes Customized According To Customer Requirements)

Accuracy:

+/-0.5mm (without Visual Positioning); +/-0.1mm (with Visual Positioning)

Highlight:

SMT Setting machine

Payment & Shipping Terms

Minimum Order Quantity

1 PCS

Price

USD+negotiable+pcs

Packaging Details

3000*2100*1900mm

Delivery Time

1-7 days

Payment Terms

T/T

Supply Ability

1+pcs+per days

Panasonic BM123 SMT Pick And Place Machine with 0.12s/chip Max Speed 50μm Placement Accuracy and 160 Double Tape Feeder

Get Best Price

Electric Steel Mesh Cleaning Machine with 25KW Power Double Liquid Tank and High Pressure Spray for SMT Cleaning

Get Best Price

SMT Cooling Temporary Storage Machine with 130℃ to 30℃/60s Cooling Range and 100011001300mm Size for 5050-550350mm PCB Boards

Get Best Price

Panasonic NPM-D3A SMT Pick And Place Machine with Dual-Lane Capability High-Speed Performance and Advanced Vision System

Get Best Price

Contact Now

Product Description

SMT Setting Machine 2800*2000*1800mm

Application Overview

This automatic tray equipment, also known as tray automatic feeding system, is a multi-axis servo system specifically developed for multi-tray feeding applications in the SMT industry. Designed for automatic placement machines, inspection machines, and dispensing machines, this system utilizes multi-axis servo stepping technology to achieve automatic plate switching, feeding, and recovery operations.

The system is also compatible with various processing machines including CNC lathes, grinders, drilling machines, and milling machines, providing comprehensive automatic loading and unloading capabilities.

Key Features & Specifications

Integrated electrostatic removal device at the entrance to minimize bad patches and electrostatic damage during the mounting process
Built-in counting function and numerical control speed display for precise operation monitoring
PCBA turn-over capability with 180° rotation on the loading platform
Advanced scanning code functionality with MES and ERP system integration for NG/OK signal transmission
Dedicated NG board storage area capable of storing multiple rejected boards
AGV interface compatibility for automated guided vehicle connectivity
Rotary TRAY tray system ensuring continuous manipulator operation and increased productivity
High-capacity 4-station rotating magazine storing up to 160 blister disks (402*353*24mm)
Universal adjustable vacuum suction system with simple adjustment for compatibility with various product sizes
Modular design with mature structure and full closed-loop control for maximum reliability
