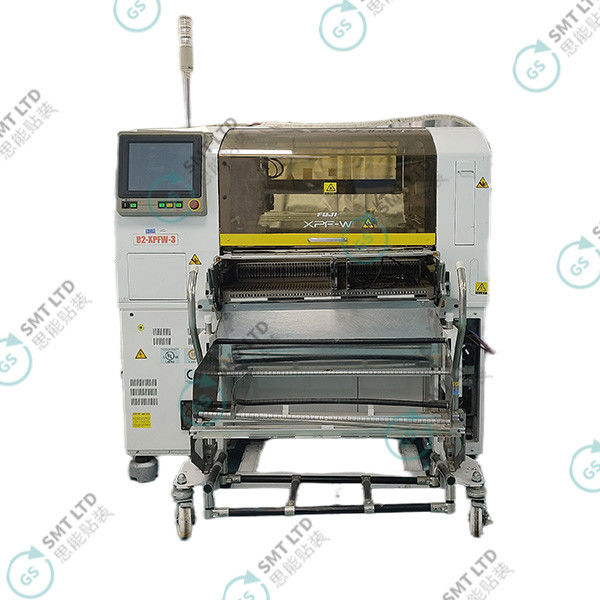

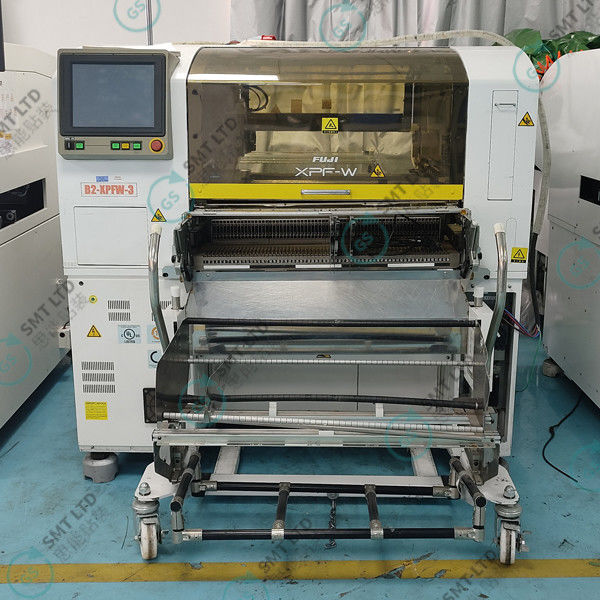

FUJI XPF-W High-Speed SMT Pick and Place Machine with Versatile Component Handling and On-the-Fly Centering for PCB Assembly

Product Details

Model:

FUJI XPF-W

PCB Size:

L50mm X W50mm To L686mm X W508mm

PCB Thickness:

0.4–6.5mm

PCB Loading Time:

3.5 Sec

External Dimension:

L1500 X W1762.5 X H1422.5mm

Weight:

Approx. 1860kg （without MFU Mounted）

Highlight:

Multi Purpose SMT Pick And Place Machines

PCB SMT Pick And Place Machines

SMT PCB Pick And Place Machine

Payment & Shipping Terms

Minimum Order Quantity

1 pcs

Price

USD+negotiable+pcs

Packaging Details

1800*2000*1650mm

Delivery Time

1-7 days

Payment Terms

T/T

Supply Ability

1+pcs+per days

Panasonic BM123 SMT Pick And Place Machine with 0.12s/chip Max Speed 50μm Placement Accuracy and 160 Double Tape Feeder

Get Best Price

Electric Steel Mesh Cleaning Machine with 25KW Power Double Liquid Tank and High Pressure Spray for SMT Cleaning

Get Best Price

SMT Cooling Temporary Storage Machine with 130℃ to 30℃/60s Cooling Range and 100011001300mm Size for 5050-550350mm PCB Boards

Get Best Price

Panasonic NPM-D3A SMT Pick And Place Machine with Dual-Lane Capability High-Speed Performance and Advanced Vision System

Get Best Price

Contact Now

Product Description

FUJI XPF-W Multi Purpose SMT Pick And Place Machines For PCB Production

The FUJI XPF-L/W High-speed Multi-Purpose Mounter is a state-of-the-art machine engineered to enhance productivity and flexibility in electronics manufacturing. This advanced system excels in high-speed component placement while maintaining adaptability for diverse surface-mount technology (SMT) applications, making it ideal for modern, complex production environments.

Key Functions

High-Speed Component Placement: Equipped with high-speed heads for rapid and precise placement of components ranging from small chips to larger ICs, optimizing throughput while maintaining accuracy.
Versatile Component Handling: Capable of processing 0201 metric microchips, odd-shaped components, and larger devices like connectors, providing exceptional flexibility for various SMT applications.
On-the-Fly Component Centering: High-precision vision system performs real-time component centering during placement, ensuring accuracy at high speeds and minimizing placement errors.
Multi-Function Head: Single head configuration handles standard components, odd-form parts, and large connectors, eliminating the need for multiple machines or manual intervention.
Automatic Feeder Exchange: Supports automatic feeder exchange with cart swapping capabilities, enabling continuous production and efficient material replenishment.
Flexible PCB Handling: Accommodates wide range of PCB sizes from small boards to complex panels with adjustable conveyor system for various production requirements.
Nozzle Changer System: Automatic nozzle changer stores multiple nozzle types and exchanges them during operation, enhancing productivity and flexibility.
Advanced Software Integration: Seamlessly integrates with FUJI's proprietary software for full machine control, programming, real-time monitoring, and remote diagnostics.
Non-Stop Operation: Dynamic load balancing distributes work evenly across multiple heads, ensuring continuous operation and preventing bottlenecks.
Hybrid Placement Capability: Supports both chip shooting and fine-pitch placement in one unit, reducing the need for multiple machines in production lines.

Key Features

Compact Design: Space-efficient footprint suitable for factories with limited space, easily integrated into existing production lines.
High Precision and Accuracy: Advanced motion control systems and precision placement heads ensure exceptional accuracy for high-density boards.
Scalable for High Mix/Low Volume: Fast setup times and automatic changeover functions ideal for environments with frequent product changes.
Wide Component Size Range: Handles components from 0201 microchips to large ICs and connectors for comprehensive PCB assembly solutions.
User-Friendly Interface: Intuitive, easy-to-navigate interface simplifies setup, operation, and real-time performance monitoring.
Energy-Efficient Design: Incorporates energy-efficient technologies to reduce power consumption and operating costs.
Built-in Error Detection: Advanced error detection systems identify and correct misplacements, minimizing rework and reducing waste.
Modular Design: Modular structure enables easy maintenance and upgrades with quick component replacement capabilities.
Wide Operating Range: Robust design ensures consistent performance across various production environments and board types.
Industry Standards Compliance: Meets latest industry standards for SMT equipment including quality control, precision, and safety requirements.

The FUJI XPF-L/W High-speed Multi-Purpose Mounter represents a comprehensive solution for electronics manufacturers seeking to optimize SMT processes, reduce downtime, and improve overall productivity. Its combination of speed, precision, and versatility makes it suitable for both high-volume production and frequently changing product lines.
