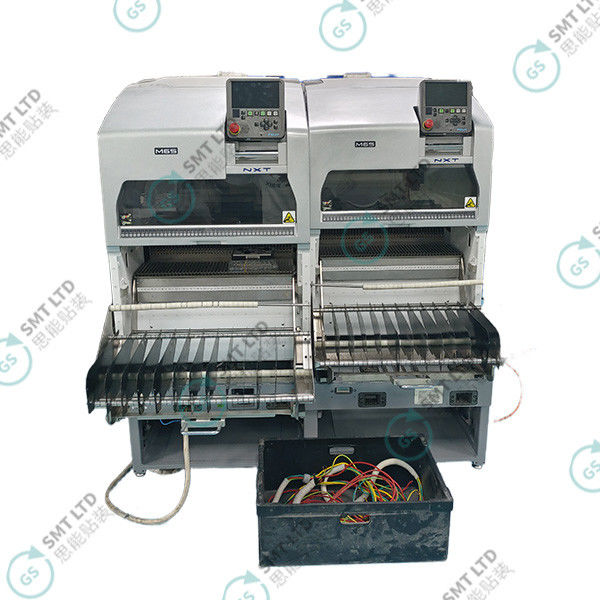

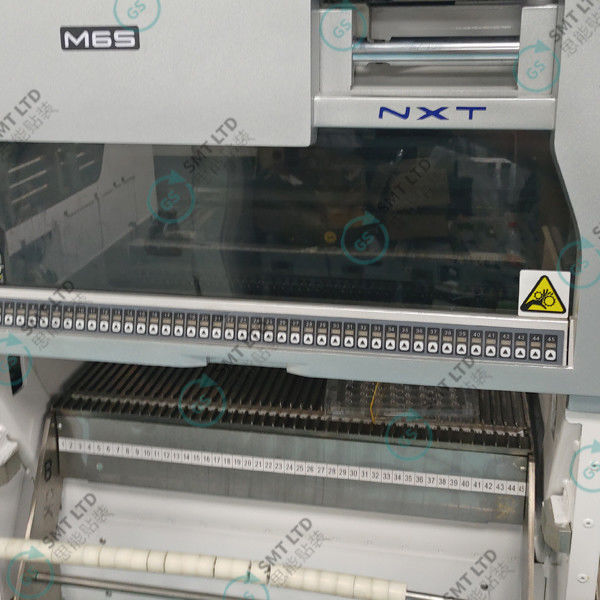

High Precision FUJI NXT M6S SMT Pick And Place Machine with ±0.025 mm Accuracy Modular Design and Dual-Lane Operation for PCB Assembly

High Precision Fuji SMT Pick And Place Machine

M6S Fuji SMT Pick And Place Machine

Pick And Place Machine For PCB Assembly

Place of Origin:

Japan

Brand Name:

FUJI

Model Number:

M6S

Document:

Product Brochure PDF

Request A Quote

High Precision FUJI NXT M6S SMT Pick And Place Machine with ±0.025 mm Accuracy Modular Design and Dual-Lane Operation for PCB Assembly

Product Details

Model:

M6S

Series:

Fuji NXT Series

Category:

SMT Pick-and-place Machine

Accuracy:

±0.025 Mm (with Advanced Vision Recognition System)

Repeatability:

Highly Consistent With Advanced Servo Motors And Control Systems

Component Size Range:

From 01005 Chips (0.4 X 0.2 Mm) To Large, Odd-shaped Components Up To 74 Mm X 74 Mm

Component Types:

Can Handle A Wide Variety Of Components, Including Resistors, Capacitors, ICs, And Large Odd-form Components.

Configurable Modules:

The M6S Offers A Modular Architecture, Allowing For Flexibility In Machine Configuration According To Production Needs

Scalability:

Additional Modules Can Be Added To Enhance Production Capacity Or Diversify Functionality

Dual-Lane Operation:

Supports Dual-lane PCB Production, Allowing For Simultaneous Processing Of Different PCB Types

Feeder Capacity:

Supports Up To 130 Feeders Per Module Depending On Configuration

Feeder Type:

Intelligent Automatic Feeders For Quick Setup And Exchange

Feeder Options:

Compatible With Tape Feeders, Tray Feeders, Bulk Feeders, And Stick Feeders

Advanced Vision System:

Integrated High-resolution Cameras For Precise Component Recognition, Positioning, And Inspection

Maximum PCB Size:

508 Mm X 610 Mm (with Dual-lane Configuration)

Minimum PCB Size:

50 Mm X 50 Mm

PCB Thickness:

Supports A Wide Range Of PCB Thicknesses, From 0.3 Mm To 4.0 Mm

Machine Dimensions:

Approximately 1,300 Mm (L) X 1,300 Mm (W) X 1,600 Mm (H)

Highlight:

High Precision Fuji SMT Pick And Place Machine

M6S Fuji SMT Pick And Place Machine

Pick And Place Machine For PCB Assembly

Payment & Shipping Terms

Minimum Order Quantity

1 pcs

Price

USD+negotiable+pcs

Packaging Details

1800*1800*2100mm

Delivery Time

1-7 days

Payment Terms

T/T

Supply Ability

1+pcs+per days

Panasonic BM123 SMT Pick And Place Machine with 0.12s/chip Max Speed 50μm Placement Accuracy and 160 Double Tape Feeder

Get Best Price

Electric Steel Mesh Cleaning Machine with 25KW Power Double Liquid Tank and High Pressure Spray for SMT Cleaning

Get Best Price

SMT Cooling Temporary Storage Machine with 130℃ to 30℃/60s Cooling Range and 100011001300mm Size for 5050-550350mm PCB Boards

Get Best Price

Panasonic NPM-D3A SMT Pick And Place Machine with Dual-Lane Capability High-Speed Performance and Advanced Vision System

Get Best Price

Contact Now

Product Description

High Precision M6S FUJI SMT Pick And Place Machine For PCB Assembly

The FUJI NXT M6S is part of FUJI's NXT series of high-performance SMT (Surface Mount Technology) machines, designed for high-speed, precision component placement in modern electronics manufacturing.

Key Functions

High-Speed Component Placement: Capable of placing a wide variety of components at high speeds, from small chip components to larger, more complex parts
Flexible Production Capabilities: Supports a wide range of PCB sizes and shapes, suitable for both small and large-scale production runs
Modular Design: Customizable configuration allows modules to be easily added or removed to meet production demands
Smart Nozzle Features: Intelligent nozzles automatically change depending on the component being placed, improving accuracy and reducing setup times
Multi-Function Heads: Placement heads handle multiple component types and sizes, reducing the need for multiple machines and increasing efficiency
High Precision Vision System: Advanced vision systems ensure precise alignment and placement of components, maintaining quality control and minimizing errors

Key Features

Compact Size: Designed to take up minimal floor space, suitable for manufacturers with limited space
High Component Variety: Supports components from 01005 size chips to larger components such as ICs or connectors
Auto-Calibration: Automatically calibrates for optimal performance, reducing manual setup time and increasing production throughput
Reduced Downtime: Quick changeover features and modular design optimize operational efficiency between production runs
User-Friendly Interface: Intuitive graphical user interface makes programming and control easier for operators
Energy Efficiency: Energy-saving features make it more eco-friendly compared to older models

This machine is ideal for manufacturers who need flexibility, high precision, and fast turnaround in SMT production environments.
