Name: Panasonic NPM-TT2 NM-EJM1E High-Speed SMT Mounter Machine with Dual-Lane Capability and Advanced Vision System
Brand: Global Soul Limited
SKU: NPM-TT2 / NM-EJM1E
Availability: InStock

Home > Products > SMT Placement Machine >

Panasonic NPM-TT2 NM-EJM1E High-Speed SMT Mounter Machine with Dual-Lane Capability and Advanced Vision System

SMT Pick And Place Equipment High Speed

NM-EJM1E SMT Pick And Place Equipment

NPM-TT2 SMT Mounter Machine

Place of Origin:

Japan

Brand Name:

Panasonic

Model Number:

NPM-TT2 / NM-EJM1E

Document:

Product Brochure PDF

Request A Quote

Panasonic NPM-TT2 NM-EJM1E High-Speed SMT Mounter Machine with Dual-Lane Capability and Advanced Vision System

Product Details

Model ID:

NPM-TT2

Model No:

NM-EJM1E

PCB Dimensions (mm):

M Size

Single-lane Mode:

L 50 X W 50 ~ L 510 X W 510

Dual-lane Mode:

0 S* *No 0s When Cycle Time Is 4.0 S Or Less

PCB Exchange Time:

Single-lane Mode: 4.0 S (With No Component Mounted On The Reverse Side Of PCB)

Electric Source:

3-phase AC 200, 220, 380, 400, 420, 480 V 2.5 KVA

Pneumatic Source:

Min.0.5 MPa, 200 L /min (A.N.R.)

Dimensions (mm):

W 1,300 [*2] X D 2,798 [*3] X H 1,444 [*4]

Mass:

2,690 Kg

Highlight:

SMT Pick And Place Equipment High Speed

NM-EJM1E SMT Pick And Place Equipment

NPM-TT2 SMT Mounter Machine

Payment & Shipping Terms

Minimum Order Quantity

1 pcs

Price

USD+negotiable+pcs

Packaging Details

1600*3200*1700mm

Delivery Time

1-7 days

Payment Terms

T/T

Supply Ability

1+pcs+per days

Panasonic BM123 SMT Pick And Place Machine with 0.12s/chip Max Speed 50μm Placement Accuracy and 160 Double Tape Feeder

Get Best Price

Electric Steel Mesh Cleaning Machine with 25KW Power Double Liquid Tank and High Pressure Spray for SMT Cleaning

Get Best Price

SMT Cooling Temporary Storage Machine with 130℃ to 30℃/60s Cooling Range and 100011001300mm Size for 5050-550350mm PCB Boards

Get Best Price

Panasonic NPM-D3A SMT Pick And Place Machine with Dual-Lane Capability High-Speed Performance and Advanced Vision System

Get Best Price

Contact Now

Product Description

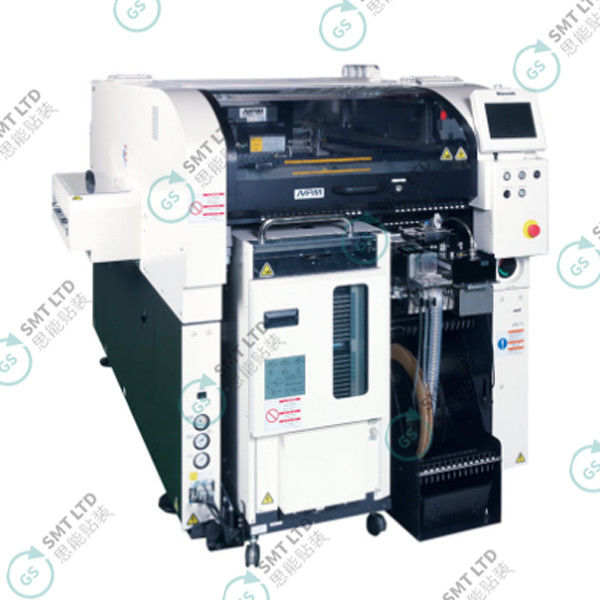

Panasonic NPM-TT2 (NM-EJM1E) High-Speed SMT Mounter

The Panasonic NPM-TT2 (NM-EJM1E) is a cutting-edge high-speed Surface Mount Technology (SMT) mounter engineered for maximum efficiency and precision in electronics manufacturing. This advanced machine handles diverse components with exceptional speed and accuracy.

Key Features

High-Speed Operation: Rapid component placement capabilities significantly increase production throughput
Flexible Configuration: Supports diverse components from small chips to large ICs for various production requirements
Advanced Vision System: State-of-the-art vision technology ensures precise alignment and placement accuracy
Dual-Lane Capability: Simultaneous processing of different boards enhances overall productivity
User-Friendly Interface: Intuitive controls and software streamline setup and operation, reducing downtime

Performance Benefits

Increased Productivity: Boosts manufacturing output with fast and accurate placement capabilities
Enhanced Adaptability: Easily configurable for different product lines, ideal for high-mix production environments
Superior Quality: Reduces placement errors, leading to higher product quality and fewer defects

Industrial Applications

The Panasonic NPM-TT2 (NM-EJM1E) is ideal for consumer electronics, automotive electronics, telecommunications, and other industries where speed and precision are critical for manufacturing success.

Optimized SMT Assembly: With its combination of high-speed operation, flexibility, and precision, the Panasonic NPM-TT2 (NM-EJM1E) High-Speed SMT Mounter is an excellent choice for manufacturers seeking to optimize their SMT assembly processes. Its robust performance and versatility make it a valuable asset in any production line.
