Name: Yamaha YS12F SMT Pick and Place Machine with High-Speed Placement, Flexible Component Handling, and Precision Alignment
Brand: Global Soul Limited
SKU: YS12F/KKJ-000
Availability: InStock

Home > Products > SMT Placement Machine >

Yamaha YS12F SMT Pick and Place Machine with High-Speed Placement, Flexible Component Handling, and Precision Alignment

Used SMT Pick And Place Machines

YS12F SMT Pick And Place Machines

Place of Origin:

Japan

Brand Name:

YAMAHA

Model Number:

YS12F/KKJ-000

Document:

Product Brochure PDF

Request A Quote

Yamaha YS12F SMT Pick and Place Machine with High-Speed Placement, Flexible Component Handling, and Precision Alignment

Product Details

Model:

KKJ-000

Applicable PCB:

L510mm X W460mm To L50mm X W50mm

Mounting Accuracy:

Absolute Accuracy（μ＋3σ） +/-0.05mm/CHIP

Mounting Tact:

20,000CPH（under Our Optimum Condition）

Component Supply:

Tape Reel, Tray

Number Of Component Types:

Tape Package Components:

106 Types（Max/8mm Tape Reel Conversion）

Tray Package Conversion:

15 Types（Max/JEDEC Tray Conversion）

Applicable Components:

0402 To 45x100mm, Including Ball Type Electrode Components *32x32mm Or More Needs Special Nozzle Set

Applicable Height:

15mm

Power Supply:

3-Phase AC 200/208/220/240/380/400/416 V +/-10%

Air Supply Source:

0.45MPa

External Dimension:

L1,254 X W1,755 X H1,475mm （when ATS15 Mounted; Not Include The Projection）

Weight:

Approx. 1,370kg （when ATS15 Mounted）

Highlight:

Used SMT Pick And Place Machines

YS12F SMT Pick And Place Machines

Payment & Shipping Terms

Minimum Order Quantity

1 pcs

Price

USD+negotiable+pcs

Packaging Details

1500*2000*1800mm

Delivery Time

1-7 days

Payment Terms

T/T

Supply Ability

1+pcs+per days

Panasonic BM123 SMT Pick And Place Machine with 0.12s/chip Max Speed 50μm Placement Accuracy and 160 Double Tape Feeder

Get Best Price

Electric Steel Mesh Cleaning Machine with 25KW Power Double Liquid Tank and High Pressure Spray for SMT Cleaning

Get Best Price

SMT Cooling Temporary Storage Machine with 130℃ to 30℃/60s Cooling Range and 100011001300mm Size for 5050-550350mm PCB Boards

Get Best Price

Panasonic NPM-D3A SMT Pick And Place Machine with Dual-Lane Capability High-Speed Performance and Advanced Vision System

Get Best Price

Contact Now

Product Description

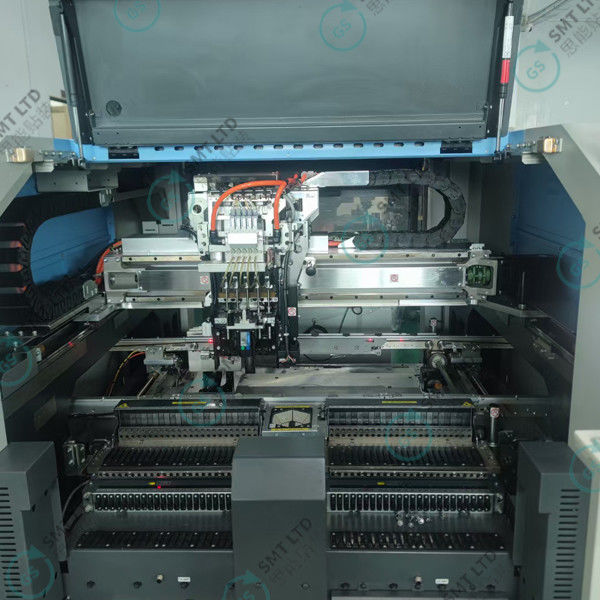

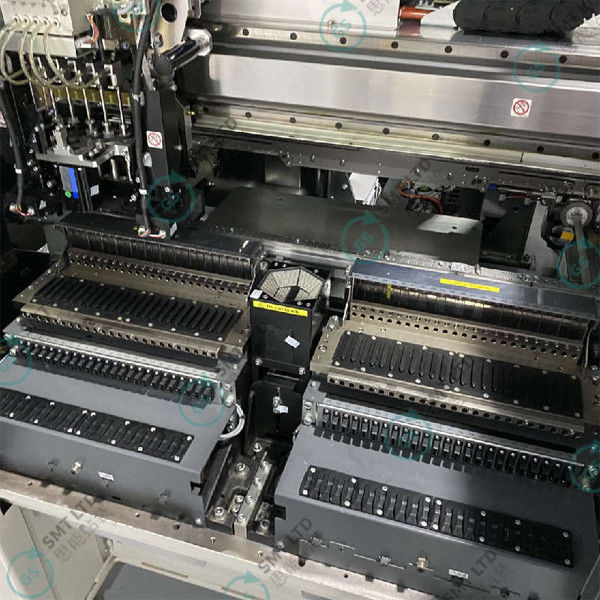

YS12F Used Original YAMAHA SMT Pick And Place Machines KKJ-000

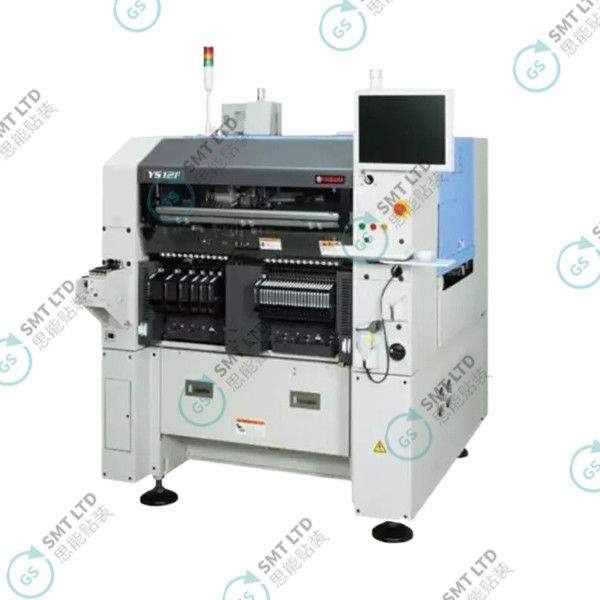

Yamaha YS12F Overview

The Yamaha YS12F is a compact and efficient SMT (Surface Mount Technology) machine engineered for high-speed and accurate component placement in electronic assembly operations.

Key Functions

High-Speed Placement: Optimized for rapid component placement to maximize production efficiency
Flexible Component Handling: Capable of processing various component types and sizes for versatile production requirements
Precision Alignment: Utilizes advanced vision systems for accurate component alignment and placement

Machine Features

Compact Design: Space-saving footprint ideal for diverse production environments
User-Friendly Interface: Intuitive controls and software simplify operation and reduce setup time
Multi-Function Capability: Supports both high-mix, low-volume production and high-volume manufacturing
Reliable Performance: Ensures consistent quality output with minimal operational downtime

Industry Applications

Ideal for industries including consumer electronics, automotive manufacturing, and telecommunications where precision assembly and production efficiency are critical requirements.

Performance Summary

The Yamaha YS12F combines exceptional speed, precision placement accuracy, and operational flexibility, making it an optimal solution for enhancing SMT assembly process efficiency.
