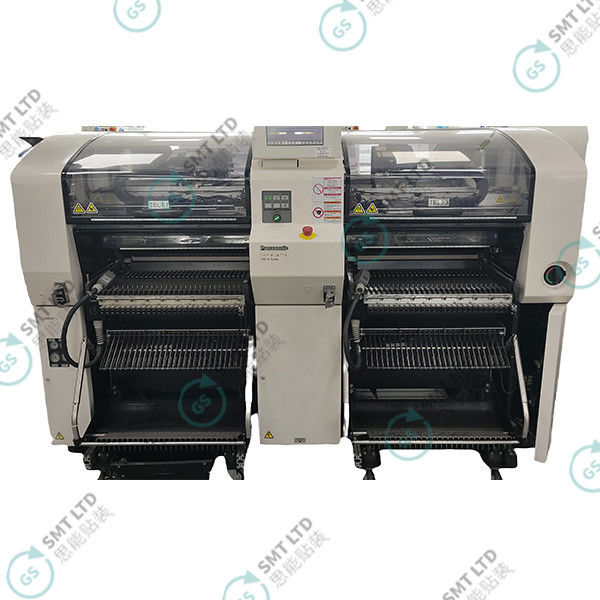

Name: Panasonic CM602-L High-Speed SMT Placement Machine with 20 000 cph Speed, 12 Nozzles, and ± 35 μm Accuracy
Brand: Global Soul Limited
SKU: CM602-L,NM-EJM8A
Availability: InStock

Home > Products > SMT Placement Machine >

Panasonic CM602-L High-Speed SMT Placement Machine with 20 000 cph Speed, 12 Nozzles, and ± 35 μm Accuracy

NM-EJM8A

High Speed SMT Placement Machine

SMT Placement Machine CM602-L

Place of Origin:

Japan

Brand Name:

Panasonic

Model Number:

CM602-L,NM-EJM8A

Document:

Product Brochure PDF

Request A Quote

Panasonic CM602-L High-Speed SMT Placement Machine with 20 000 cph Speed, 12 Nozzles, and ± 35 μm Accuracy

Product Details

Model Name:

CM602-L

Model:

NM-EJM8A

Substrate Size:

L 50 Mm × W 50 Mm ～ L 510 Mm × W 460 Mm

High-speed Placement Head:

12 Nozzles

Placement Speed:

20 000 Cph (0.18 S / QFP)

Mounting Accuracy:

± 35 μm / QFP (Cpk ≧ 1)

Component Size:

0603 Chip ~ L 100 Mm × W 90 Mm × T 25 Mm * 7

Universal Mounting Head:

LS 8 Nozzles

Universalized Ver.5 Option:

0402 Chip * 5 ～ L 100 Mm × W 50 Mm × T 15 Mm * 6

Multi-function Placement:

3 Nozzles

Power Supply:

Three-phase AC 200, 220, 380, 400, 420, 480 V, 4.0 KVA

Air Pressure Source:

1m0.49 MPa, 170 L / Min (A.N.R.)

Equipment Size:

W2350 × D2290 × H1430 (mm)

Weight:

3400 Kg

Highlight:

NM-EJM8A

High Speed SMT Placement Machine

SMT Placement Machine CM602-L

Payment & Shipping Terms

Minimum Order Quantity

1/pcs

Price

USD+negotiable+pcs

Packaging Details

2600*2500*1800mm

Delivery Time

1-7 days

Payment Terms

T/T

Supply Ability

1+pcs+ per days

Panasonic BM123 SMT Pick And Place Machine with 0.12s/chip Max Speed 50μm Placement Accuracy and 160 Double Tape Feeder

Get Best Price

Electric Steel Mesh Cleaning Machine with 25KW Power Double Liquid Tank and High Pressure Spray for SMT Cleaning

Get Best Price

SMT Cooling Temporary Storage Machine with 130℃ to 30℃/60s Cooling Range and 100011001300mm Size for 5050-550350mm PCB Boards

Get Best Price

Panasonic NPM-D3A SMT Pick And Place Machine with Dual-Lane Capability High-Speed Performance and Advanced Vision System

Get Best Price

Contact Now

Product Description

High Speed SMT Placement Machine Used Panasonic CM602-L NM-EJM8A

The Panasonic CM602-L NM-EJM8A is a cutting-edge high-speed placement machine designed for efficiency and precision in the electronics manufacturing industry. Known for its reliability and versatility, this model excels in handling a wide range of components, making it ideal for high-mix production environments.

Key Features

High-Speed Operation: With its advanced motion control technology, the CM602-L achieves remarkable placement speeds, significantly boosting productivity.
Flexible Configuration: The machine supports various component sizes and types, from small chips to large ICs, accommodating diverse production needs.
Dual Conveyor System: This feature allows simultaneous handling of multiple PCBs, reducing downtime and improving throughput.
Precision and Accuracy: Equipped with Panasonic's state-of-the-art vision system, it ensures precise alignment and placement of components.

Benefits

Increased Efficiency: The combination of speed and precision leads to reduced cycle times and higher output.
Adaptability: Easily adapts to changes in production requirements, making it suitable for different product lines.
Reliability: Built with robust components, it ensures consistent performance in demanding manufacturing environments.

The Panasonic CM602-L NM-EJM8A is a powerful solution for manufacturers looking to enhance their SMT assembly capabilities, focusing on speed, flexibility, and reliability.
