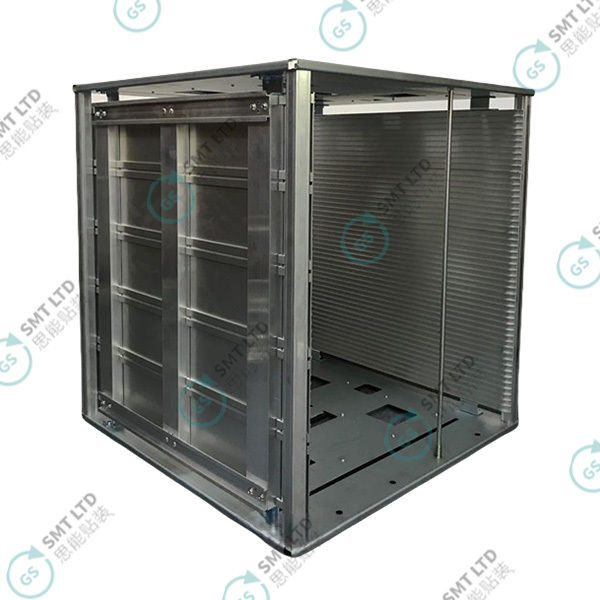

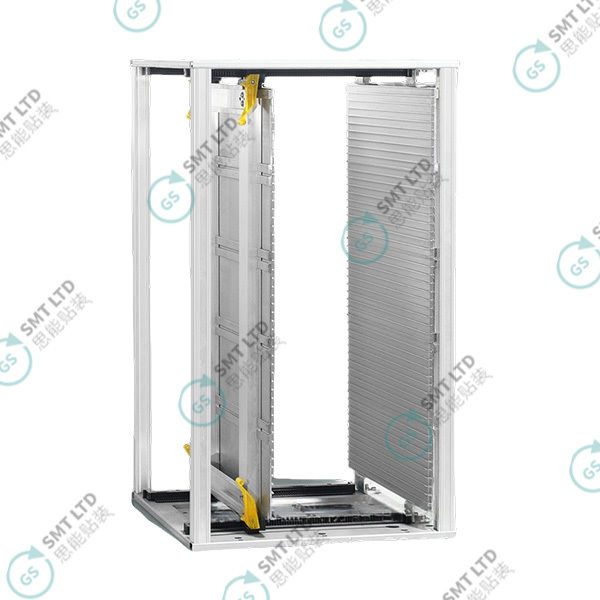

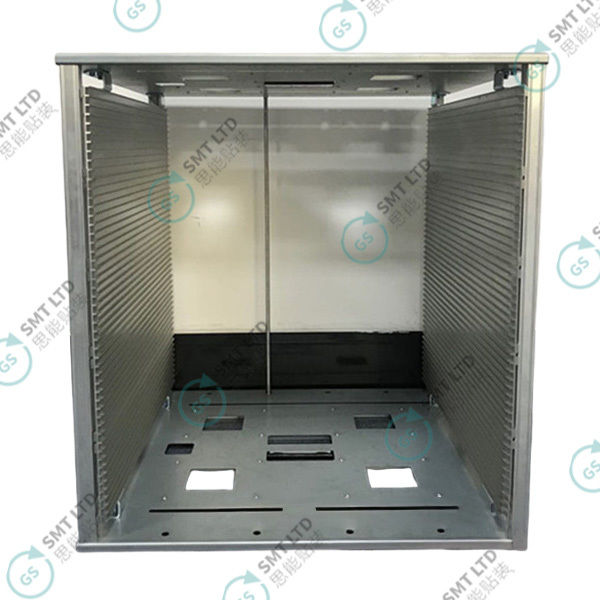

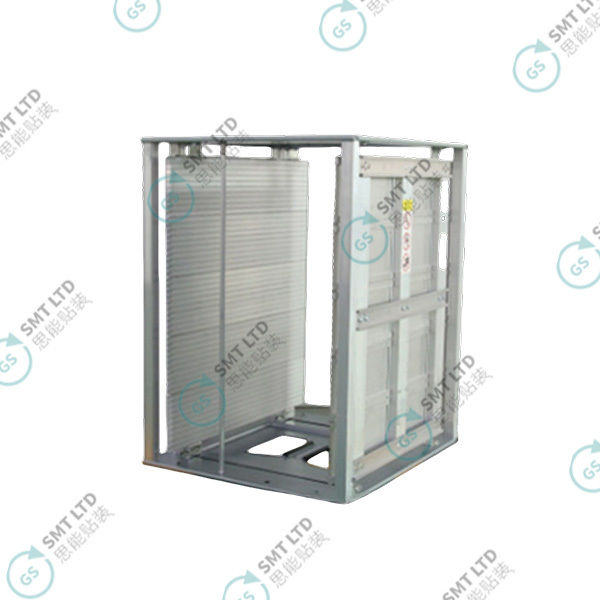

ESD SMT PCB Storage Magazine Rack with Aluminum Alloy Material and Gear-Type Adjustment 630*530*570MM

ESD SMT PCB Storage Magazine Rack with Aluminum Alloy Material and Gear-Type Adjustment 630530570MM

Aluminum alloy PCB Magazine Rack

Gear-type adjustment ESD Storage Rack

630530570MM ESD SMT PCB Storage Magazine Rack

Place of Origin:

China

Brand Name:

Document:

Product Brochure PDF

Request A Quote

Product Details

Highlight:

Aluminum alloy PCB Magazine Rack

Gear-type adjustment ESD Storage Rack

630530570MM ESD SMT PCB Storage Magazine Rack

Payment & Shipping Terms

Minimum Order Quantity

1 PCS

Price

USD+negotiable+pcs

Packaging Details

650*550*600mm

Delivery Time

1-7 days

Payment Terms

T/T

Supply Ability

1+pcs+per days

GSCJ-8301B1-5 Automatic PCB Magazine Loader with Handle Adjustment and Plate Metal Base for 355 x 500 x 563 mm Storage

Get Best Price

Aluminum Alloy Anti Static PCB Magazine Rack with Adjustable Width 85-250 mm for SMT Loader and Unloader

Get Best Price

GSCJ-8301B1 SMT PCB Magazine Rack with 50 PCB Slots and Adjustable Width 35-250 mm for ESD PCB Storage

Get Best Price

GSCJ-8301B1-1 Anti-Static SMT Loading and Unloading Rack with 50 PCB Slots for PCB Transfer Box (355 x 320 x 563 mm)

Get Best Price

Contact Now

Product Description

ESD SMT PCB Storage Magazine Rack - Aluminum Alloy Material 630×530×570mm

Product Overview

This ESD SMT PCB Storage Magazine Rack is constructed from durable aluminum alloy and designed for efficient PCB storage and handling in SMT manufacturing environments.

Key Features

ESD detection safety qualified for electrostatic protection
Gear-type adjustment mechanism for convenient operation
Smooth plate placement and retrieval
Easy loading onto SMT machines
Customizable to meet non-standard requirements

Product Image

Installation Instructions

Press the gear bar firmly into position
Secure the four upright columns with screws
Fix the side panel by aligning with holes and tightening screws
Move the movable side panel to align with round holes of the snap
Install the base plate by pushing up the round head of the snap and moving into position
Install the lever at the spring position downward to complete assembly
