SMT Loading and Unloading Rack 460*400*563mm with PP Side Panel and Galvanized Base Plates for PCB Magazine Rack

SMT Loading and Unloading Rack 460*400*563mm with PP Side Panel and Galvanized Base Plates for PCB Magazine Rack

460*400*563mm SMT Loading and Unloading Rack

PP Side Panel PCB Magazine Rack

Galvanized Base Plates ESD Storage Rack

Place of Origin:

China

Brand Name:

GS

Model Number:

GS460400563

Document:

Product Brochure PDF

Contact Us
Request A Quote
SMT Loading and Unloading Rack 460*400*563mm with PP Side Panel and Galvanized Base Plates for PCB Magazine Rack
SMT Loading and Unloading Rack 460*400*563mm with PP Side Panel and Galvanized Base Plates for PCB Magazine Rack
Product Details
Product Name:
SMT Loading And Unloading Rack
Product Specifications:
460*400*563mm
Adjustable Range:
460*(50 - 330)mm
Reference Positions:
A 34mm, B 34mm
Product Material:
PP Side Panel. Galvanized Upper And Lower Base Plates
Side Panel Slot Width:
5mm
Side Panel Slot Depth:
3mm
Side Panel Structure:
5 Pieces Assembled
Slot Spacing/Number:
10mm / 50 PCS
Condition:
New
Highlight:

460*400*563mm SMT Loading and Unloading Rack

,

PP Side Panel PCB Magazine Rack

,

Galvanized Base Plates ESD Storage Rack

Payment & Shipping Terms
Minimum Order Quantity
1 PCS
Price
USD+negotiable+pcs
Packaging Details
500*150*600mm
Delivery Time
1-7 days
Payment Terms
T/T
Supply Ability
1+pcs+per days
RELATED PRODUCTS
Good price GSCJ-8301B1-5 Automatic PCB Magazine Loader with Handle Adjustment and Plate Metal Base for 355 x 500 x 563 mm Storage online

GSCJ-8301B1-5 Automatic PCB Magazine Loader with Handle Adjustment and Plate Metal Base for 355 x 500 x 563 mm Storage

Get Best Price
Good price Aluminum Alloy Anti Static PCB Magazine Rack with Adjustable Width 85-250 mm for SMT Loader and Unloader online

Aluminum Alloy Anti Static PCB Magazine Rack with Adjustable Width 85-250 mm for SMT Loader and Unloader

Get Best Price
Good price GSCJ-8301B1 SMT PCB Magazine Rack with 50 PCB Slots and Adjustable Width 35-250 mm for ESD PCB Storage online

GSCJ-8301B1 SMT PCB Magazine Rack with 50 PCB Slots and Adjustable Width 35-250 mm for ESD PCB Storage

Get Best Price
Good price GSCJ-8301B1-1 Anti-Static SMT Loading and Unloading Rack with 50 PCB Slots for PCB Transfer Box (355 x 320 x 563 mm) online

GSCJ-8301B1-1 Anti-Static SMT Loading and Unloading Rack with 50 PCB Slots for PCB Transfer Box (355 x 320 x 563 mm)

Get Best Price
CONTACT US
Contact Now
Product Description
SMT Loading And Unloading Rack 460×400×563mm
Product Overview

This SMT loading and unloading rack is designed for efficient PCB handling in surface mount technology processes. With dimensions of 460×400×563mm, it provides reliable storage and transport for electronic components during manufacturing operations.

Product Images

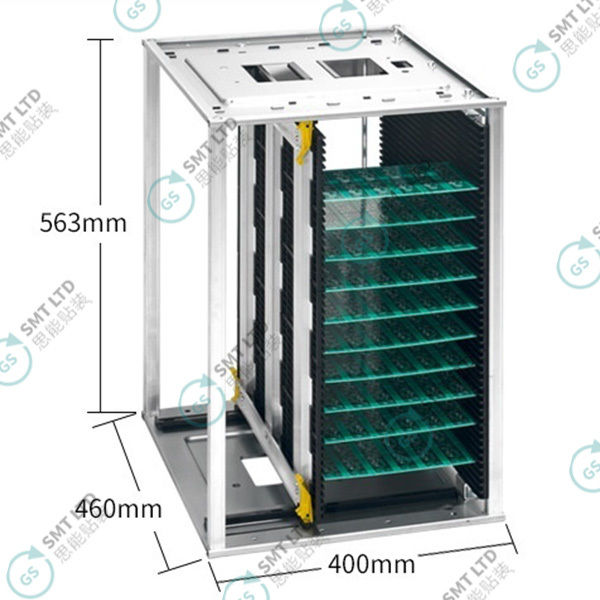

SMT Loading and Unloading Rack 460*400*563mm with PP Side Panel and Galvanized Base Plates for PCB Magazine Rack 0
SMT Loading and Unloading Rack 460*400*563mm with PP Side Panel and Galvanized Base Plates for PCB Magazine Rack 1
SMT Loading and Unloading Rack 460*400*563mm with PP Side Panel and Galvanized Base Plates for PCB Magazine Rack 2
Installation Instructions
  1. 1. Take out the accessories and check if they are all present.
  2. 2. Press down the gear bar firmly.
  3. 3. Secure the four vertical columns with screws.
  4. 4. Align the side plates with the holes and tighten the screws.
  5. 5. Align the bottom of the movable side plate with the circular holes of the clips.
  6. 6. Install the base plate, push the round heads of the clips upwards and then move it.
  7. 7. Install the stopper on the spring part downwards, and the installation is complete.
