PTB/PTC Series PCB Conveyor with PLC Control System Adjustable Width and ESD Transmission Belt for SMT Inspection

Product Details

Description:

Used For Connection Or Operator Inspection Between SMT Equipment

Conveyor Speed:

0.5-20 Meter/Mins Or Specified By Customer

Power Supply And Electric Load:

Single-phase 220V AC Up To 300VA

Board Thickness:

Minimum 0.6mm

Highlight:

smt pcb magazine loader

smt pcb handling machine

Payment & Shipping Terms

Minimum Order Quantity

1 PCS

Price

USD+negotiable+pcs

Packaging Details

3000*900*1000mm

Delivery Time

1-7 days

Payment Terms

T/T

Supply Ability

1+pcs+per days

67KW Material Frame Vertical Hot Air Curing Oven with PID Closed-Loop Control and 60 Layers

Get Best Price

Video

Lead Free Nitrogen Hot Air Reflow Oven with Siemens PLC Control and Modular Design for SMT Production

Get Best Price

ZCL300-D Series Dual Buffer Stocker with Double Track Cache Cooling Function and 20-30pcs Capacity for PCB Handling

Get Best Price

PTH Series PCB Conveyor with PLC Control System Stepping Drive and SMEMA Communication for Efficient PCB Handling

Get Best Price

Contact Now

Product Description

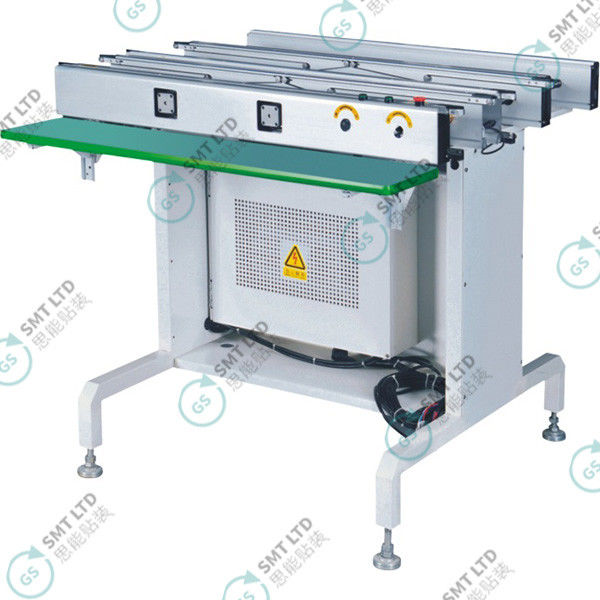

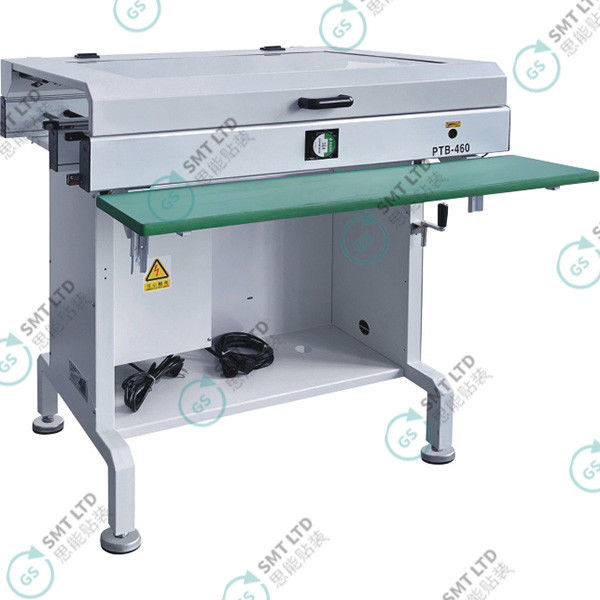

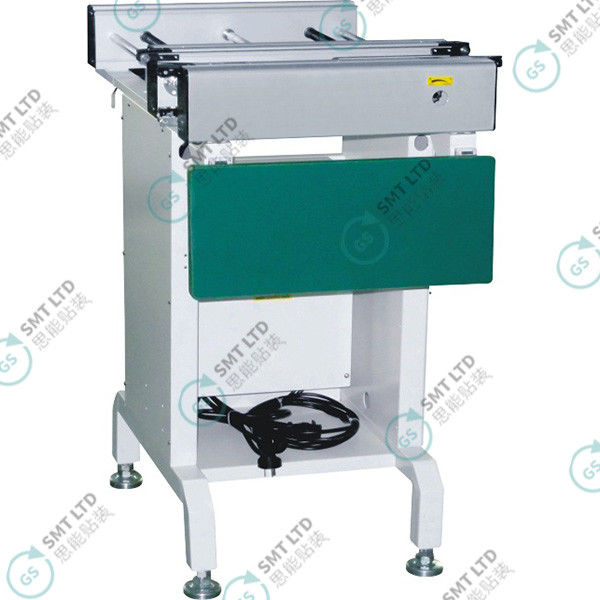

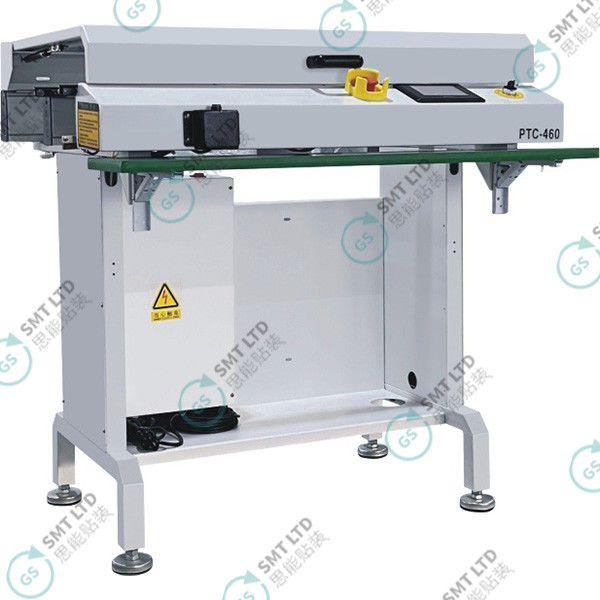

PCB Conveyors PTB/PTC Series Conveyor & Inspection Conveyor

Key Features

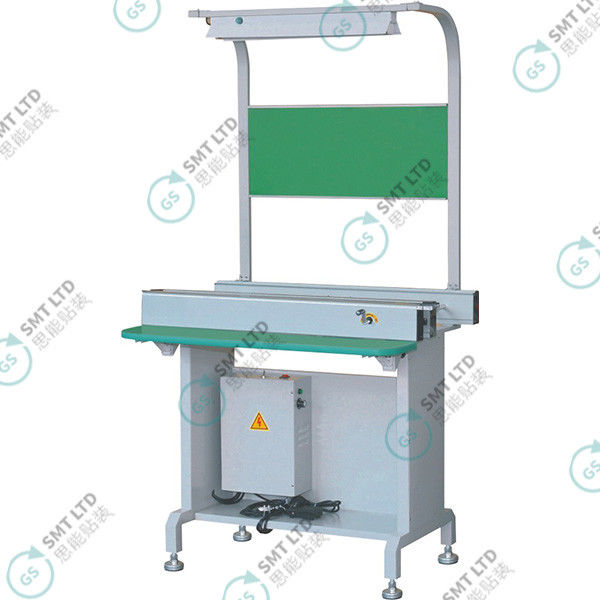

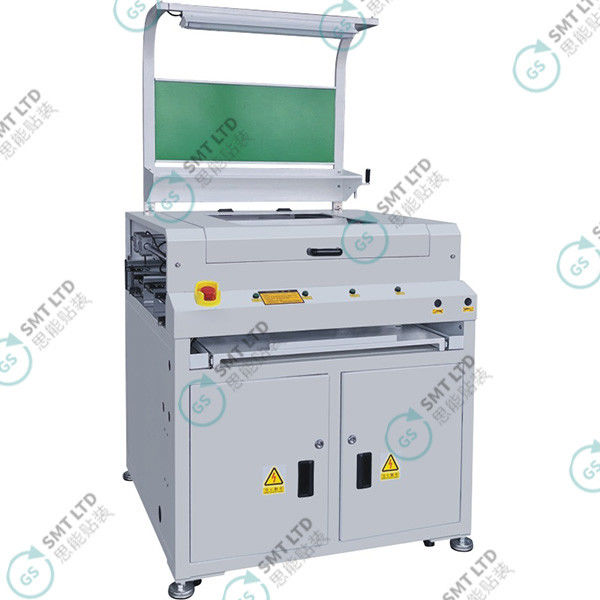

Integrated active work table with document signage and lighting fixtures
User-adjustable lighting brightness and working height for operational efficiency
Green flat imported anti-static transmission belt - durable and easy to replace
Heavy-duty sheet metal construction for superior stability and vibration resistance
Independent guide extension blocks at track entrance/exit for easy adjustment
PLC control system with SMEMA communication interface

Optional Features

Multi-segment transmission (minimum 0.5m length) with dual independent width adjustments
Additional configurations: cooling fans, block cylinders, platforms, dust covers
Custom programming for scanner integration, AOI, and NG/OK communication functions
Variable transmission speeds: 50~250mm, 50~350mm, 50~460mm, 50~510mm
