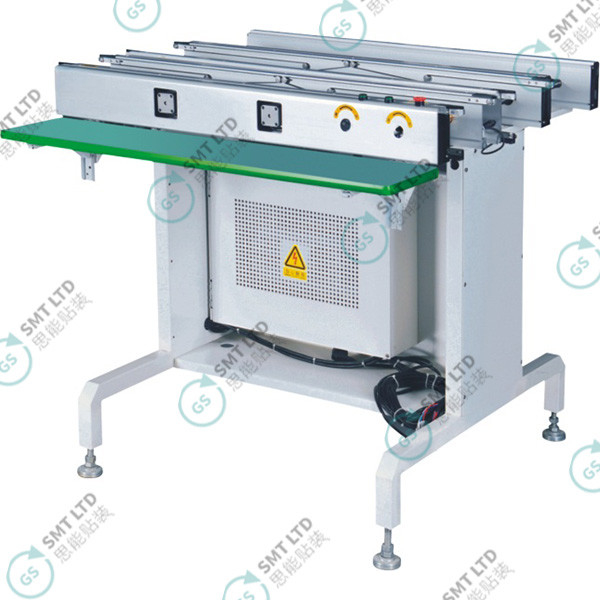

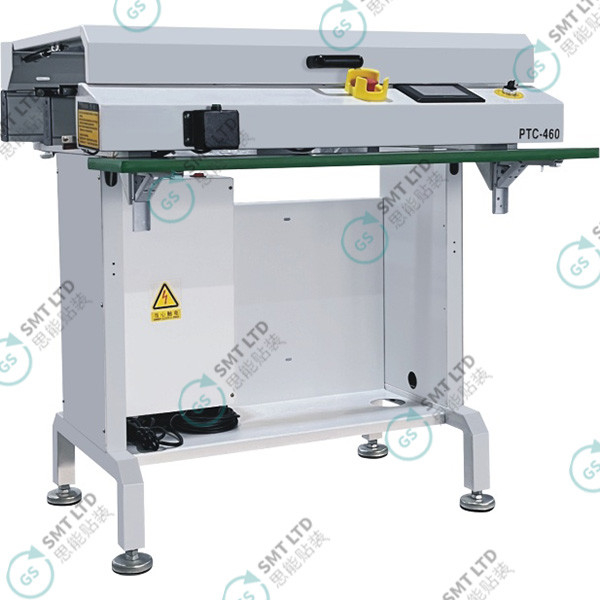

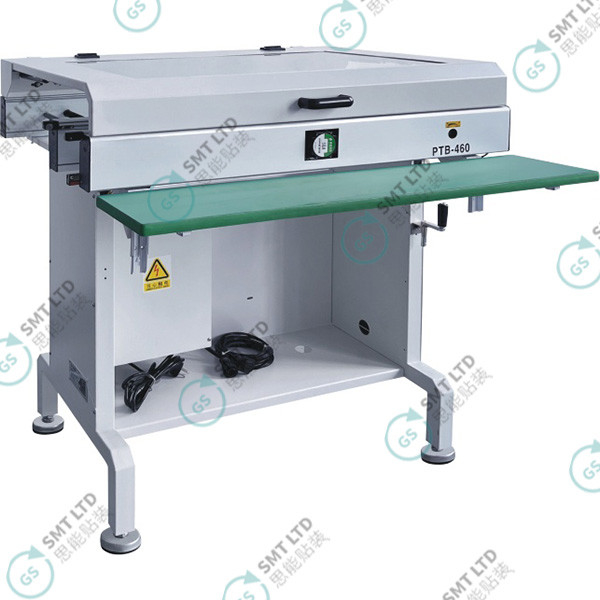

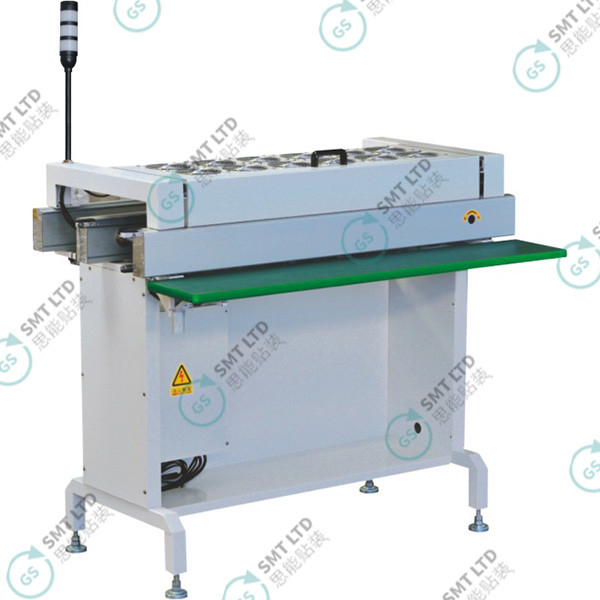

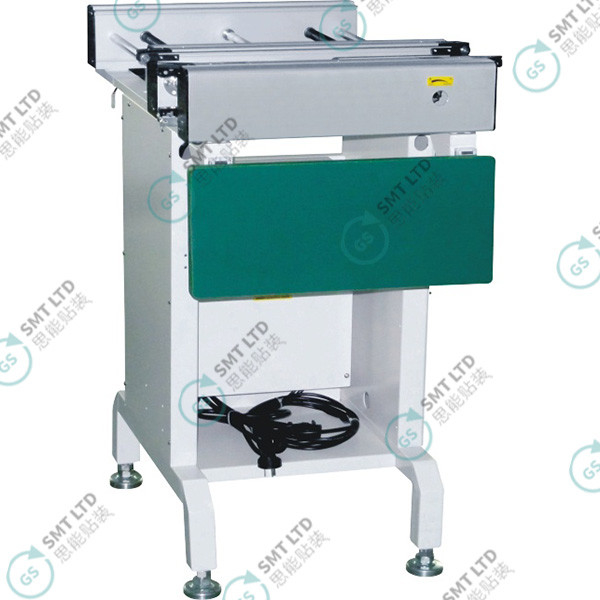

PCB Conveyors PTB/PTC series Conveyor / Inspection conveyor

Features:

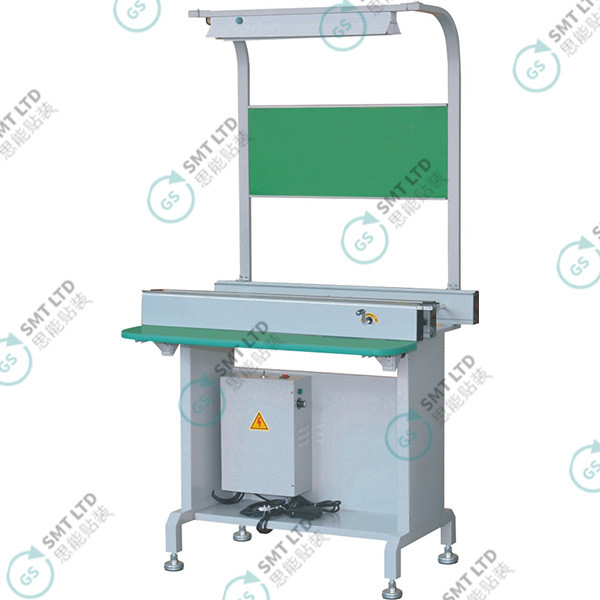

1. On the conveyor base is equipped with an active work table,document signage, lighting fixtures.

2. The lighting brightness, working height, etc.are user-friendly and the operation is more efficient, convenient and practical.

3. Green flat imported anti-static transmission belt, durable,easy to replace.

4. Sheet metal weights the structure, the overall stability,not easy to shift.

5. Track entrance and exit independent installation guide extension block for easy adjustment and replacement.

6. PLC control system, through SMEMA communication mode.

Optional features:

1. Two-segment transmission or multiple-segment transmission (minimum 0.5m in length); two independent adjustments of width.

2. lnstall cooling fan, block cylinder, platform, dust cover and other additional configuration.

3. Special program requirements such as cooperation with the scanner,AOl and NG/OK communication function.

4. Optional transmission speed: 50~250mm,50~350mm,50~460mm,50~510mm.
