Name: Online Dual Platform Selective Wave Soldering Machine with Single phase 380V, High-precision Motion Control, and Real-time Welding Process Display
Brand: Global Soul Limited
SKU: SM-LⅡ
Availability: InStock

Home > Products > PCB Handling Equipment >

Online Dual Platform Selective Wave Soldering Machine with Single phase 380V, High-precision Motion Control, and Real-time Welding Process Display

Dual Platform Selective Wave Soldering Machine

Selective Wave Soldering Machine 380V

Place of Origin:

China

Brand Name:

Model Number:

SM-LⅡ

Document:

Product Brochure PDF

Request A Quote

Product Details

Machine Size(mm):

2950(L)*1650(W)*1675(H)

Total Machine Power/operating Power:

20KW/6-8KW

Power Supply:

380V/Single-phase 380V

Net Weight:

1500Kg

Air Source Requirements:

Pressure 0.4-0.6MPa, Flow Rate 8-12L

Nitrogen Gas Source Requirements:

Pressure 0.3-0.5MPa, Flow Rate Not Less Than 5 Cubic Meters Per Hour, Purity Not Less Than 99.998%

Air Volume Requirements:

Above The Spray: 800-1000cbm/h; Above The Tin Furnace: 600-800cbm/h

Pallet Passing Size:

L260×W 260-L500×W500 Mm (Pallet Process Edge Thickness: 3- 10mm)

Double Nozzle Spacing:

165~265 Mm

Maximum Welding Area:

L500×W500 Mm

Highlight:

Dual Platform Selective Wave Soldering Machine

Selective Wave Soldering Machine 380V

Payment & Shipping Terms

Minimum Order Quantity

1 PCS

Price

USD+negotiable+pcs

Packaging Details

3100*1800*1800mm

Delivery Time

1-7 days

Payment Terms

T/T

Supply Ability

1+pcs+per days

Product Description

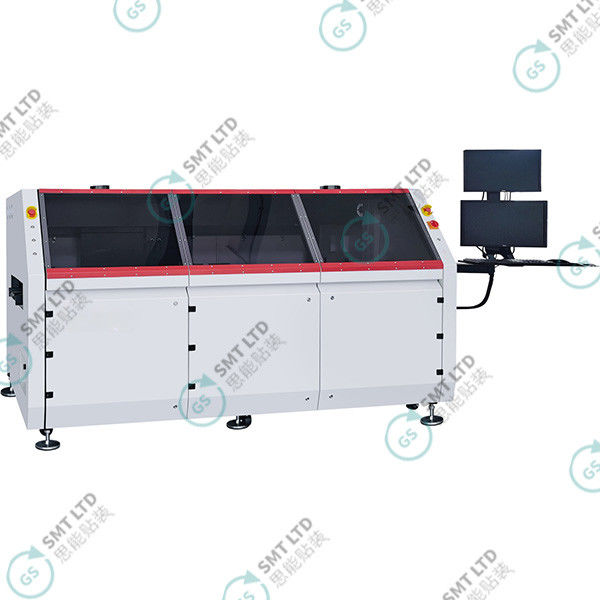

Online Dual Platform Selective Wave Soldering Machine

Advanced Control & Precision Features

Industrial computer with multi-axis motion control card for high-precision motion control and professional operation.

Key Features & Capabilities

Proprietary control software supports PCB images and GERBER files for precise path editing
Comprehensive parameter control including course settings, path starting points, welding speeds, air travel speeds, Z-axis height, and peak height
Automatic monitoring and recording of air intake pressure, transport speed, preheating temperature, and tin furnace temperature
Built-in automatic alarm system for common faults with intelligent diagnostic functions
Formula function automatically records and stores process parameters for easy product setup and recall
Aluminum alloy construction for flux nozzles and solder nozzles with protective precision X-Y flat tables
Precision ball screw and servo motor drive system for accurate, low-noise, high-precision transmission
Dual-stage product delivery with independent stepper motors for each platform
Front section (flux spray and preheating) features aluminum guide rails with imported roller chain conveyor
Rear section (solder area) utilizes precision stainless steel roller conveying for stable, accurate product transport
Real-time welding process visualization with camera feed to computer software
Photo capture, video recording, and data saving capabilities
Heavy-duty steel welded frame construction for exceptional stability, durability, and resistance to deformation

Technical Specifications

Power Supply	Single Phase 380V
Control System	Industrial Computer + Multi-Axis Motion Control Card
Drive System	Precision Ball Screw + Servo Motor
Conveyor System	Dual-Stage with Independent Stepper Motors
Frame Construction	Steel Welded Structure
