Name: SMT PCB Handling Machine AC 220V Automatic PCB Magazine Loader
Brand: Global Soul Limited
SKU: GSLD-250/GSLD-330/GSLD-390/GSLD-460
Availability: InStock

Home > products > PCB Handling Equipment >

SMT PCB Handling Machine AC 220V Automatic PCB Magazine Loader

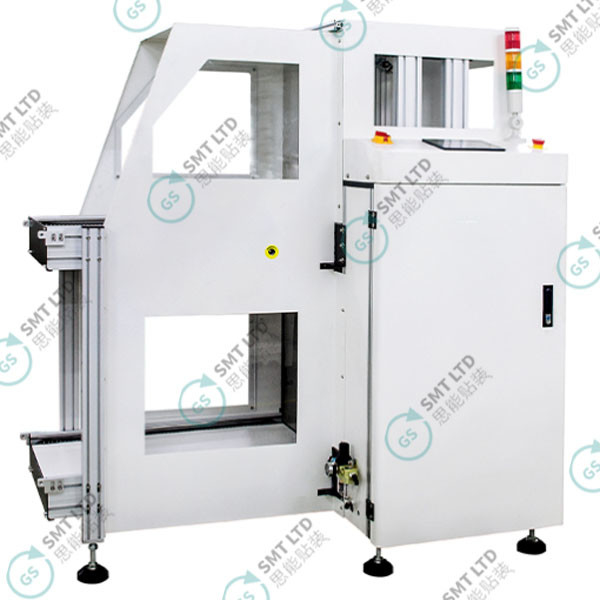

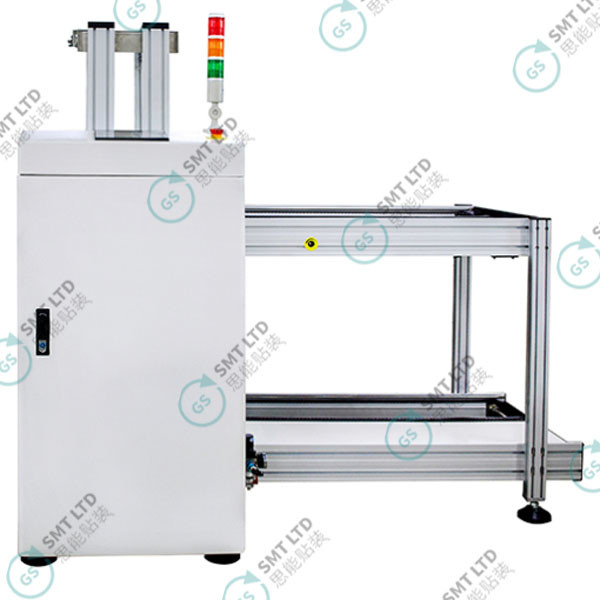

SMT PCB Handling Machine

PCB Handling Machine AC 220V

Automatic PCB Magazine Loader

Place of Origin:

China

Brand Name:

Model Number:

GSLD-250/GSLD-330/GSLD-390/GSLD-460

Request A Quote

Product Details

Specification 1:

GSLD-250

Specification 2:

GSLD-330

Specification 3:

GSLD-390

Specification 4:

GSLD-460

Power Supply:

AC 220V/ 50/60Hz

Air Supply:

5 Kg F/cm²

PCB Size 1 (mm):

330*50~250

PCB Size 2 (mm):

445*50~330

PCB Size 3 (mm):

530*50~390

PCB Size 4 (mm):

535*50~460

PCB Transport Direction:

Customize Left To Right Or Right To Left

Magazine Size 1 (mm):

335*320*565

Magazine Size 2 (mm):

460*400*565

Magazine Size 3 (mm):

535*460*565

Magazine Size 4 (mm):

535*530*565

Step Pitches:

10,20,30,40mm Choosable

Transport Height:

900 ± 20 Mm

Main Motor Power:

300w

Machine Size 1:

1330*765*1250

Machine Size 2:

1650*845*1250

Machine Size 3:

1800*910*1250

Machine Size 4:

1800*970*1250

Weight 1 (kg):

190

Weight 2 (kg):

210

Weight 3 (kg):

240

Weight 4 (kg):

260

Highlight:

SMT PCB Handling Machine

PCB Handling Machine AC 220V

Automatic PCB Magazine Loader

Payment & Shipping Terms

Minimum Order Quantity

1 PCS

Price

USD+negotiable+PCS

Packaging Details

2000*1000*1400mm

Delivery Time

1-7 days

Payment Terms

T/T

Supply Ability

1000+PCS+per days

ZCL-3 Series Automatic Buffer Stocker With 25 Pitches

Get Best Price

ZCLA-3 Series Automatic NG/OK Buffer Stocker With Servo Positioning System

Get Best Price

ZCLC-3 Series Automatic Cooling Buffer Stocker With HMl Operation System

Get Best Price

DZ Series Roof Type Automatic Unloader With Fuji Button Operation

Get Best Price

86-0755-27678283

Contact Now

Product Description

PCB Handling Machine PCB Loader PCB Magazine Loader For SMT | GSSMT, PCB Handling Equipment, PCB Loader Machine, PCB Unloader Machine, SMT Handling System, PCB Conveyor System, PCB Transfer Machine, Automated PCB Handling, PCB Buffer System, PCB Handling Automation, PCB Handling Solutions, PCB Handling Machine

Here's how to operate the PCB magazine loader when changing products in the SMT line:

1. Manual Running: Press the manual running button and select the pitch between PCBs.

2. Adjust Magazine Width: Set the magazine width to match the new PCB, ensuring smooth insertion.

3. Load Magazine: Place a magazine into the loader.

4. Box Input: Press the box input to move the magazine to the lift platform.

5. Clamping and Lift Down: Click clamping, then lift down. The magazine will lower to the position for unloading the first board.

6. Adjust Pusher: Use the rocker to center the pusher on the PCB line. Ensure easy manual push from rail to magazine. The magazine layer should be about 1mm lower than the rail.

7. Check Push Plate: Click the push plate to verify if the machine can store PCBs from the rail into the magazine.

8. Automatic Running: Click exit, then automatic running. The machine will be ready and wait for the board signal.
