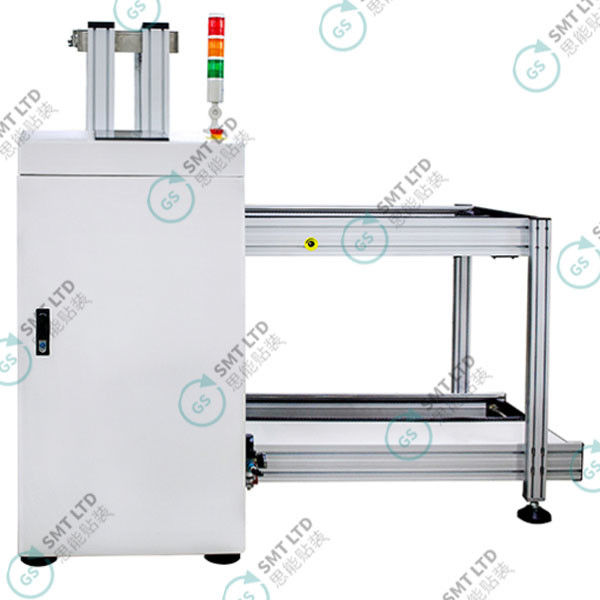

Name: Automatic PCB Handling Machine AC 220V with Customizable PCB Transport Direction for SMT Magazine Loading
Brand: Global Soul Limited
SKU: GSLD-250/GSLD-330/GSLD-390/GSLD-460
Availability: InStock

Home > Products > PCB Handling Equipment >

Automatic PCB Handling Machine AC 220V with Customizable PCB Transport Direction for SMT Magazine Loading

SMT PCB Handling Machine

PCB Handling Machine AC 220V

Automatic PCB Magazine Loader

Place of Origin:

China

Brand Name:

Model Number:

GSLD-250/GSLD-330/GSLD-390/GSLD-460

Document:

Product Brochure PDF

Request A Quote

Product Details

Specification 1:

GSLD-250

Specification 2:

GSLD-330

Specification 3:

GSLD-390

Specification 4:

GSLD-460

Power Supply:

AC 220V/ 50/60Hz

Air Supply:

5 Kg F/cm²

PCB Size 1 (mm):

330*50~250

PCB Size 2 (mm):

445*50~330

PCB Size 3 (mm):

530*50~390

PCB Size 4 (mm):

535*50~460

PCB Transport Direction:

Customize Left To Right Or Right To Left

Magazine Size 1 (mm):

335*320*565

Magazine Size 2 (mm):

460*400*565

Magazine Size 3 (mm):

535*460*565

Magazine Size 4 (mm):

535*530*565

Step Pitches:

10,20,30,40mm Choosable

Transport Height:

900 ± 20 Mm

Main Motor Power:

300w

Machine Size 1:

1330*765*1250

Machine Size 2:

1650*845*1250

Machine Size 3:

1800*910*1250

Machine Size 4:

1800*970*1250

Weight 1 (kg):

190

Weight 2 (kg):

210

Weight 3 (kg):

240

Weight 4 (kg):

260

Highlight:

SMT PCB Handling Machine

PCB Handling Machine AC 220V

Automatic PCB Magazine Loader

Payment & Shipping Terms

Minimum Order Quantity

1 PCS

Price

USD+negotiable+PCS

Packaging Details

2000*1000*1400mm

Delivery Time

1-7 days

Payment Terms

T/T

Supply Ability

1000+PCS+per days

67KW Material Frame Vertical Hot Air Curing Oven with PID Closed-Loop Control and 60 Layers

Get Best Price

Video

Lead Free Nitrogen Hot Air Reflow Oven with Siemens PLC Control and Modular Design for SMT Production

Get Best Price

ZCL300-D Series Dual Buffer Stocker with Double Track Cache Cooling Function and 20-30pcs Capacity for PCB Handling

Get Best Price

PTH Series PCB Conveyor with PLC Control System Stepping Drive and SMEMA Communication for Efficient PCB Handling

Get Best Price

Contact Now

Product Description

SMT PCB Handling Machine AC 220V Automatic PCB Magazine Loader

The PCB Handling Machine is an automated solution designed for efficient PCB magazine loading and unloading in SMT production lines. This system streamlines the handling process while maintaining precision and reliability.

PCB Handling Equipment, PCB Loader Machine, PCB Unloader Machine, SMT Handling System, PCB Conveyor System, PCB Transfer Machine, Automated PCB Handling, PCB Buffer System, PCB Handling Automation, PCB Handling Solutions

Operation Procedure for Product Changeover

1. Manual Running: Press the manual running button and select the appropriate pitch between PCBs.

2. Adjust Magazine Width: Set the magazine width to match the new PCB dimensions, ensuring smooth insertion.

3. Load Magazine: Place a magazine into the loader unit.

4. Box Input: Press the box input function to move the magazine to the lift platform.

5. Clamping and Lift Down: Activate clamping, then initiate lift down. The magazine will lower to the optimal position for unloading the first board.

6. Adjust Pusher: Use the rocker control to center the pusher on the PCB line. Ensure easy manual push from rail to magazine. The magazine layer should be positioned approximately 1mm lower than the rail.

7. Check Push Plate: Activate the push plate to verify the machine's capability to store PCBs from the rail into the magazine.

8. Automatic Running: Click exit, then select automatic running mode. The machine will be ready and await the board signal for continuous operation.
