Name: Automatic SMT Nozzle Cleaning Machine 200W High Efficiency with Touch Screen Control
Brand: Global Soul Limited
SKU: GS-0801
Availability: InStock

Home > Products > SMT Nozzle Cleaner >

Automatic SMT Nozzle Cleaning Machine 200W High Efficiency with Touch Screen Control

Automatic SMT Nozzle Cleaning Machine

SMT Nozzle Cleaning Machine 200W

Place of Origin:

China

Brand Name:

Panasonic

Model Number:

GS-0801

Document:

Product Brochure PDF

Request A Quote

Automatic SMT Nozzle Cleaning Machine 200W High Efficiency with Touch Screen Control

Product Details

Size(L*W*H):

505×570×500（mm）

Power Supply:

3P2W，220VAC，50/60Hz，10A

Power Requirements:

300w

Air Source Pressure:

0.5 - 0.6MPa(During Daily Operation)

Weight:

62Kg

Total Power:

200W

Control Mode:

Touch Screen+Microchip

Gas Source:

Purified Compressed Air

Injection Pressure:

0.3—0.4 MPa

Air Consumption:

Below 280NL/min

Liquid Type:

Industrial Purified Water

Liquid Consumption:

200ml/ Hour

Liquid Storage:

3000ml

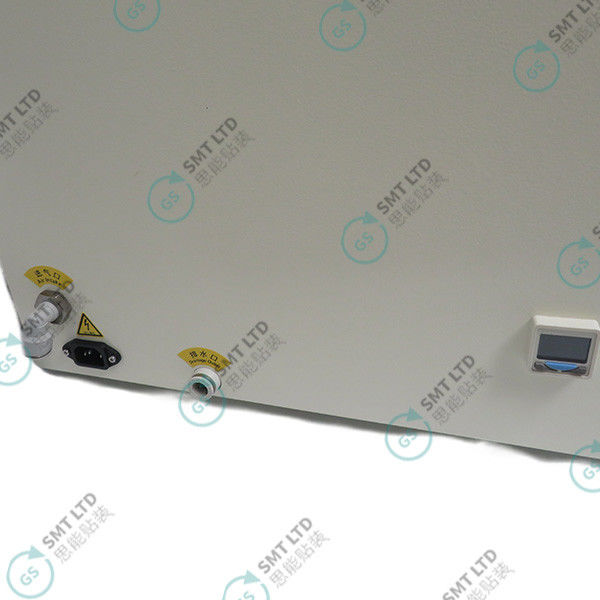

Intake / Drain Pipe:

Φ10mm/Φ10mm

Nozzle Tray Specification:

Default 32 Nozzle

Nozzle Cleaning Specification:

0201 - 2512 (inch)

Highlight:

Automatic SMT Nozzle Cleaning Machine

SMT Nozzle Cleaning Machine 200W

Payment & Shipping Terms

Minimum Order Quantity

1 PCS

Price

USD+negotiable+pcs

Packaging Details

520*580*520mm

Delivery Time

1-7 days

Payment Terms

T/T

Supply Ability

1+pcs+per days

Automatic suction nozzle cleaning machine with 30 nozzle capacity, industrial pure water cleaning, and touch screen control for SMT nozzle maintenance

Get Best Price

GS-893 Industrial Automatic SMT Nozzle Cleaner 250W with Touch Screen+PLC Control and 304 Stainless Steel Construction

Get Best Price

Automatic SMT Nozzle Cleaning Machine 200W High Efficiency with Touch Screen Control

Get Best Price

GS-020S Desktop Ultrasonic Cleaner Machine with 3.2L Capacity 40KHz Ultrasonic Frequency and Numerical Control for SMT Nozzle Cleaning

Get Best Price

Contact Now

Product Description

Automatic SMT Nozzle Cleaning Machine 200W High Efficiency

Machine Installation and Adjustment

Important Safety Warnings

This equipment must only be operated by professional maintenance personnel or trained qualified personnel
Before powering on, verify that the external input power supply matches the equipment's rated voltage and current
This equipment contains high-voltage devices and mechanical transmission - observe personal safety during operation
Use only pure water (HP value 5-7 soft water) as cleaning fluid - solvent liquids are strictly prohibited
Use only pure, filtered compressed air - unfiltered gas is strictly prohibited
Do not scratch or strike the touch screen with sharp objects or excessive force

Working Environment and Conditions

Place equipment on ground or flat desktop in a dry, ventilated facility
Operating temperature range: 5°C to 45°C
Operating humidity range: 20% to 95%
Power requirements: Apply voltage according to factory equipment instructions
Use purified 0.5 to 0.6MPa industrial gas source during operation

Water Addition Procedures

Use only purified water (HP value 5-7 soft water)
Do not open water injection port cover or add water while equipment is running - add water only after stopping equipment
Monitor display prompts and audible warnings during filling - buzzer will sound three times when water level is sufficient
Stop adding water immediately upon hearing the prompt signal
Prevent overflow during filling to avoid damage to internal electrical components
