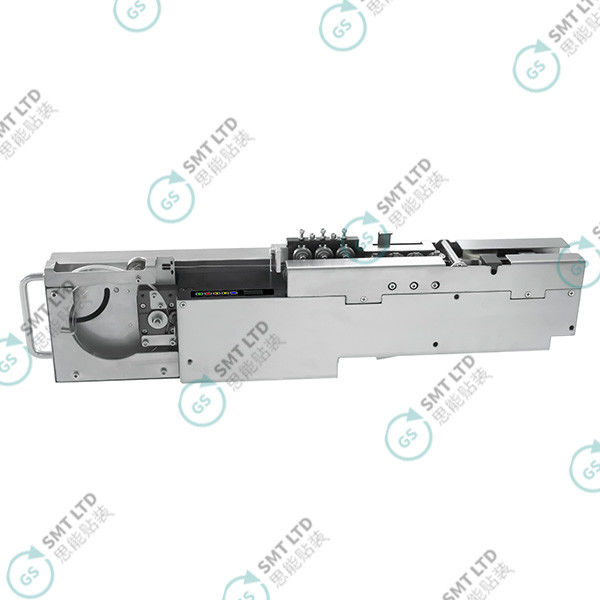

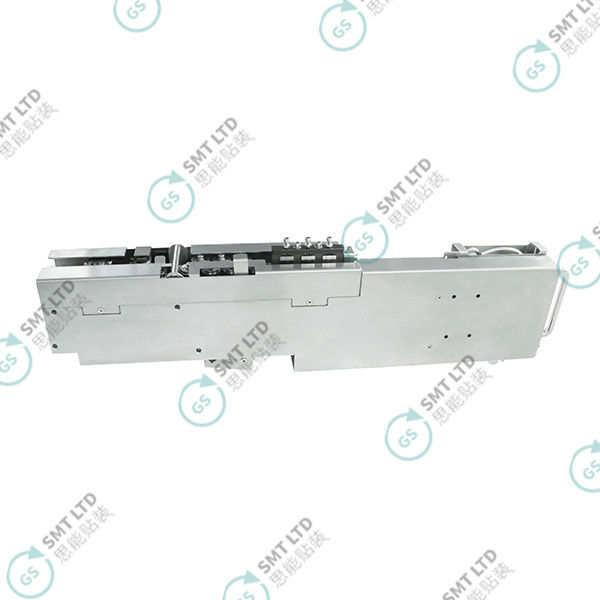

Name: Jumper Feeder SMT Feeder with 1.5s/Pcs Feeding Speed DC 24V Working Voltage and Single Channel Design
Brand: Global Soul Limited
SKU: GS-LAD2303
Availability: InStock

Home > Products > SMT Feeder >

Jumper Feeder SMT Feeder with 1.5s/Pcs Feeding Speed DC 24V Working Voltage and Single Channel Design

1.5s/Pcs Feeding Speed Jumper Feeder

DC 24V Working Voltage SMT Feeder

Single Channel Component Supply Device

Place of Origin:

China

Brand Name:

Model Number:

GS-LAD2303

Document:

Product Brochure PDF

Request A Quote

Jumper Feeder SMT Feeder with 1.5s/Pcs Feeding Speed DC 24V Working Voltage and Single Channel Design

Product Details

Model:

GS-LAD2303

Overall Dimensions (length * Width * Height):

624*78*160

Weight:

6.5KG

Working Voltage:

DC 24V

Gas Source Requirements:

Maximum Current:

2.5A

Feeding Speed:

1.5s/Pcs

Operation Panel:

0.96-inch TFT Color Screen, 80*160 Pixels

Material Change Time:

3min

Channel:

Single Channel

Pin Bending Function:

Bend

Lifting Function:

Lifting Feeding

Foot Cutting Function:

Cut Off

Straightening Function:

Alignment Of Alignment

Material Wire Diameter:

0.4-0.7mm(The Bending Module Needs To Be Replaced When Changing The Wire Diameter)【It Is Not Adjustable. For Example, For A 0.6mm Module, Only 0.6mm Iron Wire Can Be Drawn】

Jumper Span 1:

5-26mm(Change The Length Of The Fixture When Changing The Span)【It Is Not Adjustable. For Example, For A 16mm Span, Only A 16mm Length Fixture Can Be Used】

Jumper Span 2:

The Maximum Span Is 35mm(the Arc-shaped Deformation Of The Product Will Be Larger).【It Is Not Adjustable. For Example, For A 16mm Span, Only A 16mm Length Fixture Can Be Used】

The Length Of The Formed Pins:

2.0~5.5mm【Within This Range, It Can Be Achieved By Replacing The Fixture. One Fixture Can Only Correspond To A Single Size】

Highlight:

1.5s/Pcs Feeding Speed Jumper Feeder

DC 24V Working Voltage SMT Feeder

Single Channel Component Supply Device

Payment & Shipping Terms

Minimum Order Quantity

1 PCS

Price

USD+negotiable+pcs

Packaging Details

850*90*180

Delivery Time

1-7 days

Payment Terms

T/T

Supply Ability

1+pcs+per days

Yamaha ZS 104mm SMT Feeder for Pick & Place Machines - Japan Origin & Yamaha Brand

Get Best Price

YAMAHA Brand Electric Drive SMT Feeder Car with Multiple Model Compatibility for Feeder Storage and Placement

Get Best Price

YAMAHA SMT Feeder Rack Stainless Steel 2 Floors Design with Universal Wheel and Brake for YS12/10/20/SS Feeder Car

Get Best Price

SMT Feeder Car with High Quality Aluminum Construction 100 Feeder Capacity and Anti-Static Drag Chain for Efficient SMT Production

Get Best Price

Contact Now

Product Description

Jumper Feeder (GS-LAD2303)

The Jumper Feeder (GS-LAD2303) is an advanced component supply device designed for automated manufacturing processes. It efficiently dispenses coiled copper wires according to predetermined lengths, cuts them to precise specifications, and delivers them to insertion machinery.

Key Features

Automated feeding of coiled copper wires
Precision cutting to fixed lengths
Seamless integration with insertion machines
Consistent and reliable component supply
Enhanced production efficiency

Customization Options

For specialized material dimensions or unique application requirements, our engineering team provides comprehensive consultation services. We offer tailored solutions and can customize exclusive feeders to meet your specific manufacturing needs.
