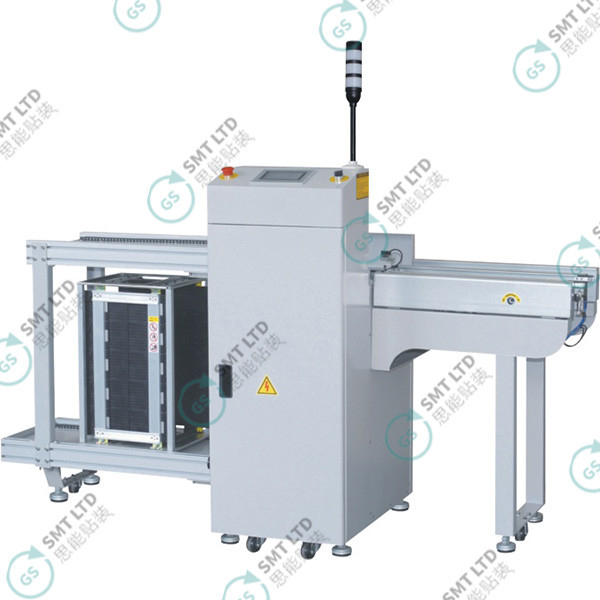

Name: SMT Peripheral Equipment ZL-3 series Side Entry Unloader
Brand: Global Soul Limited
SKU: ZL-3BM / ZL-3BL / ZL-3BLL / ZL-3BXL
Availability: InStock

Home > products > PCB Handling Equipment >

SMT Peripheral Equipment ZL-3 series Side Entry Unloader

smt pcb magazine loader

smt pcb handling machine

automatic pcb magazine loader

Place of Origin:

China

Brand Name:

Model Number:

ZL-3BM / ZL-3BL / ZL-3BLL / ZL-3BXL

Request A Quote

SMT Peripheral Equipment ZL-3 series Side Entry Unloader

Product Details

Description:

For Automatic Collection Of Circuit Boards From The Production Line

No. Of Magazine:

Upper Conveyor: 1nos.Lower Conveyor:2nos.

Time For Feed PCBs:

Approx. 6 Seconds Or Specified By Customer

Magazine Change Over Time:

Approx.35 Seconds Or Specified By Customer

Indexing Pitch:

10,20,30,40 Mm Pitch Or Specified By Customer

Power Supply And Electric Load:

220V(AC,SP)300VA Max

Air Pressure And Air Flow:

4~6bar, Up To 0.1

Thickness Of PBCs:

0.6mm Min

Highlight:

smt pcb magazine loader

smt pcb handling machine

automatic pcb magazine loader

Payment & Shipping Terms

Minimum Order Quantity

1 PCS

Price

USD+negotiable+pcs

Packaging Details

2700*1030*1300mm

Delivery Time

1-7 days

Payment Terms

T/T

Supply Ability

1+pcs+per days

ZCL-3 Series Automatic Buffer Stocker With 25 Pitches

Get Best Price

ZCLA-3 Series Automatic NG/OK Buffer Stocker With Servo Positioning System

Get Best Price

ZCLC-3 Series Automatic Cooling Buffer Stocker With HMl Operation System

Get Best Price

DZ Series Roof Type Automatic Unloader With Fuji Button Operation

Get Best Price

86-0755-27678283

Contact Now

Product Description

Features:

1. SMT productian line circuit board closing device

2. PLG control, color HMl operation system

3. Stepping motor push plate structure, pushing plate speed is adjustable

4. Auxiliary positioning braking system, accurate positioning,fast lifting speed and high production efficiency

5. Multiple electrical distribution circuit protection, safe and reliable

6. Sound and light alarm system, abnormal information text prompts, easy operation and maintenance

7. Standard SMEMA signal communication

8. Optional AGV docking function

SMT Peripheral Equipment ZL-3 series Side Entry Unloader 0

SMT Peripheral Equipment ZL-3 series Side Entry Unloader 1

SMT Peripheral Equipment ZL-3 series Side Entry Unloader | GSSMT, PCB side entry unloader, SMT side entry unloader, Side entry PCB handling, Side entry PCB unloader, SMT production line unloader, PCB assembly side unloader, PCB side access unloader, Fully automatic side unloader, Side entry SMT machine unloader, Side access conveyor system, PCB magazine side unloader
