Industrial Automation FUJI Nxt Head H24 Multifunctional For SMT Manufacturing
Product Specifications
| Brand Name |
FUJI |
| Product Name |
FUJI Nxt H24 Head |
| Condition |
Original New/Used Original |
| Lead Time |
1-7 Days |
Revolutionizing SMT Assembly: The FUJI NXT H24 Placement Head
The surface mount technology (SMT) industry demands higher speeds, greater accuracy, and more flexibility from placement equipment. The FUJI NXT series, with its advanced H24 placement head, meets these challenges for modern SMT assembly processes.
Understanding the FUJI NXT Series
The modular FUJI NXT series is designed for high-mix, high-volume production environments. Its flexible configuration supports components ranging from the smallest chip parts to large, odd-form components, making it a versatile manufacturing solution.
The FUJI NXT H24 Head: Advanced Placement Technology
Engineered for high-speed, high-accuracy placement of small components, the H24 head excels in demanding applications like smartphone manufacturing and wearable devices.
Key Features and Benefits
- High-Speed Placement: Achieves 37,500 cph (chips per hour) in Productivity priority mode - a 44% improvement over NXT II
- Enhanced Accuracy: Placement accuracy of ±0.025 mm for reliable component placement
- Small Component Support: Handles ultra-small components including 0201 mm parts
- Versatility: Interchangeable head supports almost all surface mount component types
- Intelligent Part Sensor (IPS): Standard feature verifies part orientation and placement
- Low Impact Force: Specialized nozzles achieve impact force ≤0.5N without speed reduction
Nozzles for the FUJI NXT H24 Head
Count On Tools Inc. offers expanded Fuji NXT Nozzle Series for the H24 mounter head, including the H24-4.7mm Disc with ceramic tips for increased reliability and performance.
Applications
- Mobile Devices: Smartphones, tablets requiring high-density component placement
- Wearable Technology: Smartwatches, fitness trackers needing miniaturization
- Automotive Electronics: ADAS systems and infotainment components
- Industrial Automation: Precision placement for control systems
Production Integration
The modular NXT series design allows straightforward integration into existing SMT production lines with minimal disruption.
Frequently Asked Questions
What is the placement speed of the FUJI NXT H24 Head?
37,500 cph in Productivity priority mode per module.
What is the placement accuracy?
±0.025 mm for reliable component placement.
What is the smallest component size supported?
Capable of handling 0201 mm parts.

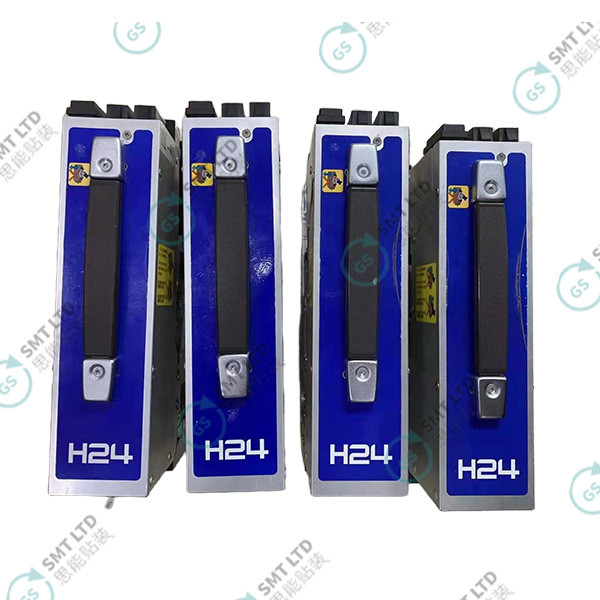

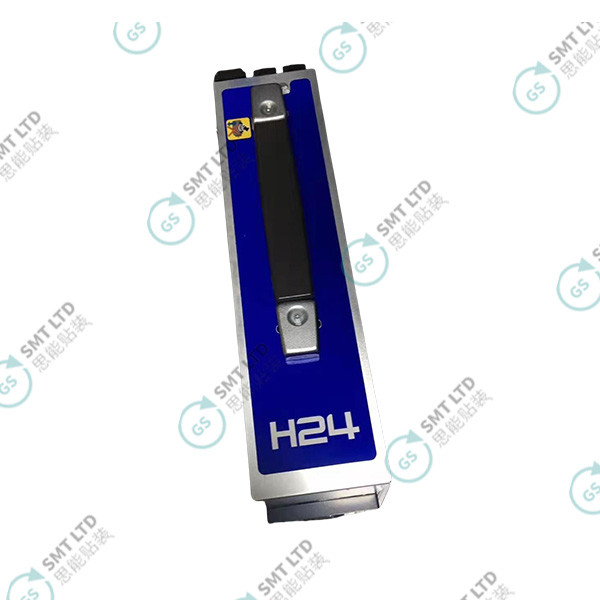

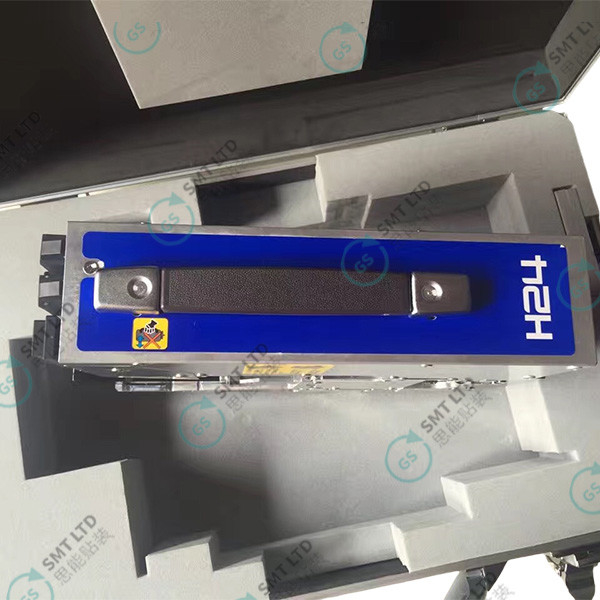

Product Images
