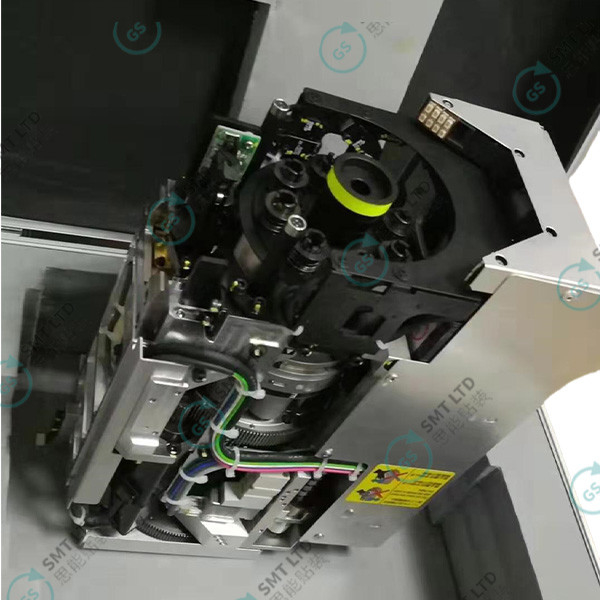

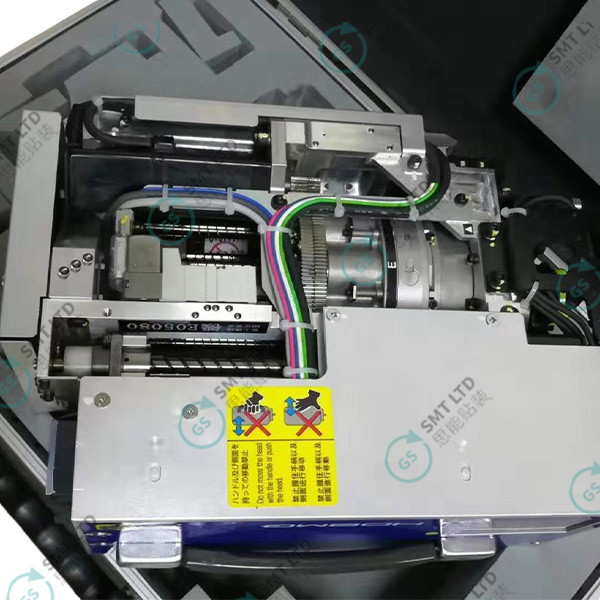

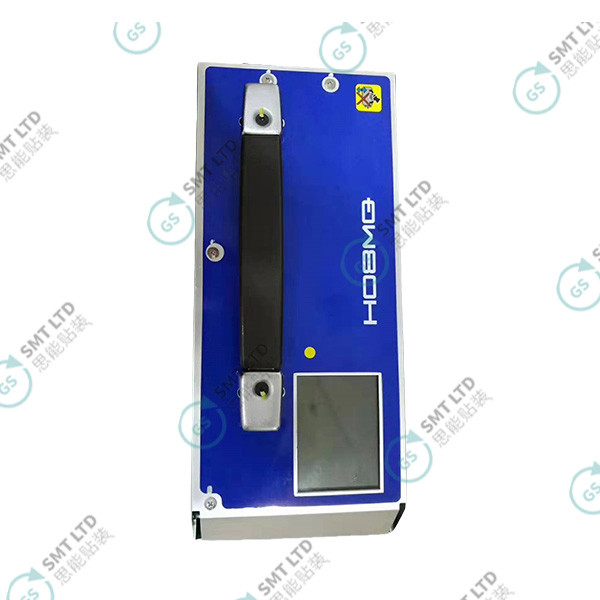

FUJI NXT H08MQ Head with Backup Pin 2UGKHF000120

The FUJI NXT H08MQ Head with backup pin is a critical component for advanced SMT assembly lines, delivering precision placement and enhanced reliability for demanding manufacturing environments.

• 8-Nozzle Design: Simultaneously places up to eight components for increased throughput
• Precision Placement: ±0.040 mm accuracy ensures high-quality assembly
• Backup Pin: Stabilizes PCBs during placement, especially beneficial for thin or flexible boards
• Wide Component Range: Handles components from 0603 to 45 x 45 mm
• Automatic Cleaning: Built-in head cleaner maintains optimal performance
• NXT Series Compatibility: Seamless integration with FUJI NXT mounters

• Model: H08MQ with backup pin (2UGKHF000120)
• Placement Accuracy: ±0.040 mm (3σ) cpk≥1.00
• Component Size Range: 0603 to 45 x 45 mm
• Nozzle Configuration: 8-nozzle multipurpose head

Ideal for demanding SMT environments including:

• High-mix, low-volume production
• Automotive electronics manufacturing
• Industrial automation equipment
• Medical device assembly

To ensure optimal performance:

• Perform regular cleaning of nozzles and components
• Lubricate moving parts as recommended
• Conduct periodic inspections for wear
• Schedule regular calibration
