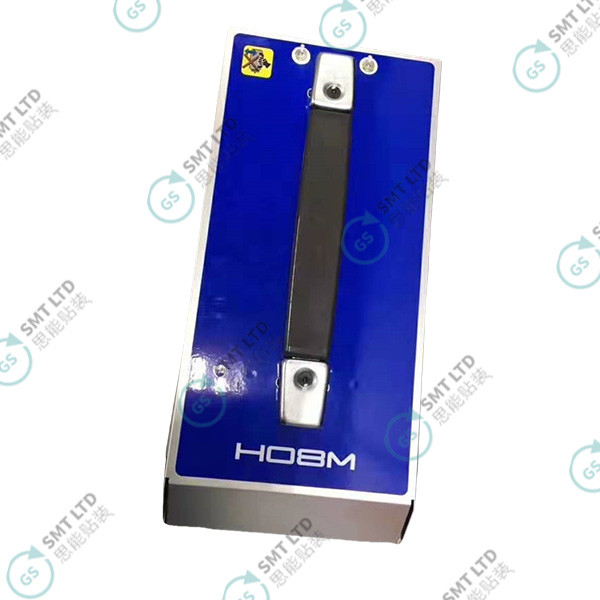

FUJI NXT H08M Head with Backup Pin 2UGKHF000157 SMT Placement

The Fuji NXT H08M Head with Backup Pin is a crucial component in surface mount technology (SMT) placement machines, known for its high accuracy and efficiency in component placement. This head is part of the Fuji NXT series, which is celebrated for its modular design and ability to adapt to various production needs.

• High Accuracy: Placement accuracy of +/- 0.040 mm (3σ, Cpk≥1.00) ensures precise component placement on PCBs.
• Component Range: Handles components from 0603 to 45 x 45 mm in size, with heights up to 13.0 mm.
• Backup Pin Function: Automatically positions, checks, and fine-adjusts pins, reducing changeover time and increasing efficiency.
• Speed and Throughput: 13,000 cph in standard mode and 14,000 cph in productivity priority mode.
• Versatility: Compatible with various Fuji NXT modules including M3 III and M6 III.

The Fuji NXT H08M Head supports intelligent feeders for tape widths from 4 to 104 mm and stick feeders for part widths between 4 to 32 mm. It is also compatible with tray units for JEDEC standard trays, making it adaptable to diverse production requirements.

Ideal for various electronics manufacturing applications including:

• Consumer electronics (smartphones, tablets)
• Automotive electronics (ECUs, control systems)
• Industrial equipment
• Medical devices requiring high precision
