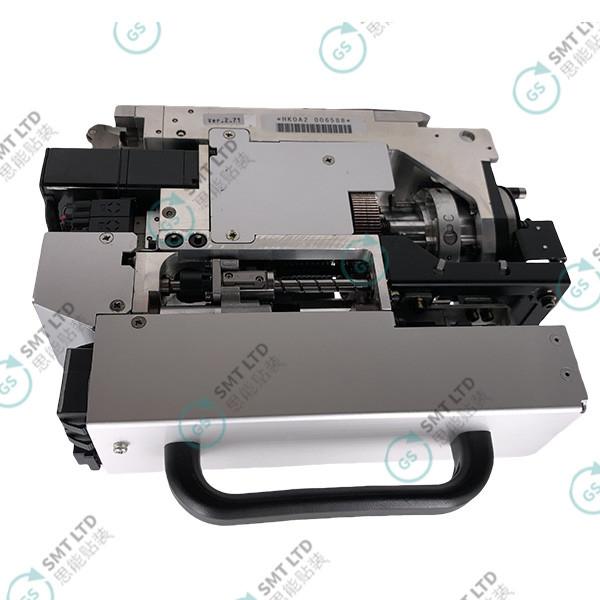

FUJI NXT H08 Placing Head UH004A Original /Used Model Number UH00495
Product Specifications
| Attribute |
Value |
| Brand Name |
FUJI |
| Product Name |
NXT H08 Head |
| Model Number 1 |
UH004A |
| Model Number 2 |
AA15W17 |
| Model Number 3 |
UH00495 |
| Model Number 4 |
UH00494 |
| Condition |
Original New/Used Original |
| Lead Time |
1-7 Days |
FUJI NXT H08 HEAD: Optimizing SMT Assembly with High-Speed Component Placement
The FUJI NXT H08 HEAD is a placement head engineered for FUJI's NXT series SMT (Surface Mount Technology) placement machines. Designed for high-speed and accurate placement of smaller components, the H08 HEAD enhances the efficiency and reliability of SMT assembly lines.
Key Features and Capabilities
The FUJI NXT H08 HEAD is designed to handle compact components. As an 8-nozzle head, it increases efficiency in component placement. It can handle components ranging from 0402 (01005") to 7.5 x 7.5 mm in size, with a height up to 6.5 mm.
Precision and Accuracy
The NXT III has achieved a placing accuracy for small chip parts of +/- 0.025 mm. The FUJI NXT H08 HEAD is built to ensure the proper functioning of electronic circuits. FUJI conducts tests to ensure the accuracy of its placement. The placement accuracy (Fiducial mark standard) is +/-0.038 (+/-0.050) mm (3σ) cpk≥1.00.
Throughput and Speed
The FUJI NXT H08 HEAD is built for efficient throughput. The new H24G high-speed head achieves 37,500 cph (chips per hour). The FUJI NXT H08 HEAD achieves 13,000 cph in standard mode and 14,000 cph in productivity priority mode.
Component Handling
Designed to handle a diverse array of components, the FUJI NXT H08 HEAD supports parts supplied via tape, trays, and stick feeders. This flexibility makes it suitable for various production needs.
SMT Spare Parts and Maintenance
To maintain the FUJI NXT H08 HEAD in optimal condition, regular maintenance is essential. Maintenance includes cleaning and replacement of worn components to ensure consistent performance and prolong the lifespan of the head. Using high-quality SMT spare parts is essential.
Applications
The FUJI NXT H08 HEAD is ideal for:
- High-mix production: Adapting to frequent product changes with its flexible design
- Standard SMT components: Handling a broad range of standard components with precision
- Various SMT lines: Meeting diverse production requirements with its versatile design
Advantages of the FUJI NXT H08 HEAD
- Versatility: Compatible with a wide range of component sizes and shapes
- Accuracy: Delivers precise placement, crucial for high-quality assembly
- Reliability: Built to FUJI's standards, ensuring consistent performance and longevity
Frequently Asked Questions
Q1: What is the primary advantage of the FUJI NXT H08 HEAD?
A: The primary advantage is its ability to handle a wide range of components at high speeds.
Q2: What kind of accuracy can be expected from the FUJI NXT H08 HEAD?
A: The FUJI NXT H08 HEAD is built to ensure the proper functioning of electronic circuits, with a placing accuracy for small chip parts of +/- 0.025 mm.
Q3: What types of machines are compatible with the FUJI NXT H08 HEAD?
A: The FUJI NXT H08 HEAD is designed for use with FUJI NXT series placement machines.
Q4: What range of component sizes can the FUJI NXT H08 HEAD handle?
A: The FUJI NXT H08 HEAD can handle components ranging from 0402 (01005") to 7.5 x 7.5 mm.
Q5: What is the H08 Nozzle for the Fuji NXT?
A: The Fuji NXT H08/H12 Nozzle 0.40mm, with 9.00mm disc.
