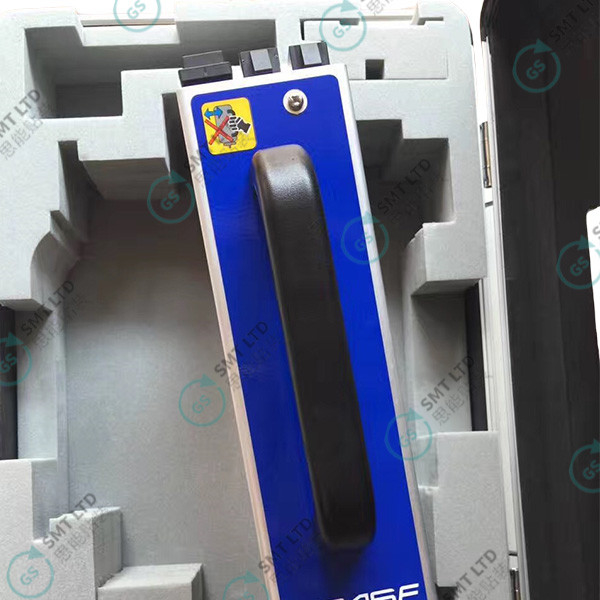

Original H04SF Fuji NXT Head 2UGKHE000100 For High Performance
| Brand Name |
FUJI |
| Product Name |
NXT H04SF head |
| Model Number |
2UGKHE000100 |
| Condition |
Original New/Used Original |
FUJI NXT H04SF HEAD: Precision Placement for Advanced SMT Assembly
The FUJI NXT H04SF HEAD is a placement head designed for FUJI's NXT series SMT (Surface Mount Technology) placement machines. It is known for accurately placing components, which is essential for efficient and reliable component placement in SMT assembly lines.
Key Features and Capabilities
- Compatible with FUJI NXT M3 III and M6 III modules
- Supports the smallest parts currently used in mass production
Precision and Accuracy
Achieves placing accuracy for small chip parts of +/- 0.025 mm through improved machine rigidity and refined servo control and vision recognition technology.
Throughput and Speed
The new H24G high-speed head achieves 37,500 cph (chips per hour) in productivity priority mode.
Component Handling
- Designed to handle a variety of components
- Can handle next-generation 0201 mm parts
- Supports smallest mass production parts (0402 mm, 01005")
Accessories and Options
Different nozzles can be used to accommodate various component sizes and shapes, enhancing the head's capabilities.
Applications
- High-volume manufacturing: Achieving high throughput in mass production environments
- Small component placement: Placing tiny components in compact devices
- Diverse SMT lines: Adapting to various production needs with its flexible design
Advantages of the FUJI NXT H04SF HEAD
- High Speed: Enables rapid placement of components, maximizing production throughput
- Precision: Ensures accurate placement, critical for the reliability of electronic devices
- Reliability: Ensuring consistent performance and longevity
Frequently Asked Questions
Q1: What is the placing accuracy of the FUJI NXT H04SF HEAD?
A: The FUJI NXT H04SF HEAD has achieved a placing accuracy for small chip parts of +/- 0.025 mm.
Q2: What parts can the FUJI NXT H04SF HEAD support?
A: The FUJI NXT H04SF HEAD can handle the smallest parts currently being used in mass production (0402 mm, 01005"). The machine can also handle the next generation of components heading for the market - 0201 mm parts.
Q3: What machines are compatible with the FUJI NXT H04SF HEAD?
A: The FUJI NXT H04SF HEAD is compatible with FUJI NXT M3 III and M6 III modules.
Q4: What is the new high speed head achieving?
A: The new H24G high-speed head achieves 37,500 cph (chips per hour) in productivity priority mode.
Q5: What are some of the options that can enhance the FUJI NXT H04SF HEAD?
A: Different nozzles can be used to accommodate various component sizes and shapes, enhancing the head's capabilities.
