Original Used FUJI NXT H02F HEAD UH02633 for SMT Production Line
Product Specifications
| Brand Name |
FUJI |
| Product Name |
NXT H02F Head |
| Model Number |
UH02633 |
| Condition |
Original New/Used Original |
FUJI H02F HEAD: High-Speed, High-Accuracy Placement for Enhanced SMT Production
The FUJI H02F HEAD is a high-performance placement solution designed for FUJI's NXT series of SMT (Surface Mount Technology) placement machines. This dual-nozzle head is engineered for high-speed and high-accuracy placement, making it a crucial asset in modern electronic assembly lines.
Key Features and Capabilities
The FUJI H02F HEAD is designed for versatility, supporting a wide range of components from 1608 (0603") up to 74mm x 74mm. With its two nozzles, it enhances throughput while maintaining precision. The H02F HEAD is suitable for a variety of applications, including standard SMT components and larger or odd-shaped parts.
Precision and Accuracy
The FUJI H02F HEAD delivers high placement accuracy, ensuring the proper functioning of electronic circuits. The accuracy is achieved through Fuji's refined servo control and vision recognition technology.
Throughput and Speed
Achieving a throughput of 6,700 chips per hour (CPH), the FUJI H02F HEAD maximizes production efficiency. Its high-speed operation ensures that assembly lines can meet the demands of high-volume manufacturing.
Component Handling
The FUJI H02F HEAD is designed to handle a variety of components, from small chips to larger components. Its dual-nozzle design allows for efficient handling and placement of a diverse range of parts.
Accessories and Options
To further enhance the capabilities of the FUJI H02F HEAD, various accessories and options are available:
- Nozzles: Different nozzle types accommodate various component sizes and shapes.
- Spare Parts: Availability of spare parts ensures minimal downtime.
Applications
The FUJI H02F HEAD is ideally suited for:
- High-volume manufacturing: Achieving high throughput in mass production environments.
- Diverse SMT lines: Adapting to various production needs with its flexible design.
- Placement of a wide range of components: Efficiently handling components from small chips to larger parts.
Advantages of the FUJI H02F HEAD
- High Speed: Enables rapid placement of components, maximizing production throughput.
- Precision: Ensures accurate placement, critical for the reliability of electronic devices.
- Versatility: Compatible with a wide range of component sizes and shapes.
Frequently Asked Questions
Q1: What is the primary advantage of the FUJI H02F HEAD?
A: The primary advantage of the FUJI H02F HEAD is its combination of high speed and high accuracy, making it ideal for enhanced SMT production.
Q2: What is the placement accuracy of the FUJI H02F HEAD?
A: The FUJI H02F HEAD offers 25um accuracy.
Q3: What types of machines are compatible with the FUJI H02F HEAD?
A: The FUJI H02F HEAD is designed for use with FUJI NXT series placement machines.
Q4: What range of component sizes can the FUJI H02F HEAD handle?
A: The FUJI H02F HEAD can handle components ranging from 1608 to 74mm x 74mm.
Q5: How does the dual-nozzle design of the FUJI H02F HEAD enhance production?
A: The dual-nozzle design allows for the simultaneous handling of two components, increasing throughput and overall production efficiency.

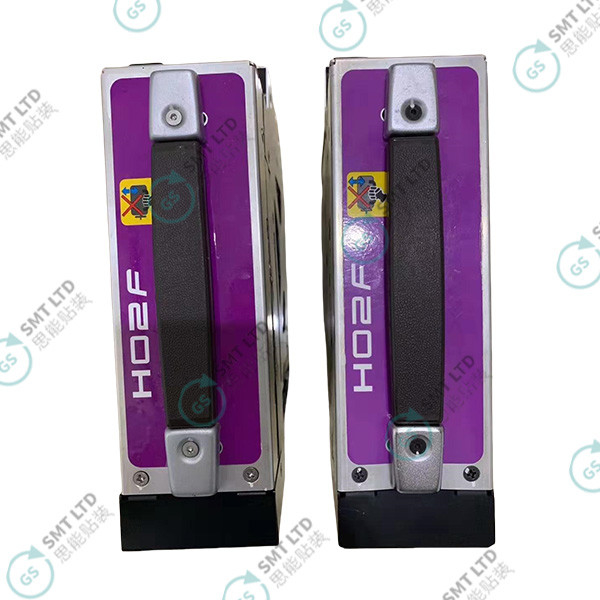

Product Images
