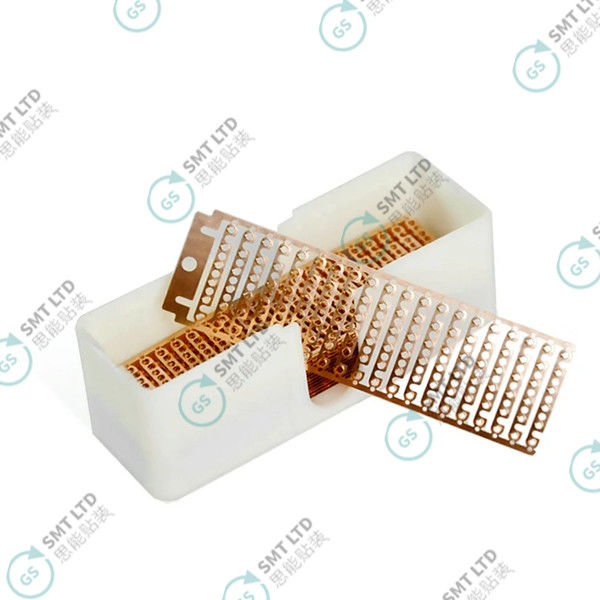

Name: Frame Style SMT Splice Clip Copper Buckle with Durable Copper Construction and 20 Clips per Frame
Brand: Global Soul Limited
SKU: GSM0700
Availability: InStock

Home > Products > SMT Splicing Tape >

Frame Style SMT Splice Clip Copper Buckle with Durable Copper Construction and 20 Clips per Frame

smt splice clip copper

copper smt splice tape

8mm smt splice clip

Place of Origin:

China

Brand Name:

Model Number:

GSM0700

Document:

Product Brochure PDF

Request A Quote

Frame Style SMT Splice Clip Copper Buckle with Durable Copper Construction and 20 Clips per Frame

Product Details

Brand Name:

Model Number:

GSM0700

Product Name:

SMT Splice Clip

Dimensions (pc):

25.8mm X 86.45mm

Package:

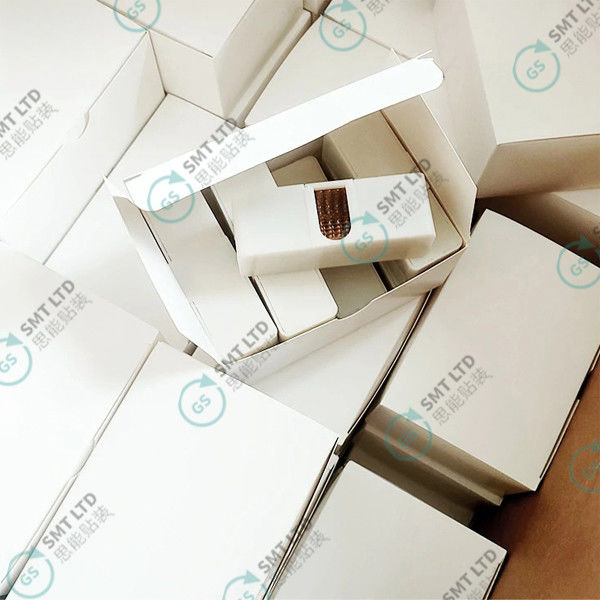

20 Clips/ Frame,25 Frames/box

Thickness:

0. Lmm

Material:

Copper

Certification:

RoHS

Application:

SMT Process

Customization:

Support

Highlight:

smt splice clip copper

copper smt splice tape

8mm smt splice clip

Payment & Shipping Terms

Minimum Order Quantity

1 box

Price

USD+negotiable+box

Packaging Details

30mm*90mm

Delivery Time

1-7 days

Payment Terms

T/T

Supply Ability

1+box+per days

60g Gram Weight Steel Mesh Wiping Paper with High Efficiency Water Absorption and Anti-Static for SMT Stencil Cleaning

Get Best Price

Video

60g Gram Weight Steel Mesh Wiping Paper with High Efficiency Water Absorption and Anti-Static for SMT Cleaning

Get Best Price

Ultra-Fine Fiber Wiping Roll Cloth 180g with Ultrasonic Edge Sealing and Polyester + Polyamide Composite for Dust-Free Cleaning

Get Best Price

Video

OEM EDM Durable Skin Friendly High Absorption SMT Stencil Clean Roll for SMT Process

Get Best Price

Contact Now

Product Description

Frame Style SMT Splice Clip Copper Buckle GSM0700

The GSM0700 Splice Clip is expertly engineered to streamline SMT splicing operations. Featuring a bandolier design with 20 clips per frame, this versatile splice clip accommodates both paper and plastic carrier tapes of all widths. Fully compatible with the GSMTL60 stapler-style splice tool, it provides a reliable and efficient solution for your production needs.

Applications

Individual Brass Splice Shim
Specifically designed for use with the GSMTL60 splice tool, ensuring perfect fit and efficient operation.

Versatile Splicing
Compatible with splice tapes of any size, allowing quick and secure joining of SMT carrier tapes across all widths.

Key Advantages

Sprocket Wheel Compatibility: Clip holes designed to pass through feeder sprocket wheels for smooth, uninterrupted operation

Durable Copper Construction: High-quality copper material provides exceptional toughness and durability for secure connections

Efficient Reloading: 20 clips per frame minimizes frequent reloading, enabling continuous and efficient splicing

Secure Connection: Specially engineered to ensure reliable connections, particularly for larger carrier tapes

Operation Instructions

Pull the slider and gently place a GSM0700 clip frame inside the handle rail

Press the button and slowly advance the slider forward until the frame hits the pins

Center both carrier tapes (cover tape up) on the pins and secure them with the clamps

Crimp the handle to connect the carrier tapes

Add a splice tape strip to the cover tape and press firmly to complete the splice

Frame Style SMT Splice Clip Copper Buckle GSM0700 | GSSMT, SMT splice tape, SMT splicing machine, SMT splice connectors, SMT splicing equipment, SMT tape splicing tools, SMT splice tool kit, SMT splicing process, SMT splice tool manufacturers, SMT tape splicing technique, SMT splice repair tools, SMT splicing solutions, Automatic SMT splice tools, Manual SMT splice tools, SMT splice tool application, SMT splice tape application, SMT tape jointing tools, High-speed SMT splicing tools, SMT splice tool comparison, SMT splice tape handling, Best SMT splice tools
