Acrylic Adhesive PET SMT Single Splice Tape Customizable for SMT Process

Acrylic Adhesive PET SMT Single Splice Tape Customizable for SMT Process

acrylic smt splice tape

acrylic smt double splice tape

adhesive smt splice tape

Place of Origin:

China

Brand Name:

GS

Model Number:

GSM0608/GSM0612/GSM0616/GSM0624

Document:

Product Brochure PDF

Contact Us
Request A Quote
Acrylic Adhesive PET SMT Single Splice Tape Customizable for SMT Process Acrylic Adhesive PET SMT Single Splice Tape Customizable for SMT Process Acrylic Adhesive PET SMT Single Splice Tape Customizable for SMT Process
Product Details
Brand Name:
GS
Material:
PET
Model Number:
GSM0608/GSM0612/GSM0616/GSM0624
Product Name:
Single Splice Tape Roll
Application:
SMT Process
Customization:
Support
Highlight:

acrylic smt splice tape

,

acrylic smt double splice tape

,

adhesive smt splice tape

Payment & Shipping Terms
Minimum Order Quantity
1 roll
Price
USD+negotiable+roll
Packaging Details
16*36*8mm
Delivery Time
1-7 days
Payment Terms
T/T
Supply Ability
1+roll+per days
RELATED PRODUCTS
Good price 60g Gram Weight Steel Mesh Wiping Paper with High Efficiency Water Absorption and Anti-Static for SMT Stencil Cleaning online Video

60g Gram Weight Steel Mesh Wiping Paper with High Efficiency Water Absorption and Anti-Static for SMT Stencil Cleaning

Get Best Price
Good price 60g Gram Weight Steel Mesh Wiping Paper with High Efficiency Water Absorption and Anti-Static for SMT Cleaning online Video

60g Gram Weight Steel Mesh Wiping Paper with High Efficiency Water Absorption and Anti-Static for SMT Cleaning

Get Best Price
Good price Ultra-Fine Fiber Wiping Roll Cloth 180g with Ultrasonic Edge Sealing and Polyester + Polyamide Composite for Dust-Free Cleaning online

Ultra-Fine Fiber Wiping Roll Cloth 180g with Ultrasonic Edge Sealing and Polyester + Polyamide Composite for Dust-Free Cleaning

Get Best Price
Good price OEM EDM Durable Skin Friendly High Absorption SMT Stencil Clean Roll for SMT Process online Video

OEM EDM Durable Skin Friendly High Absorption SMT Stencil Clean Roll for SMT Process

Get Best Price
CONTACT US
Contact Now
Product Description

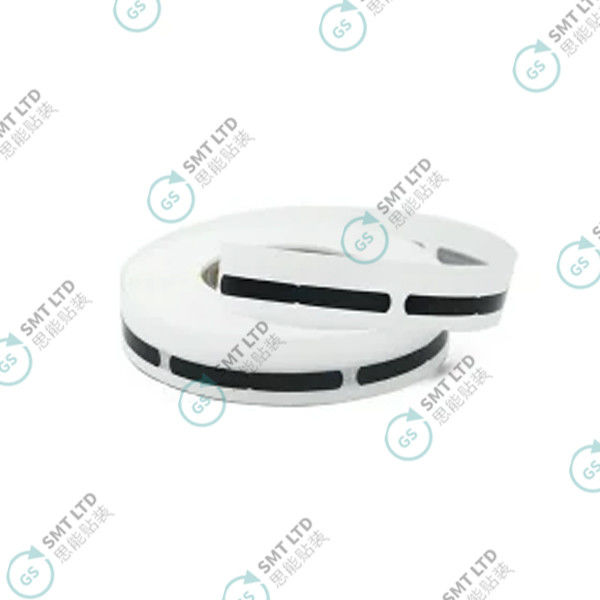

GSM06A Series Acrylic Adhesive SMT Single Splice Tape
GSM06A Series single splice tape is specifically designed for jointing carrier tapes in SMT assembly processes. This high-performance adhesive tape features superior adhesion properties and is compatible with Siemens and Fuji SMT equipment.
Applications and Specifications

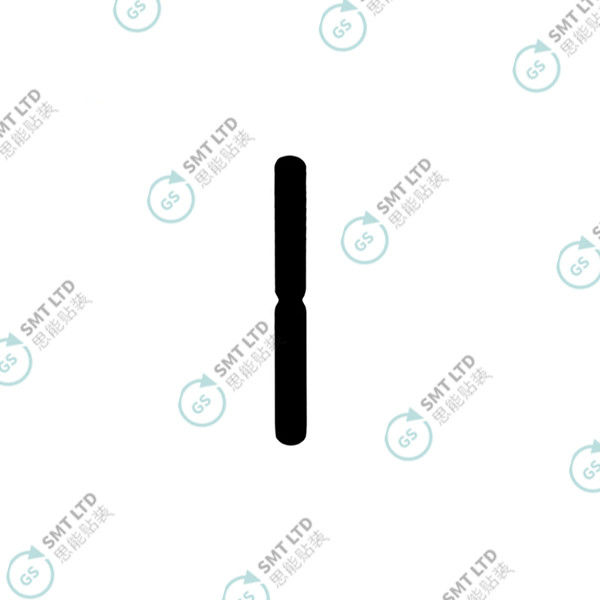

  • Single strips of PET tape on rolls for joining SMT carrier tapes
  • Enhanced connection strength when used with splice tools and clips, particularly for larger carrier tapes
  • Available in widths from 32mm to 88mm upon request
  • OEM/EDM customization options available
Step-by-Step Usage Instructions
  1. Cut Carrier Tapes: Use precision splice cutting tools (GSMTL20/GSMTL30/GSMTL40) for accurate tape cutting
  2. Position Splice Clip: Place splice clip (teeth up) on the splice tool's placement pins
  3. Center Carrier Tapes: Align both carrier tapes (cover tape up) on pins and secure with clamps
  4. Crimp Connection: Crimp the splice tool handle to connect carrier tapes securely
  5. Remove Release Liner: Expose adhesive side by removing the release liner
  6. Apply Tape Strip: Press single strip of splice tape firmly onto cover tape to complete the bond
Acrylic Adhesive PET SMT Single Splice Tape Customizable for SMT Process 0
SMT splice tape, SMT splicing solutions, SMT splice tape for pick-and-place machines, High-quality SMT splice tape, SMT splice tape for Siemens equipment, SMT splice tape for Fuji machines, Acrylic adhesive splice tape, SMT carrier tape joining solutions, Durable SMT splice tape, SMT assembly consumables
