Product Description

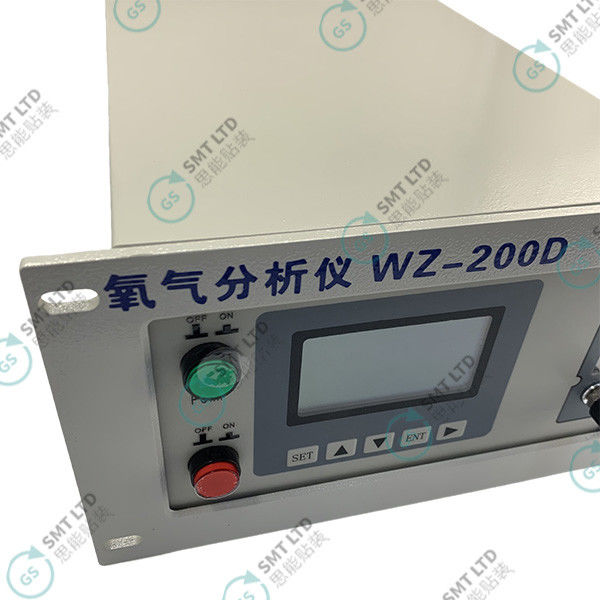

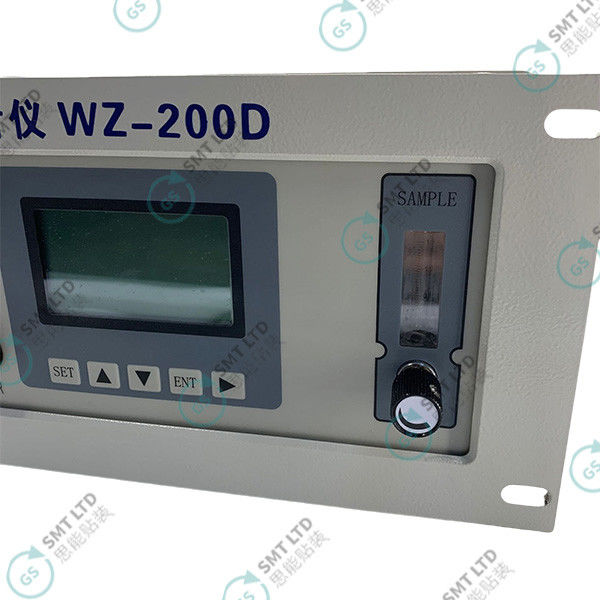

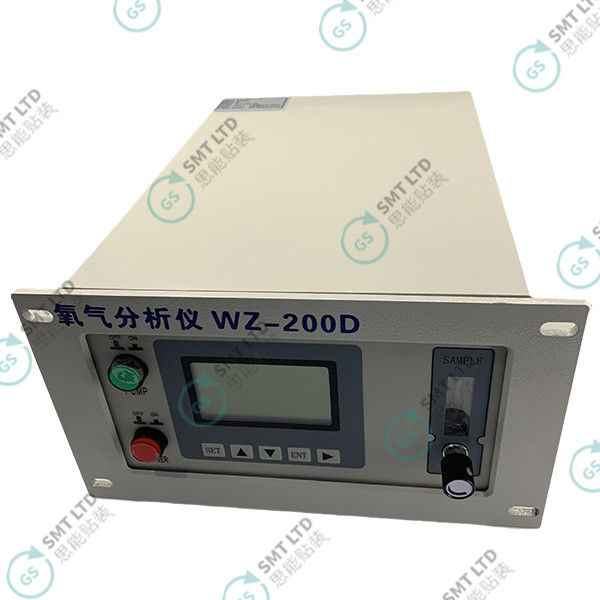

SMT Reflow Oxygen Analyzer WZ-200D With Double Zirconia Sensor

Advanced Oxygen Content Analysis for SMT Applications

The WZ-200D Reflow Oxygen Analyzer represents cutting-edge technology for precise oxygen measurement in surface mount technology processes. Featuring imported double zirconia sensors, this analyzer delivers exceptional accuracy and reliability for industrial applications.

Key Product Features

Imported double zirconia sensor for high measurement accuracy and fast response
Extended calibration cycle with long operational lifespan
Capable of continuous operation in air without sensor degradation
Rapid response time with measurement capability down to 1ppm
Wide-range AC power supply for versatile application compatibility
Single-point calibration ensures accuracy across entire measurement range
Built-in automatic temperature compensation minimizes environmental impact
Operates without reference gas, unaffected by ambient oxygen concentration
Intuitive user interface with friendly menu navigation
Bidirectional communication capability with host computer systems
Integrated imported sampling pump with software-configurable operation modes

Technical Specifications

Parameter	Specification
Measurement Principle	Zirconia
Display	128*64 dot matrix LCD
Measuring Range	0~10/100/1000ppm/1.00%/25.00%
Resolution	1ppm
Permissible Error	0-1000ppm: ±1% FS 0-100ppm: ±2% FS 0-10ppm: ±5% FS
Repeatability	≤±1%
Response Time	T≤30S
Analog Output	4-20mA DC (non-isolated, load <500Ω) 0~10V DC (non-isolated, load >10kΩ)
Alarm Output	1 programmable dry contact (220VAC/2A max)
Communication Interface	RS232 (default) or RS485
Power Supply	AC 85-264V, 50/60Hz
Sample Temperature	-10°C to +50°C
Sample Gas Flow Rate	400-600ml/min
Sampling Method	Extraction type, ejection type
Gas Pressure	Micro positive pressure, micro negative pressure, or normal pressure
Background Gas	N₂, inert gases, and mixed gases
Dimensions	258mm * 130mm * 300mm (WHD)
Opening Size	238mm * 132mm (W*H)
Service Life	>12 months (under normal operating conditions)
Gas Connection	NPT 1/8 internal thread
Installation	Embedded installation
