Name: Customized Horizontal Feeder Model K (GS-AAD2208)
Brand: Global Soul Limited
SKU: GS-AAD2208
Availability: InStock

Home > products > SMT Feeder >

Customized Horizontal Feeder Model K (GS-AAD2208)

Place of Origin:

China

Brand Name:

Model Number:

GS-AAD2208

Request A Quote

Product Details

Model:

GS-AAD2208

Overall Dimensions (length * Width * Height Unit: Mm):

570*127*150mm

Weight:

14KG

Working Voltage:

DC 24V

Maximum Current:

Feeding Speed:

2.5-3s/Pcs

Drive Mode:

Pure Electric

Operation Panel:

0.96-inch TFT Color Screen, 80*160 Pixels

Material Lifting Error:

±0.4mm

Applicable Tape Width:

63-90 Mm

Payment & Shipping Terms

Minimum Order Quantity

1 PCS

Price

USD+negotiable+pcs

Packaging Details

700*300*300MM

Delivery Time

1-7 days

Payment Terms

T/T

Supply Ability

1+pcs+per days

Customized Horizontal Feeder Model K (GS-AAD2208)

Get Best Price

Customized New Horizontal Feeder K Model (GS-AAD2412)

Get Best Price

Simple Pallet (GS-JAQ2106)

Get Best Price

Pallet Cabinet GS-JAT2501(Single Track)

Get Best Price

86-0755-27678283

Contact Now

Product Description

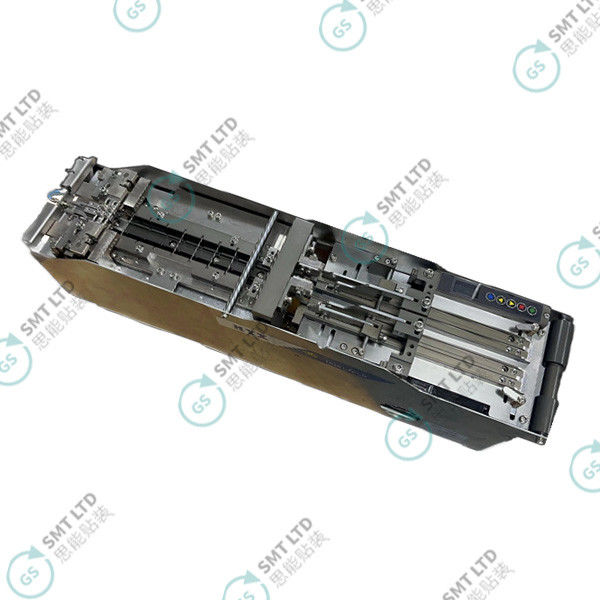

K Horizontal Feeder (GS-AAD2208)

[Customized Version]

The horizontal feeder is an electronic component supply device that keeps a certain interval and feeds out the horizontal tape-packed electronic components one by one at the prescribed time, shapes them and cuts the lead wires, and supplies them to the insertion machine.

Customized Horizontal Feeder Model K (GS-AAD2208) 0

Applicable specifications of woven tape materials:

Customized Horizontal Feeder Model K (GS-AAD2208) 1

Customized Horizontal Feeder Model K (GS-AAD2208) 2

If there are special material dimensions, you can contact our company for consultation and to provide solutions and customize exclusive feeders.
