Name: Vertical Feeder (GS-RDD2105)
Brand: Global Soul Limited
SKU: GS-RDD2105
Availability: InStock

Home > products > SMT Feeder >

Vertical Feeder (GS-RDD2105)

Place of Origin:

China

Brand Name:

Model Number:

GS-RDD2105

Document:

Product Brochure PDF

Request A Quote

Product Details

Model:

GS-RDD2105

External Dimensions (length * Width * Height）:

750*68*144(110)mm

Weight:

11KG

Working Voltage:

DC 24V

Gas Source Requirements:

Maximum Current:

Feeding Speed:

0.6-2s/Pcs

Drive Mode:

Pure Electric

Operation Panel:

0.96-inch TFT Color Screen 80*160 Pixels

Error In The Length Of The Material Cutting Feet:

±0.2mm

Applicable To The Hole Spacing Of The Tape:

12.7mm/15mm[Parts Need To Be Replaced]

Function Of Cutting Waste Tape:

Have

Bending Function:

Optional Separately[The Bending Function Can Be Customized According To The Material]

The Number Of Times The Cutter Is Used:

≥1 Million

Payment & Shipping Terms

Minimum Order Quantity

1 PCS

Price

USD+negotiable+pcs

Packaging Details

900*85*145mm

Delivery Time

1-7 days

Payment Terms

T/T

Supply Ability

1+pcs+per days

KLJ-MCA00-100 Yamaha ZS 104mm Feeder

Get Best Price

YAMAHA Mounter YS Feeder Rack Stainless Steel YS12/10/20/SS Feeder Car Placement Car

Get Best Price

YAMAAH SMT Machine YSM10 YS24 Smt Feeder Rack Electric Feeder Car Feeder Storage Car Placement Car

Get Best Price

SMT Machine Samsung Hanwha SM Electric / Pneumatic Feeder SMT Feeder Rack Placing

Get Best Price

86-0755-27678283

Contact Now

Product Description

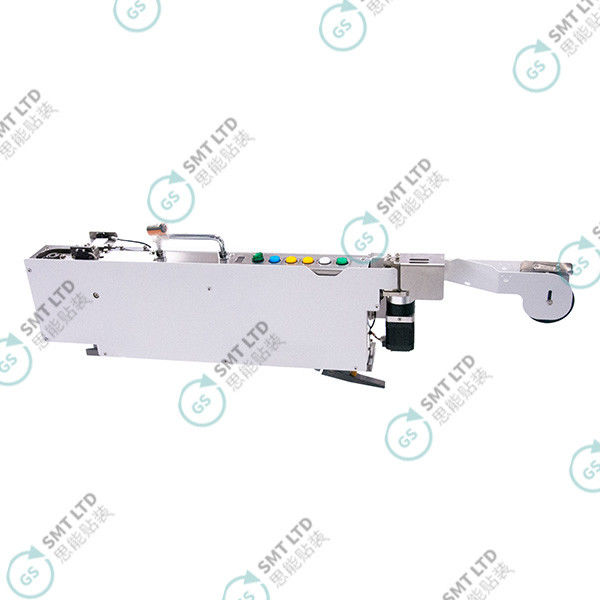

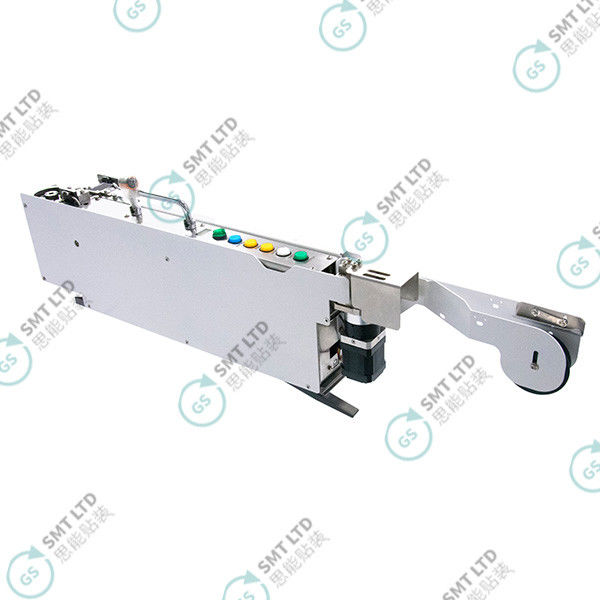

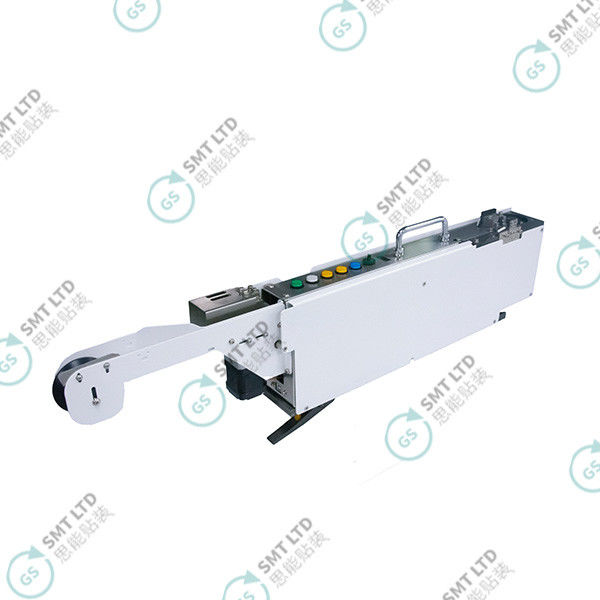

Vertical Feeder (GS-RDD2105)

The vertical feeder is an electronic component supply device that keeps a certain interval and sends out the electronic components of the vertical tape packaging one by one at a specified time, cuts the lead wires, and supplies them to the insertion machine.

Vertical Feeder (GS-RDD2105) 0

Vertical Feeder (GS-RDD2105) 1

Detail display

Vertical Feeder (GS-RDD2105) 2

Vertical Feeder (GS-RDD2105) 3

Vertical Feeder (GS-RDD2105) 4

Vertical Feeder (GS-RDD2105) 5

If there are special material dimensions, you can contact our company for consultation and to provide solutions and customize exclusive feeders.
