Name: 70mm radial feeder (GS-RAD2107) [without cutter]
Brand: Global Soul Limited
SKU: GS-RAD2107
Availability: InStock

Home > products > SMT Feeder >

70mm radial feeder (GS-RAD2107) [without cutter]

Place of Origin:

China

Brand Name:

Model Number:

GS-RAD2107

Request A Quote

Product Details

Model:

GS-RAD2107

External Dimensions (length * Width * Height）:

750*68*144(110)mm(The Height From The Bottom To The Feeding Port: 110cm Height At The Highest Point (from The Bottom To The Handle) : 144mm)

Weight:

8KG

Working Voltage:

DC 24V

Gas Source Requirements:

Maximum Current:

Feeding Speed:

0.6-2s/Pcs

Drive Mode:

Pure Electric

Operation Panel:

0.96-inch TFT Color Screen 80*160 Pixels

Error In The Length Of The Material Cutting Feet:

±0.2mm

Applicable To The Hole Spacing Of The Tape:

12.7mm/15mm(Parts Need To Be Replaced)

Function Of Cutting Waste Tape:

Optional(GS-RAD2201: With A Cutter GS-RAD2107: No Cutter)

Bending Function:

Optional Separately(The Bending Function Can Be Customized According To The Material)

The Number Of Times The Cutter Is Used:

≥1 Million

Payment & Shipping Terms

Minimum Order Quantity

1 PCS

Price

USD+negotiable+pcs

Packaging Details

900*80*180mm

Delivery Time

1-7 days

Payment Terms

T/T

Supply Ability

1+pcs+per days

Large Electrolytic Capacitor Feeder (GS-RAZ2304)

Get Best Price

Tape Adjustment Feeder(GS-RAZ2211)

Get Best Price

70mm Vertical Feeder (GS-RAD2201） [With Cutter]

Get Best Price

70mm radial feeder (GS-RAD2107) [without cutter]

Get Best Price

86-0755-27678283

Contact Now

Product Description

70mm Radial Feeder (GS-RAD2107) [Without Cutter]

The radial feeder is an electronic component supply device that keeps a certain interval and sends out the electronic components of the radial tape packaging one by one at a specified time, cuts the lead wires, and supplies them to the insertion machine

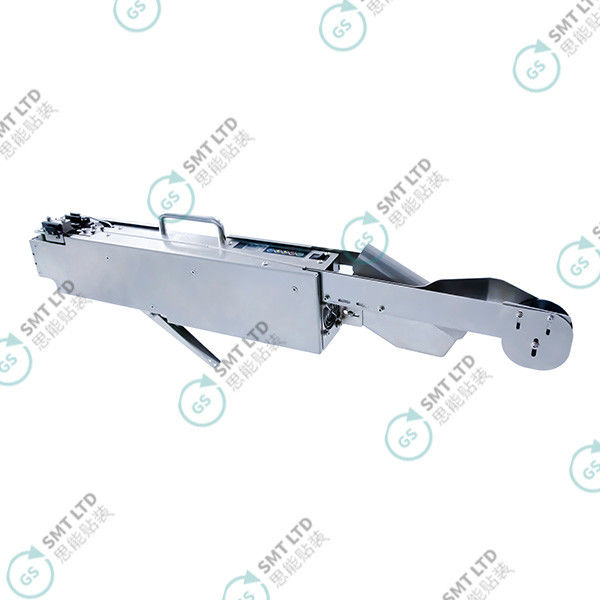

70mm radial feeder (GS-RAD2107) [without cutter] 0

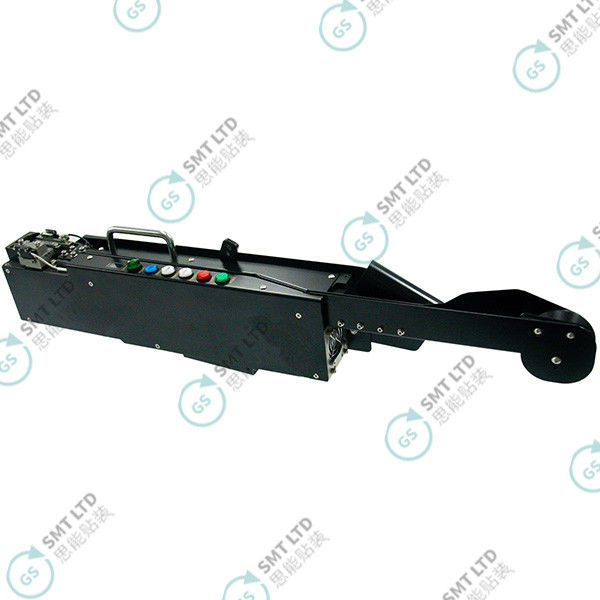

70mm radial feeder (GS-RAD2107) [without cutter] 1

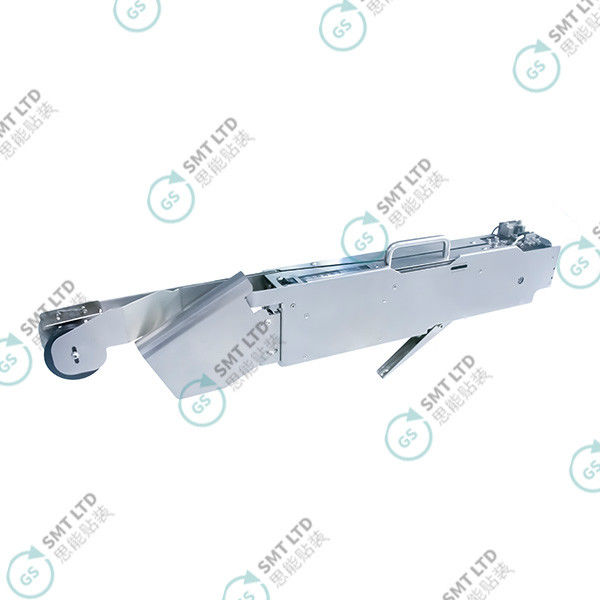

70mm radial feeder (GS-RAD2107) [without cutter] 2

70mm radial feeder (GS-RAD2107) [without cutter] 3

70mm radial feeder (GS-RAD2107) [without cutter] 4

70mm radial feeder (GS-RAD2107) [without cutter] 5

If there are special material dimensions, you can contact our company for consultation and to provide solutions and customize exclusive feeders.
